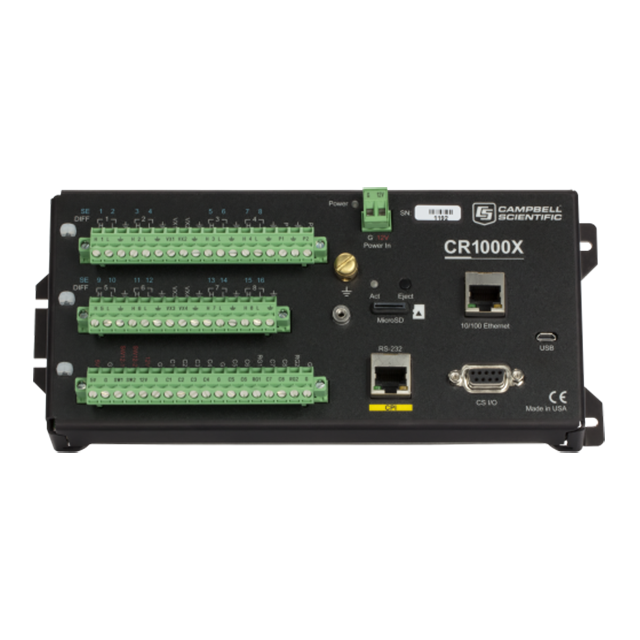

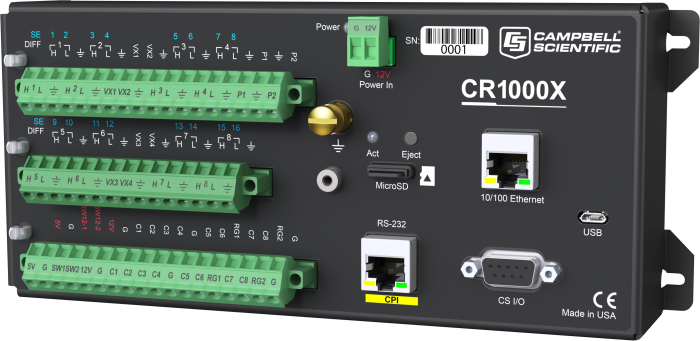

CR1000X Measurement and Control Datalogger Description：

User's Manual Getting Started Guide

The CR1000X is our flagship data logger that provides measurement and control for a wide variety of applications. Its reliability and ruggedness make it an excellent choice for remote environmental applications, including weather stations, mesonet systems, wind profiling, air quality monitoring, hydrological systems, water quality monitoring, and hydrometeorological stations.

The CR1000X is a low-powered device that measures sensors, drives direct communication and telecommunications, analyzes data, controls external devices, and stores data and programs in onboard, nonvolatile storage. The electronics are RF-shielded by a unique sealed, stainless-steel canister. A battery-backed clock assures accurate timekeeping. The onboard, BASIC-like programming language, common to all contemporary Campbell Scientific data loggers, supports data processing and analysis routines.

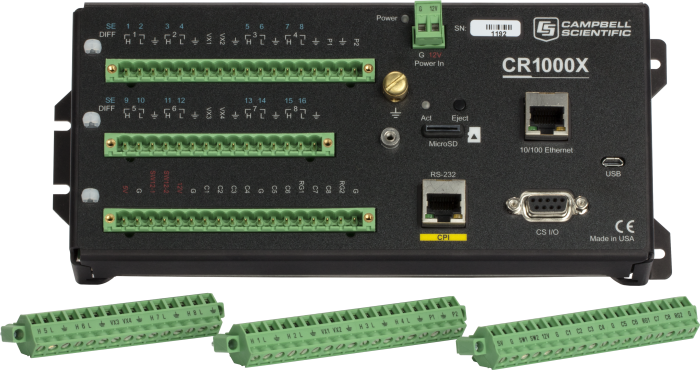

The CR1000X is a low-powered device designed to measure sensors, drive direct communication and telecommunications, analyze data, control external devices, and store data and programs in on-board, non-volatile storage. The electronics are RF-shielded and glitch-protected by a unique sealed, stainless-steel canister. A battery-backed clock assures accurate timekeeping. The on-board, BASIC-like programming language—common to all Campbell Scientific data loggers—supports data processing and analysis routines.The CR1000X wiring panel includes two switchable 12 V terminals, analog grounds dispersed among 16 analog terminals, and unpluggable terminal blocks for quick deployment.

CR1000X Measurement and Control Datalogger Benefits and Features：

Operational in extreme environments with a standard operating range of -40° to +70°C and an extended operating range of -55° to +85°C

Connects directly to a computer's USB port

Captures quickly changing data values with fast analog measurement capabilities (300+ Hz)

Differentiates even slight changes in data values with higher resolutions measurements (24 bit Adc)

Includes two non-isolated current input channels for directly connecting sensors with 0-to-20 mA or 4-to-20 mA current outputs

Contains an onboard CPI port for hosting Campbell high-speed sensors and distributed modules (CDM)

Directly connects to Ethernet

Includes microSD card drive for extended memory requirements

Provides simple serial sensor integration and measurement with SDI-12, RS-232, and/or RS-485

Supports full PakBus networking

Includes embedded web page for direct connection via web browser

CR1000X Measurement and Control Datalogger Specifications：
