Datasheet Outline Drawing

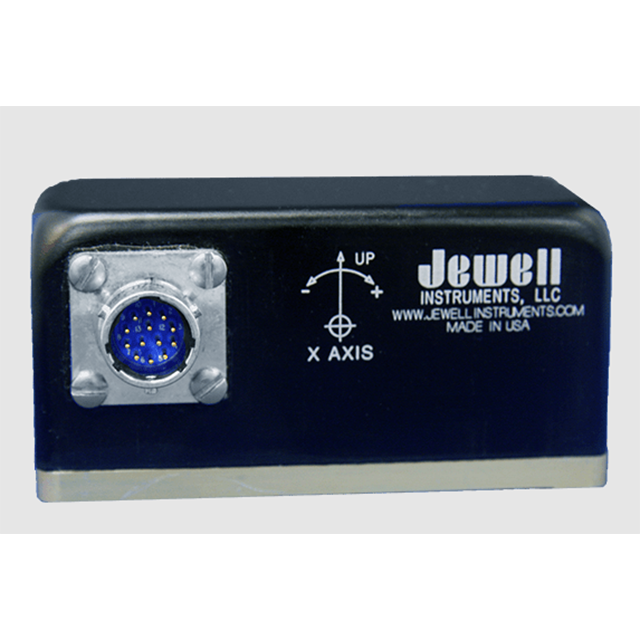

The Jewell LCF-2530 Series is a dual axis version of the rugged, high accuracy LCF Series. The design of the LCF-2530 was optimized to provide the high suspension, servo technology in a small and convenient package for applications requiring a a compact dual axis solution.
Specifications
| Features |
? ± 0.5g to ± 5.0g Full Range ? Filtering 5-100 Hz Bandwidth Available ? Exceptional Bias & Scale Factor Repeatability ? High Level ± 5 Vdc Output ? 1,000g Shock Capability ? Built In Temperature Sensor Available ? Fluid Damped Pin Out (Options: C-connector, P-Pin) ? High Accuracy Dual Axis in Small Package ? Superior Bias Stability ? Low EMI |
| Applications |
? Railcar Acceleration/Deceleration Control ? Train Performance Testing ? Active Damping ? Rail Car Harshness (NVH) ? Manual Rail Measurement |
| Input Range (g) | ±0.25 | ±0.5 | ±1.0 | ±2.0 | ±5.0 |
| Full Range Output(VDC ±1%)1 | ±5.00 | ±5.00 | ±5.00 | ±5.00 | ±5.00 |
| Non-linearity (%FRO max)2 | 0.02 | 0.02 | 0.02 | 0.05 | 0.10 |
| Scale Factor (Volts/g nominal) | 20.0 | 10.0 | 5.0 | 2.5 | 1.0 |
| Scale Factor Temperature Sensitivity (PPM/°C maximum) | 100 | 60 | 60 | 100 | 100 |
| Bandwidth (-3dB Hz nominal) | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 |
| Output Axis Misalignment (° maximum) | 0.50 | 1.00 | 1.00 | 1.00 | 1.00 |
| Pendulous Axis Misalignment (° maximum) | 0.50 | 1.00 | 1.00 | 1.00 | 1.00 |
| Bias (g range) | ±0.001 | ±0.002 | ±0.004 | ±0.005 | ±0.005 |
| Bias Temperature Sensitivity (V/°C maximum) | 0.001 | 0.0005 | 0.0003 | 0.0003 | 0.0003 |
| Resolution & Threshold (μg maximum) | 1 | 1 | 1 | 1 | 1 |
| Number of Axes | 2 |
| Input Voltage Range (Vdc) | ±12 to ±18 |
| Input Current (mA max) | 50 |
| Output Impedance (Ω nom) | 100 |
| Noise (Vrms max) | 0.002 |
| Operating Temperature Range | -40°C to +80 °C |
| Storage Temperature Range | -60 °C to +90 °C |
| Vibration (grms) | 20 |
| Shock | 1000 g, 1 msec, ? sine |
| Seal | MIL-STD-202, Method 112, IP65 |
