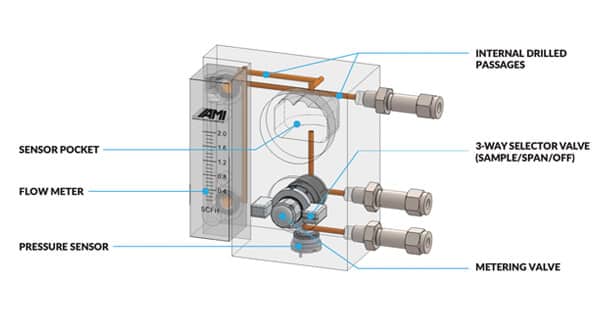

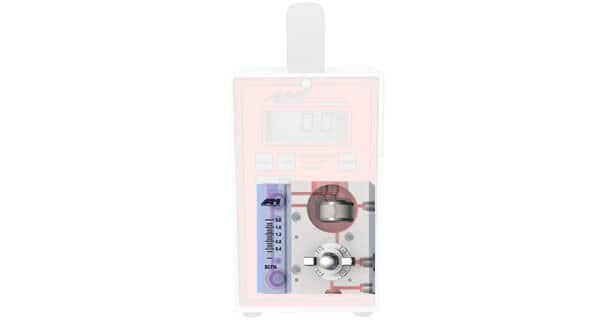

ELIMINATOR CELL BLOCK ADVANTAGE

Compact and Leak Free Design - This unique sample system approach virtually eliminates all potential leak paths while optimizing flow efficiencies. The sample system and sensor pocket are machined directly into a solid metallic block and interconnected with precision-drilled, intersecting gas passages – eliminating the need to use long lengths of tubing and leak-prone compression fittings. The uniquely engineered metering valve and flow meter are integrated directly into this compact block.

ACCURATE & COST-EFFECTIVE MEASUREMENTS

Stain tubes can detect the presence of H2S, but differences in technique and the subjective reading method can lead to unacceptable errors as high as ± 20%. The ongoing cost of single-use tubes add up over months of regular sampling. The one-time investment in a MODEL 3000RS provides an accurate and unambiguous tool for quickly measuring ppm levels of H2S and verifying compliance with stringent tariff limits.

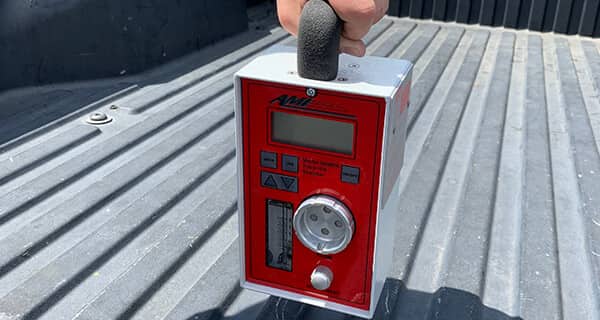

TRULY PORTABLE AND DESIGNED FOR THE FIELD

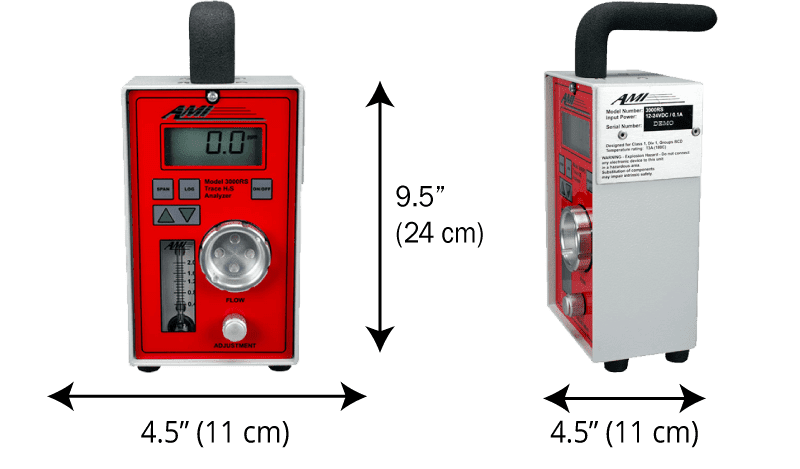

At just 5 lbs. (2.3 kg), the MODEL 3000RS is the smallest, lightest, and most accurate portable Trace H2S Analyzer in the industry. The MODEL 3000RS is a great choice for quick and easy spot-checking of inlet/outlet gas at H2S treatment facilities. When extended monitoring is required, operators can utilize the onboard data logger to record a time-stamped record of H2S levels and temperature at a user programmable interval. The long-life rechargeable battery makes unattended operation possible when trying to track down small, intermittent leaks.
