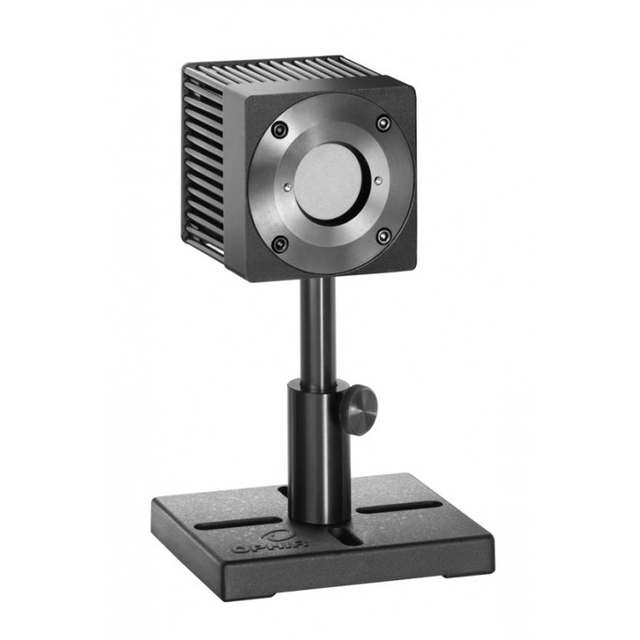

The BeamTrack series 50(150)A-BB-26-PPS laser measurement sensor measures laser beam size and position well as power and energy. It has a 26mm aperture and can measure beam size to 5% accuracy and position to 0.1mm accuracy. It measures power from 40mW to 50W continuously and to 150W intermittently.It can measure energy from 20mJ to 100J.The sensor comes with a 1.5m cable that connects it to the electronic box, and another 0.5m cable that connects the box to a Meter or PC interface.

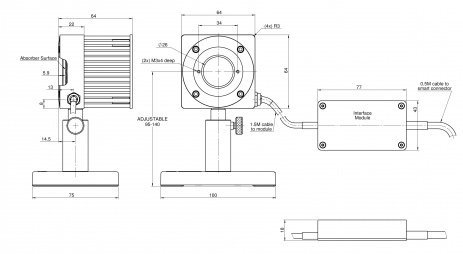

50(150)A-BB-26-PPS Drawing
| Absorber Type | Broadband |
| Aperture | ?26mm |
| Spectral Range | 0.19-11μm |
| Power Range | 40mW-150W |
| Energy Range | 20mJ-100J |
| Backscattered Power | N.A. |
| Dimensions | 64 L x 64 W x 64 D (mm) |
| Max Pulse Energy | 100J |
| Max Average Power Density | 12kW/cm2 |
| Response Time | 1.5 s |
| Max Energy Density (for <100ns) | 0.3J/cm2 |
| Max Energy Density (for 2ms) | 10J/cm2 |
| Max Average Power | 150W |
| BeamTrack Functions | Power/Energy/Position/Size |
