CTC's Dual Output Vibration & Temperature Sensors and Biaxial Sensors feature a 3 Pin MIL Connector compatible with our 3 Socket MIL connectors below. At CTC, we offer the widest variety of sensor connectors on the market in order to meet your application’s specific needs for chemical compatibility/corrosion resistance, temperature resistance, and ingress protection. Permanent monitoring connectors feature materials that resist caustic washdowns and harsh environments, while our portable measurement connectors feature custom rubber strain reliefs to help prevent premature cable failure at the intersection of the connector and cable. Our molded connectors are made with CTC’s proprietary injection molding process, which has allowed CTC to create some of the most durable cordsets on the market.

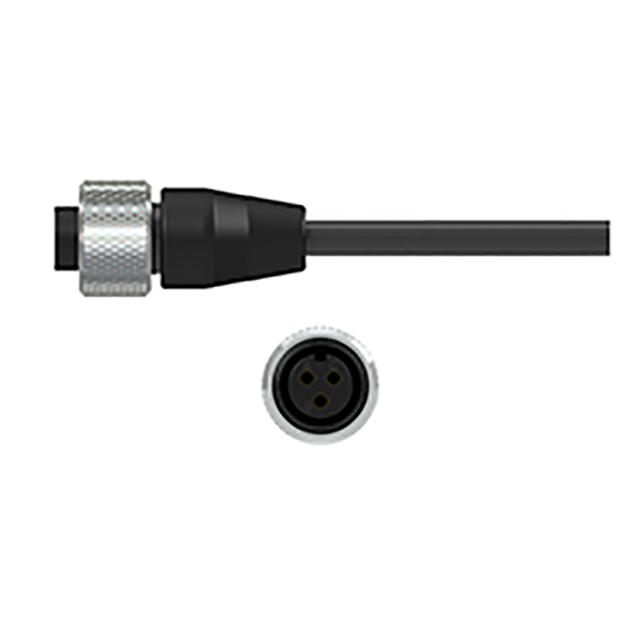

A Series: CTC’s A Series is our most popular connector style. These 3 Pin MIL-Style connectors are made with CTC’s propriety injection molding process and are available in polycarbonate, nylon, PPS, or polyurethane. They feature a 316L stainless steel locking nut for added durability and corrosion resistance and can be molded onto standard cabling as well as armor-jacketed cabling.
B Series: CTC’s B Series is a Silicone Seal Tight Boot connector. This connector can achieve a maximum temperature of 350 °F when a PPS insert is selected and is ideal for certain caustic environments where silicone is a preferred material.
V Series: CTC’s V Series Viton® Seal Tight Boot is our most durable connector for ingress protection and chemical resistance. Viton® has excellent resistance to many chemicals, including chlorine. This connector also creates an IP69-rated seal with the sensor, so it is a great alternative to integral cable sensors.
A3ADatasheet
3 Socket MIL-Style, Polycarbonate Molded Connector, Permanent Mount, 250 °F (121 °C) Max Temp
A3ABDatasheet
3 Socket MIL-Style, Polycarbonate Molded Connector, Permanent Mount, 250 °F (121 °C) Max Temp
A3AGDatasheet
3 Socket MIL-Style Connector with Grounded Backshell, Polycarbonate Molded, Permanent Measurements, 250 °F (121 °C) Max Temp
A3LDatasheet
3 Socket MIL-Style, Polycarbonate Molded Hydraulic Hose Connector, Permanent Mount, 212 °F (100 °C) Max Temp
A3NDatasheet
3 Socket MIL-Style, Nylon Molded Connector, Permanent Mount, 250 °F (121 °C) Max Temp
A3NGDatasheet
3 Socket MIL-Style Connector with Grounded Backshell, Nylon Molded, Permanent Measurements, 250 °F (121 °C) Max Temp
A3P Datasheet
3 Socket MIL-Style, Polyurethane Molded Connector, Permanent Mount, 250 °F (121 °C) Max Temp
A3RDatasheet
High Temperature 3 Socket MIL-Style, PPS Molded Connector, Permanent Mount, 392 °F (200 °C) Max Temp
A3SDatasheet
High Temperature 3 Socket MIL-Style, PPS Molded Connector & Locking Ring, No Exposed Metal, Permanent Mount, 392 °F (200 °C) Max Temp
B3ADatasheet
3 Socket MIL-Style Seal-Tight Silicone Boot Connector with Polycarbonate Insert, Permanent Mount, 250 °F (121 °C) Max Temp
B3NDatasheet
3 Socket MIL-Style Seal-Tight Silicone Boot Connector with Nylon Insert, Permanent Mount, 250 °F (121 °C) Max Temp
B3RDatasheet
High Temperature 3 Socket MIL-Style Seal-Tight Silicone Boot Connector with PPS Insert, Permanent Mount, 350 °F (177 °C) Max Temp
D3HDatasheet
3 Socket MIL Connector with Backshell Cable Strain Relief, 250 °F (121 °C) Max Temp
D3QDatasheet
3 Socket MIL-Spec Connector with Backshell, For Class I, Division 2 Locations, Permanent Mount, 250 °F (121 °C) Max Temp
V3NDatasheet
3 Socket MIL-Style Seal-Tight Viton® Boot Connector with Nylon Insert, Permanent Mount, 250 °F (121 °C) Max Temp
V3NBDatasheet
3 Socket MIL-Style Seal-Tight Viton® Boot Connector with Nylon Insert, Wired for Interface to Biaxial AC119-1D Sensor Wired as X and Z Entry, Permanent Mount, 250 °F (121 °C) Max Temp
V3RDatasheet
High Temperature 3 Socket MIL-Style Seal-Tight Viton® Boot Connector with PPS Insert, Permanent Mount, 350 °F (177 °C) Max Temp
V3RBDatasheet
High Temperature, 3 Socket MIL-Style Seal-Tight Viton® Boot Connector with PPS Insert, Wired for Interface to Biaxial AC119-1D Sensor Wired as X and Z Entry, Permanent Mount, 350 °F (177 °C) Max Temp
A3EDatasheet
3 Socket MIL-Style Right Angle Polycarbonate Molded Connector, Permanent Mount, 250 °F (121 °C) Max Temp
A3UDatasheet
3 Socket MIL-Style, Right Angle, Polyurethane Molded Connector, Permanent or Portable Mount, 250 °F (121 °C) Max Temp
A3VDatasheet
High Temperature 3 Socket MIL-Style, Right Angle, PPS Molded Connector, Permanent Mount, 392 °F (200 °C) Max Temp
A3YDatasheet
3 Socket MIL-Style, Right Angle, Nylon Molded Connector, Permanent Mount, 250 °F (121 °C) Max Temp
M3ADatasheet
5 Socket M12, Polycarbonate Molded Connector, for use with 3 Conductor Cables, Permanent Mount, 250 °F (121 °C) Max Temp
M4TADatasheet
4 Socket M12, Polycarbonate Molded Connector, Compatible with TA412-M12A and TA414-M12A, Permanent Mount, 250 °F (121 °C) Max Temp
Q3ADatasheet
3 Socket MIL-Style Connector with Grounded Backshell for Class I, Division 2 Locations, Polycarbonate Molded, Permanent Measurements, 250 °F (121 °C) Max Temp
Q3ABDatasheet
3 Socket MIL-Style, Polycarbonate Molded Connector with Grounded Backshell for Class I, Division 2 Locations, Wired for Interface to Biaxial AC949-1D Sensor Wired as X and Z Entry, Permanent Mount, 250 °F (121 °C) Max Temp
Q3NDatasheet
3 Socket MIL-Style Connector with Grounded Backshell for Class I, Division 2 Locations, Nylon Molded, Permanent Measurements, 250 °F (121 °C) Max Temp
R3CDatasheet
3 Pin MIL-Style Connector with Rubber Bending Strain Relief, Polyurethane Molded, 250 °F (121 °C) Max Temp
D3CDatasheet
3 Socket MIL-Spec Connector with Custom Molded Polyurethane Strain Relief, Portable Measurement, 250 °F (121 °C) Max Temp
D3DDatasheet
3 Socket MIL-Spec Right-Angle Connector, Polyurethane Molded, Portable Measurement, 250 °F (121 °C) Max Temp
D3CBDatasheet
3 Socket MIL Connector with Rubber Bending Strain Relief, Wired as X and Z Entry, Portable Measurements, 250 °F (121 °C) Max Temp
K3CDatasheet
3 Socket MIL-Style Connector with Rubber Bending Strain Relief, Polyurethane Molded, Portable Measurement, 250 °F (121 °C) Max Temp
K3CGDatasheet
3 Socket MIL-Style Connector with Grounded Backshell and Rubber Bending Strain Relief, Polyurethane Molded, Portable or Permanent Measurements, 250 °F (121 °C) Max Temp
