Product Manual Datasheet

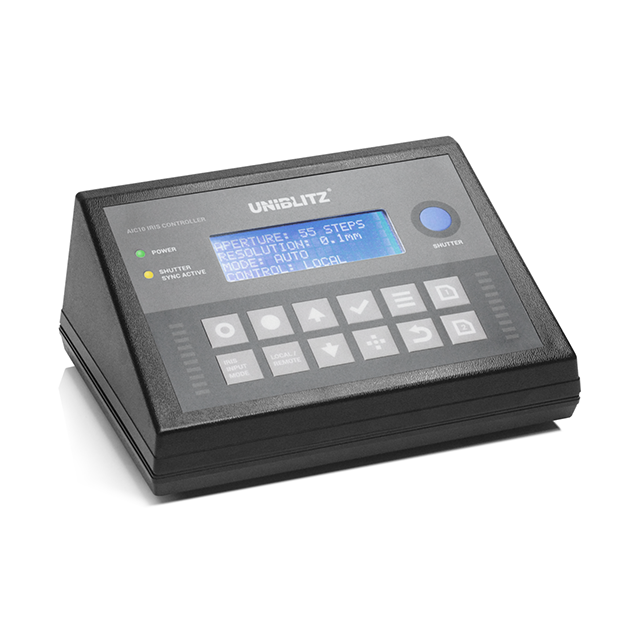

The AIC10 is a tabletop motorized iris diaphragm (auto iris) controller designed for use with the Uniblitz AI25 Auto Iris. The AIC10 features an intuitive button array and digital user interface, allowing it to operate the iris via a modified serial command protocol. When equipped, the AIC10 will also operate the AI25’s optional high-speed shutter attachment independently from the iris. The shutter’s electronic sync allows the AIC10 to indicate the shutter’s state.
Intuitive digital user interface
Optional shutter control (iris requires high-speed shutter attachment)
RS232 or TTL level signal control
RoHS compliant and CE certified
Specifications
| System Characteristics | |
| Repeat Shutter Exposure |
|
| Shutter Driver |
|
| Iris Drive |
|
| Power Supply |
|
| All BNC Inputs |
|
| All BNC Outputs |
|
| USB Input – Type B 2.0 |
|
| General Characteristics | |
| Indicators |
|
| Power Requirements |
|
| Operating Temperature |
|
| Storage Temperature |
|
| Size |
|
| Weight |
|
| Accessories Included |
|
| Commands | Description | Decimal | HEX | Octal | Binary | ASCII |
| SHUTTER “Open” | Opens shutter | 64 | 40 | 100 | 01000000 | @ |
| SHUTTER “Close” | Closes shutter | 65 | 41 | 101 | 01000001 | A |
| SHUTTER “Trigger” | Toggles shutter state | 66 | 42 | 102 | 01000010 | B |
| SHUTTER/IRIS “Reset” | Closes shutter, opens iris | 67 | 43 | 103 | 01000011 | C |
| IRIS “Decrement” | Closes iris one position (step 1) | 68 | 44 | 104 | 01000100 | D |
| IRIS “End” | Fully closes iris | 69 | 45 | 105 | 01000101 | E |
| IRIS “Goto” | Sends iris to requested position | 71 3 | 47 3 | 107 3 | 01000111 3 | GX1X2 2 |
| IRIS “Home” | Fully opens iris | 72 | 48 | 110 | 01001000 | H |
| IRIS “Increment” | Opens iris one position (step 1) | 73 | 49 | 111 | 01001001 | I |
