Datasheet
All-in-One Configurable Calibration Station
Features
Complete dew-point calibration solution with optional compressor, dryer, dew-point generator, reference instrument and optional manifold
Generated output responds quickly to a change of set point
Stable humidity generation
Simple operation through manual flow mixing or push-button switching of set points
Remote control via RS232/USB comms (dependant on model)

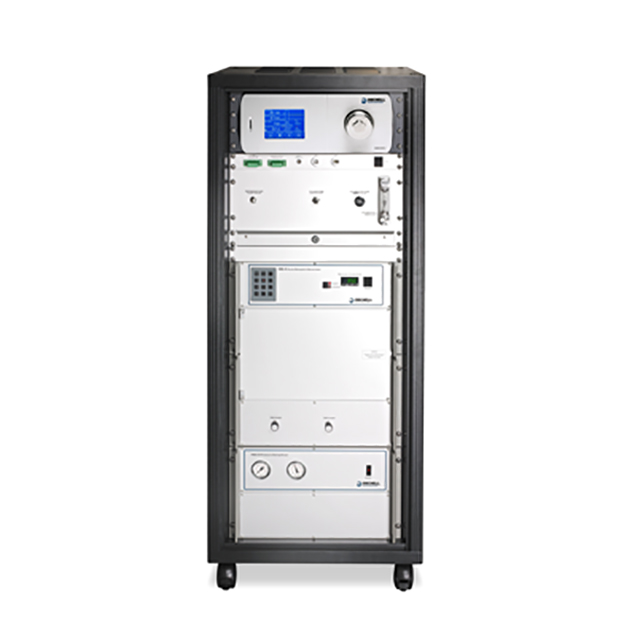

The DCS system is a complete rack-mounted calibration station capable of producing a flow of air (or nitrogen) at a pre-specified range of dew-point temperatures from a minimum of -100°C (-148°F) to a maximum of +20°C (+68°F). Through customization the DCS system can be PC controlled for automated calibration sequences or manually operated at pre-determined dew-point set points.
Specifications
| Model | DCS60 | DCS80 | DCS100 |
| Range | -60 to +20°Cdp (-76 to +68°Fdp) | -80 to +20°Cdp (-112 to +68°Fdp) | -100 to +20°Cdp (-148 to +68°Fdp) |
| Air Dryer | PSD2 Dryer | PSD4 Super Dryer | |
| Generator Method |
DG2 with manual flow metering ADG400 with mass flow controllers |
VDS system with mass flow controllers | |
| Reference Hygrometer | S8000 Chilled Mirror Hygrometer | S8000RS Chilled Mirror Hygrometer | S8000 -100 Chilled Mirror Hygrometer |
| Calibration Flow Rate | 2 to 5 Nl/min (4.2 to 10.6 scfh) | 10 Nl/min (21.2 scfh) | |
| Best System Uncertainty | ±0.2°C (±0.36°F) dew point (k = 2) @ +20°Cdp (+68°Fdp) | ||
| Set Point Precision | ±0.5°C (±0.9°F) dew point | ||
| Carrier Gas | Oil-free compressed air (compressor supplied) | ||
| Operating Temperature | +15 to +30°C (+59 to +86°F) | ||
| Traceability | Directly to NPL and NIST through Reference Hygrometer | ||
| Power | 220 to 240 V AC or 100 to 130 V DC, 50/60 Hz | ||
| Housing | Wheeled 19" rack system, 1.9m (74.8") high | ||
| Weight | 98kg (216lbs) (approx) | 125kg (231lbs) (approx) | Varies |
