Intrinsically Safe Dew-Point Measurement in Hazardous Areas
Features
Measurement range –110...+20 °Cdp
ATEX, IECEx, UKCA, cQPSus, TR CU Ex certified
Accuracy ±1 °Cdp
2-wire 4...20 mA output
Traceable 13-point calibration certificate
450 barg pressure rating
Alternative process connections available
Material certification to BS EN 10204 3.1
Moisture in gases and liquids
Service exchange program
Oxygen Service cleaned

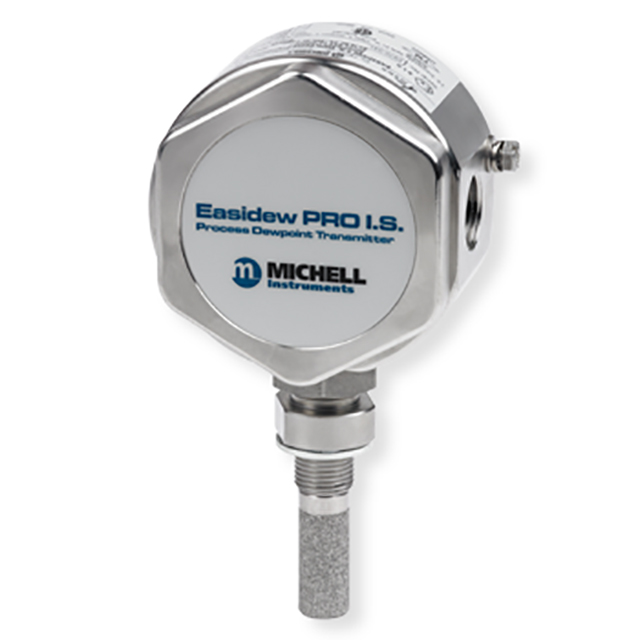

The Easidew PRO I.S. Intrinsically safe dew-point transmitter measures moisture in demanding process and refinery applications in either gases or non-polar liquids.
Based on Michell’s Ceramic Metal-Oxide Moisture Sensor, the Easidew PRO I.S. gives long term stability and a fast response to changes in moisture. With high-volume manufacturing capacity, the Easidew PRO I.S. is suitable for use by OEMs and systems integrators, who require short and consistent lead times.
It offers a wide measurement range of –110 to +20 °Cdp, is easily integrated into existing systems and has global certifications for use in hazardous areas. The unit’s robust housing protects the electronics from harsh environmental conditions.
Specifications
| Product | Easidew PRO I.S. for Gases | Easidew PRO LQ I.S. for Liquids |
| Performance Specifications | ||
| Measurement Range |
-110...+20 °C (-166...+68 °F) dew point; -100...+20 °C (-148...+68 °F) dew point |
0 to 1000 ppmW capability – factory configured to customer-required range and application |
| Accuracy |
±1 °C (±1.8 °F) dew point (+20...-60 °C / +68...-76 °F) ±2 °C (±3.6 °F) dew point (-60...-110 °C / -76...-166 °F) |
|
| Response Time | 5 mins to T95 (dry to wet) | |
| Repeatability | 0.5 °C (0.9 °F) dew point | |
| Calibration | Traceable 13-point calibration and certificate | |
| Electrical Specifications | ||
| Output Signal | 4...20 mA (2-wire connection, current source); User configurable over range | |
| Output | Dew point or moisture content | Moisture content |
| Analog Output Scaled Range |
Dew point:-110...+20 °C (-166...+68 °F) or –100...+20 °C (-148...+68 °F) Moisture content in gas: 0...3000 ppmV Non-standard :mg/m3, lbs/MMSCF natural gas |
Moisture content in liquid: 0...1000 ppmW capability – factory configured to customer-required range and application |
| Supply Voltage | 12...28 V DC | |
| Load Resistance | Max 250 Ω @ 12 V (500 Ω @ 24 V) | |
| Current Consumption | 23 mA max, depending on output signal | |
|
Saturation Constants (for moisture in liquids measurements only) |
6-point look-up table for saturation constants up to 1000 ppmW over the
temperature range 0...+50 °C (32...+122 °F); saturation constants for 10 common liquids can be
programmed into the Easidew PRO LQ IS via the application software; alternatively, the user can program saturation constants manually |
|
| CE & UKCA Conformity | Approved | |
| Operating Specifications | ||
| Operating Temperature | –40...+60 °C (-40...+140 °F) | |
| Compensated Temperature Range |
-20...+50 °C (-4...+122 °F) NOTE: The transmitter accuracy statement is only valid for the temperature range: -20/+50 °C (-4/+122 °F) |
|
| Storage Temperature | -40...+60 °C (-40...+140 °F) | |
| Operating Pressure | 45 MPa (450 barg / 6526.7 psig) maximum | |
|
Flow rate |
1...5 Nl/min mounted in standard sampling block 0...10 m/sec direct insertion |
0.1...0.3 L/min through Easidew sample block 0.1...1 m/s direct insertion |
| Mechanical Specifications | ||
| Ingress Protection |
IP66 in accordance with standard BS EN 60529:1992; NEMA 4 protection in accordance with standard NEMA 250-2003 |
|
| Intrinsically safe area certificates* |
ATEX/UKCA: II 1 G Ex ia IIC T4 Ga (–20 °C...+70
°C) IECEx: Exd ia IIC T4 Ga (–20 °C...+70 °C) TR CU 0Ex ia IIC T4 Ga (–20 °C...+70 °C) cQPSus:IS, Class I, Division 1, Groups A, B, C & D, T4 Class I, Zone 0, AEx ia IIC T4 Ga, Ex ia IIC T4 Ga Tamb +70 °C |
|
| Russian Pattern Approval | Russia (GOST-R), Kazakhstan (GOST-K) | |
| Canadian Pressure Vessel Certification | C.R.N. — 11 Canadian provinces | |
|
Oxygen service |
Optional: cleaned for enriched oxygen | |
| Housing material | 316 stainless steel | |
|
Filter (sensor protection) |
Standard: Stainless steel sintered guard (for protection
against fine particulate >80μm) Optional: HDPE guard (for protection against fine particulate >10μm) |
|
| Process Connection and Material |
316 stainless steel 5/8” — 18 UNF with bonded seal, G1/2” and 3/4” UNF
adaptors available (material certificate to BS EN 10204 3.1 — see ‘a(chǎn)ccessories and spare parts’ on product order codes) |
|
| Weight | 1.27 kg (2.8 lb) | |
| Electrical Connections | Screw terminal via female M20 x 1.5mm gland | |
| Diagnostic conditions (factory programmed) |
Condition Output Sensor fault 23 mA Under-range dew point 4 mA Over-range dew point 20 mA |
|
| Approved galvanic isolators |
KFD2-CR-EX1.20200 KFD2-CR-EX1.30200 KFD0-CS-EX2.50P KFD0-CS-EX1.50P KFD2-STC4-EX1.H MTL5040 MTL5541 MTL5041 |
|
