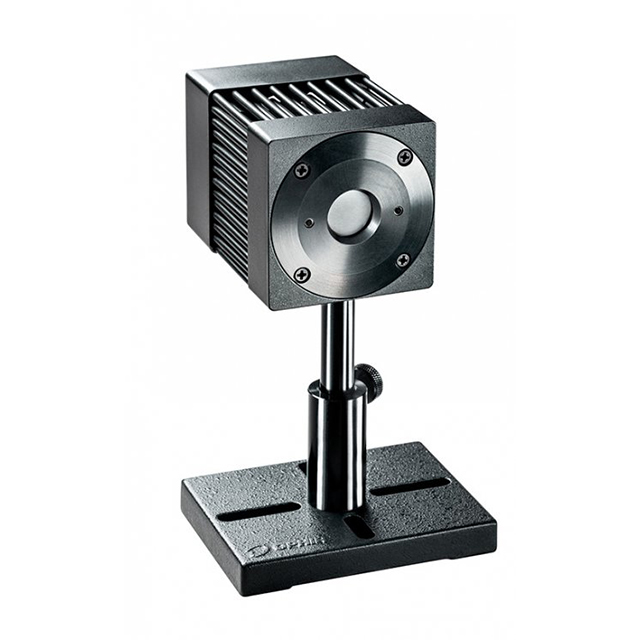

The F80(120)A-CM-17 is a thermal power/energy laser measurement sensor with a high damage threshold for high repetition rate pulsed lasers. It has a 17.5mm aperture and can measure power from 100mW to 80W continuously and to 120W intermittently. The high damage threshold CM absorber covers the spectral range from 0.248 to 9.4μm and has a damage threshold of 35kW/cm2 for high repetition rates. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

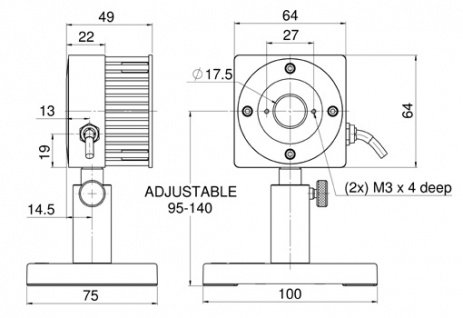

F80(120)A-CM-17 Drawing
| Absorber Type | CM |
| Aperture | ?17.5mm |
| Spectral Range | 0.248μm-9.4μm |
| Power Range | 100mW-120W |
| Energy Range | 50mJ-200J |
| Dimensions | 64 L x 64 W x 93 D (mm) |
| Max Pulse Energy | 200J |
| Max Average Power Density | 35kW/cm2 |
| Response Time | 2 s |
| Max Energy Density (for <100ns) | 0.7J/cm2 |
| Max Energy Density (for 2ms) | 45J/cm2 |
| Max Average Power | 120W |
