User Manual Instructions
IHF01 measures heat flux and surface temperature of industrial equipment

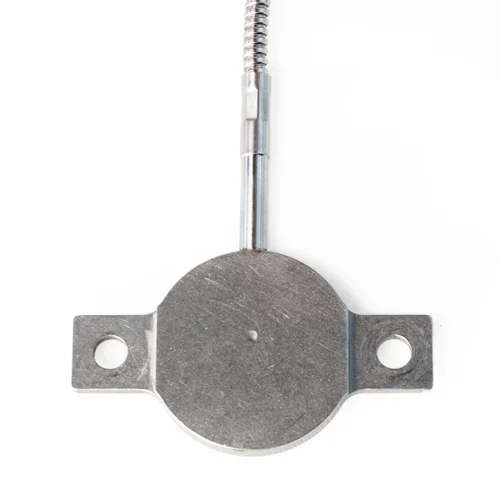

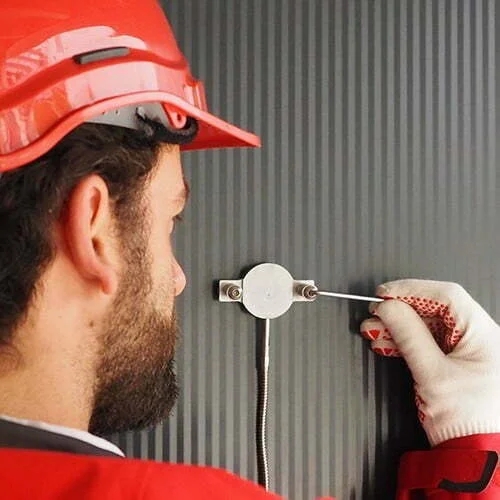

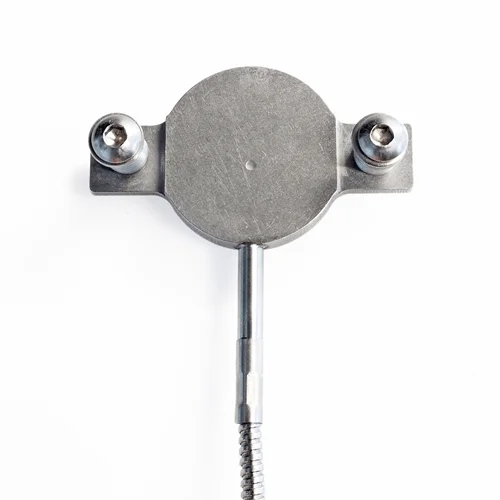

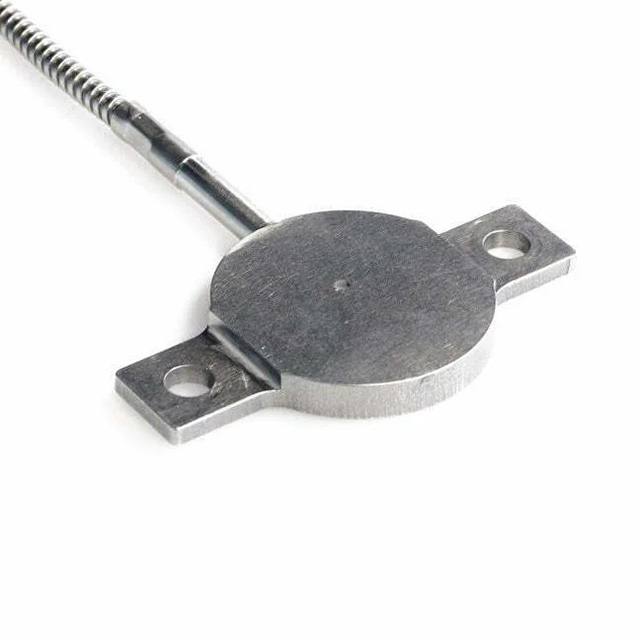

IHF01 measures heat flux and surface temperature of industrial equipment like furnaces, boilers, fluidised beds, distillation columns and ovens. The sensors inside IHF01, a thermopile and a thermocouple, are protected by a fully sealed stainless steel body. It is suitable for long-term use at one location as well as repeated installation when a measuring system is used at multiple locations. IHF01 measures heat flux through the object on which it is mounted, in W/m2, as well as the temperature in °C. The sensors in IHF01 are a thermopile and a type K thermocouple. The thermopile measures the local heat flux. The thermocouple measures the absolute temperature of the surface on which IHF01 is mounted, as well as the approximate sensor body temperature. A thermopile and a thermocouple are passive sensors; they do not require power.

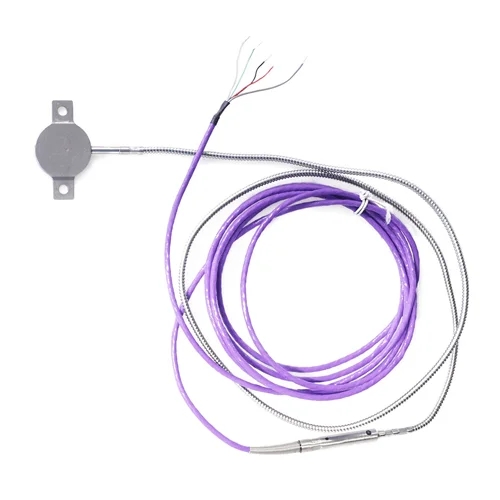

Using IHF01 is easy. It can be connected directly to commonly used data logging systems. The heat flux, in W/m2, is calculated by dividing the IHF01 output, a small voltage, by the sensitivity. The sensitivity is provided with IHF01 on its product certificate. Equipped with heavy duty cabling, and having a fully stainless steel casing so that moisture does not penetrate the sensor, IHF01 has proven to be very reliable. It survives long-term outdoor installation.
1、Suitable for use at high temperatures
2、Robust
3、IP protection class: IP67
4、Signal wires electrically insulated from the sensor body
Trend-monitoring and comparative measurement of heat flux and surface temperature in industrial installations. See also model IHF02, an industrial heat flux sensor with higher sensitivity.
1、Industrial monitoring and control / heat flux and heat transfer measurement
2、Scientific research / heat and heat transfer measurement
| Measurand | heat flux, temperature |
| Measurement range | (-1000 to +1000) x 103 W/m2 |
| Sensitivity (nominal) | 9 x 10?? V/(W/m2) |
| Heat flux sensor | thermopile |
| Calibration traceability | to SI units |
| Temperature sensor | thermocouple type K |
| Recommended # of sensors | 2 per measurement location |
| Rated operating temperature ranges | : |
| Sensor and high temperature cable | -30 to +900 °C |
| Optional black coating | -30 to +170 °C |
| IP protection class | IP67 |
| Standard cable lengths | : |
| high-temperature cable | 1 m (see options) |
| low-temperature extension cable | 3 m (see options) |
| Order code | IHF01 – high temperature cable length in m – low temperature extension cable length in m |
| Options |
?Longer cable (specify total cable length for both cable types in m) ?Black coating ?EC type examination certificate (ATEX) II 2 G EEx d IIC T6 ?Connector at IHF01 cable end ?Low-temperature extension cable with 2 connectors, matching cable connector and chassis connector ?chassis connector with internal wiring (colour code of wiring identical to cable colour code) |
