User's Manual Datasheet

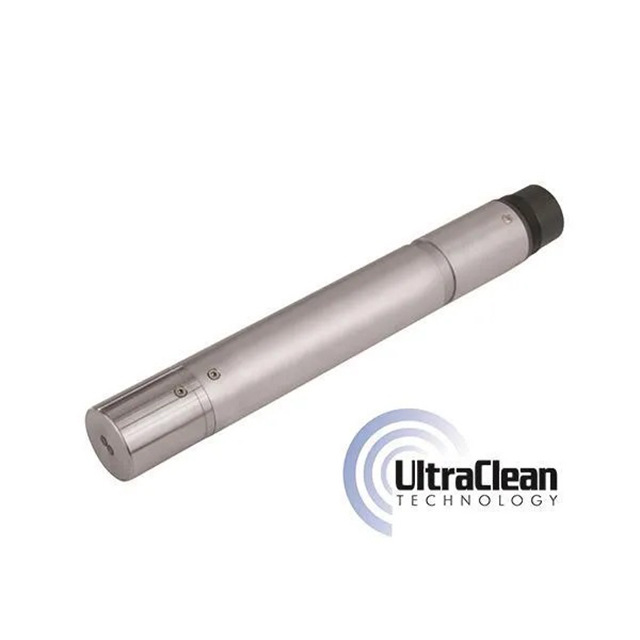

The ViSolid is a reflectance-based TSS (total suspended solids) probe for the IQ SensorNet process monitoring system.
The ViSolid comes with 2 factory calibrations for greatest versatility. Calibration matrix type 1 is designed for monitoring MLSS (mixed liquor suspended solids), return activated sludge (RAS), and waste activated sludge (WAS). Calibration matrix type 2 is used for monitoring primary sludge and thickened sludge. Two types of user calibrations (correction factor and value pair) are available for fine-tuning the factory calibration or monitoring TSS in other applications.
Smooth, durable sapphire measuring windows and continuous ultrasonic cleaning provide reliable and trouble-free service. The ViSolid is a good choice for process control of activated sludge wasting with an immersion mount for MLSS monitoring and an insertion mount to monitor RAS/WAS.
Factory calibrated
UltraClean? maintenance free cleaning system provides integrated, continuous ultrasonic cleaning to prevent fouling for accurate measurements every time.
Low ownership cost. No wipers or seals to replace.
Measure in mg/L or %. Measuring range up to 40,000 mg/L
2-year probe warranty
| Anti Fouling | UltraClean? ultrasound cleaning system |
| Certifications | UL 61010-1, CAN/CSA C22.2 # 61010.1 |
| Depth / Pressure Rating / Limit | 10 bar (145 psi) |
| Equipment used with | 282/284, 2020 3G |
| Integrated Lightning Protection | Yes |
| Languages | English, German |
| Measurement Method / Channels | in case of higher concentrations, a scattered light method is used, the backscatter method is implemented |
| Measurement Range | Concentration: 0 to 400 mg/L; 0 to 4000 mg/L; 0 to 25,000 mg/L; 0 to 40,000 mg/L Saturation: 0.0003 to 100% |
| Operating Temperature | 32 – 140 °F (0 – 60 °C) |
| Parameters Measured | Total Suspended Solids |
| Precision | Repeatability according to DIN ISO 5725 or DIN 1319 <0.015% or > 0.0006 FNU |
| Sampling | Yes |
| Smart Sensors / Ports | Yes |
| Storage Temperature | 23 – 149 °F (-5 – +65 °C) |
| Unit of Measure | g/l SiO2 / % SiO2, g/l TSS / % TSS |
| User Replaceable | Yes |
| Warranty | 2 years |
| Waterproof | IP-68 |
