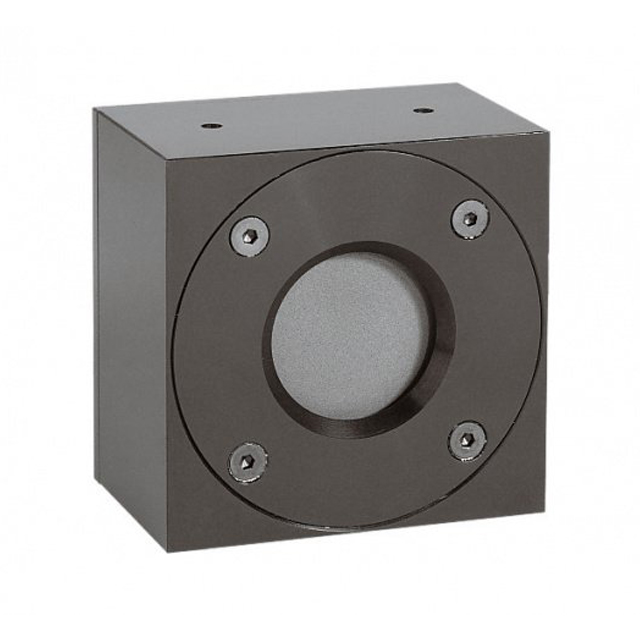

The L30C-SH is a compact thermal power/energy laser measurement sensor for freestanding use or mounted to host system. It has a 26mm aperture and can measure from 300mW to 10W stand alone and to 100W when heat sinked. It can measure energy from 30mJ to 100J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 20μm.

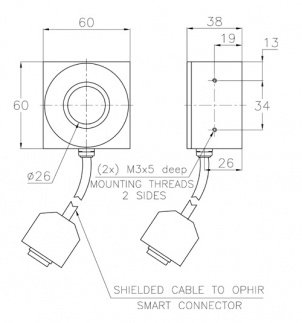

L30C-SH Drawing
| Aperture | ?26mm |
| Spectral Range | 0.19-20μm |
| Power Range | 300mW-100W |
| Energy Range | 30mJ-100J |
| Dimensions | 60 L x 60 W x 38 D (mm) |
| Max Average Power Density | 14kW/cm2 at 100 W |
| Response Time | 1.5 s |
| Max Energy Density(for <100ns) | 0.3J/cm2 |
| Max Energy Density(for 2ms) | 10 J/cm2 |
| Max Average Power | 100W heat sinked |
| Communication | N.A. |
