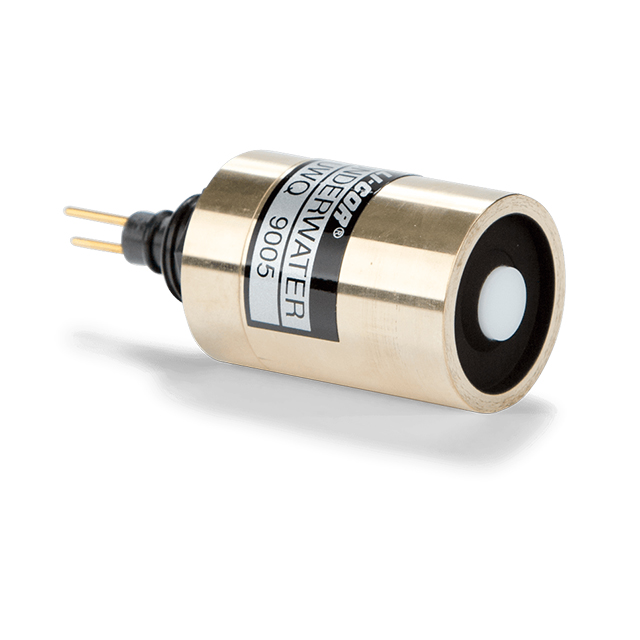

LI-192 Underwater Quantum Sensor Description：

Product Manual

The LI-192 Underwater Quantum Sensor measures PAR from all angles in one hemisphere. The LI-192 works in air or underwater at depths up to 560 meters. The measurements are cosine corrected and typically expressed as Photosynthetic Photon Flux Density (PPFD). For simultaneous measurements of downwelling and upwelling PAR, two sensors can be mounted on the 2009S Lowering Frame.

Character

Designed for immersion

Rugged, corrosion-resistant sensors for use in fresh and saltwater environments

Ideal for oceanography, limnology, turbidity, and vertical profiling

Suitable for submerged and out-of-water measurements

Working Principle

The LI-192 uses a silicon photodiode and glass optical filters to create uniform sensitivity to light between 400 nm to 700 nm, which closely corresponds to light used by most aquatic plants and algae. A precision optical filter blocks light with wavelengths beyond 700 nm, which is critical for measurements in a water column, where the ratio of infrared to visible light may be high.

Cables and Accessories

The LI-192 is available with cable lengths ranging from 3 meters to 100 meters.

The 2009S Lowering Frame mounts one or two LI-192 sensors — one each for downwelling or upwelling radiation.
