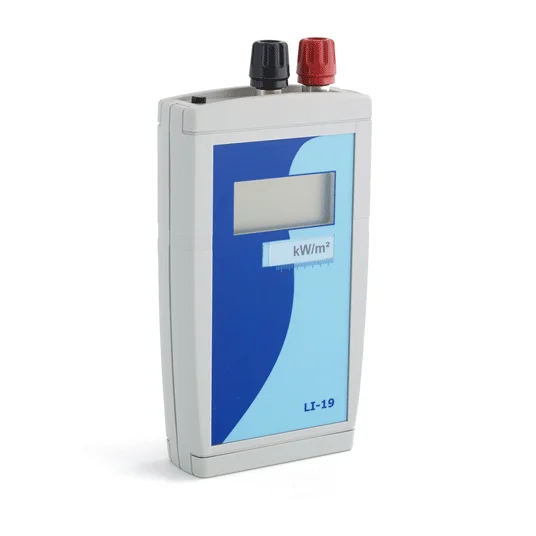

User's Manual Datasheet
| Output on display | Heat flux, solar radiation |
| Input | analogue voltage |
| Conversion | Division by the sensor sensitivity |
| Display definition | 4 digits with sign |
| Display refreshment rate | 1 s?1 |
| Calibration uncertainty | 0.1 % |
| Temperature dependence | < 0.5 % + 3 x 10?? V over rated range |
| Sample rate | 2 s?1 |
| Rated input range | 6.25 to 200 x 10?3 V (selectable) |
| A/D conversion | 16 bits |
| Stored measurement definition | minimum maximum and average over storage interval with conversion to W/m2 |
| Storage capacity | 3518 measurements |
| Storage interval range | 2 to 65535 s (selectable) |
| Compatibility with Hukseflux sensor models | LP02, HFP01, SBG01, HF03 |
| Battery type | 2 x AA |
| Internal power supply voltage | 3 VDC |
| Battery life | > 50 days (on fresh batteries) |
| Rated operating temperature range | -10 to +40 °C |
| System requirements for use with PC | Windows XP and higher |
| Connection to PC | USB 1.1 / 2.0 low speed |
| User interface on PC | LI19 software |
| IP protection class | IP40 |
| Connection to sensor | 2 x (female chassis plug for 4 mm banana with screwed signal wire clamp) |
| Weight | 0.175 kg (net) / 1.3 kg with carrying case |
| Dimensions LI19 | (70 x 146 x 25) mm |
| Dimensions transport case | (400 x 300 x 120) mm |
