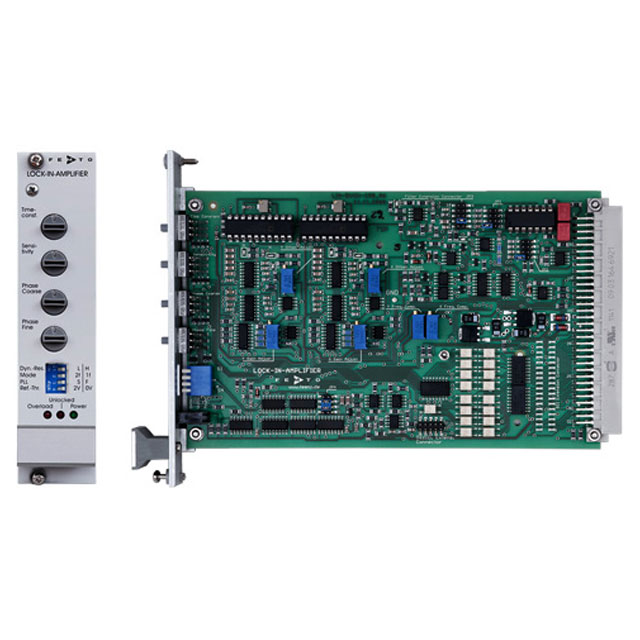

Single and dual phase 19" boards
Working frequency 5 Hz up to 120 kHz
Phase shifter 0° ... 360°
Current and voltage input
Parameter control by local switches and opto-isolated digital inputs
Mounting kit MK-LIA-2 and reference oscillator module SOM-1 available
The high prices for usual desktop lock-in amplifiers often impede their use in cost sensitive applications. For this reason, FEMTO designed a complete and easy-to-use lock-in board at a very attractive price. All settings for sensitivity, time constant and phase shift can be selected either manually by front-panel switches or remotely by a PC via the digital interface. Additional signal filters can be configured by jumpers on the board to further increase the dynamic reserve in demanding applications.
19" BOARD VERSUS PC CARDA PC card is exposed to the electromagnetic disturbed environment inside a computer case. Therefore, using a PC card for ultra-sensitive measurements of small signals is often not practical. FEMTO's Series LIA-BV(D)-150 Lock-In Amplifiers are designed as 19" boards which can operate in EMI-designed standard cases which offer best possible shielding and noise suppression. In addition, they are the perfect choice for designing high-performance multi-channel systems.
APPLICATIONS| Model | LIA-BV-150-L Single Phase | LIA-BV-150-H Single Phase | LIA-BVD-150-L Dual Phase | LIA-BVD-150-H Dual Phase |
| Working Frequency | 5 Hz - 10 kHz | 50 Hz - 120 kHz | 5 Hz - 10 kHz | 50 Hz - 120 kHz |
| Time Constants | 3 ms - 10 s 6 or 12 dB/oct. | 300 μs - 1 s 6 or 12 dB/oct. | 3 ms - 10 s 6 or 12 dB/oct. | 300 μs - 1 s 6 or 12 dB/oct. |
| Adjustable Signal Filter[6 dB/oct.] | Highpass 0.2 Hz - 1 kHz Lowpass 100 Hz - 1 MHz | Highpass 2 Hz - 10 kHz Lowpass 100 Hz - 1 MHz | Highpass 0.2 Hz - 1 kHz Lowpass 100 Hz - 1 MHz | Highpass 2 Hz - 10 kHz Lowpass 100 Hz - 1 MHz |
| Datasheet | 367 kB | 367 kB | 369 kB | 369 kB |
| Outputs | X = in phase, ±10 V full scale, short-circuit protected, Signal monitor output | X = in phase, Y = quadrature, R = magnitude, ±10 V full scale, short-circuit protected,Signal monitor output | ||
| Sensitivity (Full Scale) | Voltage: 3 μV - 1 V in 1-3-10 steps Current: 30 pA - 10 μA in 1-3-10 steps | |||
| Voltage Input | True-differential instrumentation amplifier, noise 12 nV/√Hz | |||
| Current Input | Transimpedance amplifier, gain 100 kV/A, noise 0.4 pA/√Hz | |||
| Reference Input | ±100 mV to ±5 V, switchable to TTL | |||
| Phase | Adjustable 0° - 360°; resolution: 8-bit @ f ≤ 60 kHz, 7-bit @ f > 60 kHz Temperature drift <0.01°/K | |||
| Max. Dyn. Reserve | 80 dB | |||
| Digital Control | 16 TTL/CMOS inputs: 8-bit phase, 4-bit time constant, 4-bit sensitivity | |||
| Power Supply | ±15 V, +120 mA / -60 mA | |||
| Dimensions | 160 x 100 x 20 mm (L x W x H), weight 100 g (0.22 lbs) | |||
The optional Reference Oscillator SOM-1 can be connected by an extension connector inside the module. Power supply via 3-pin Lemo® socket. A mating connector is provided with the device. Optional power supply PS-15 available. For further information please view the datasheet.

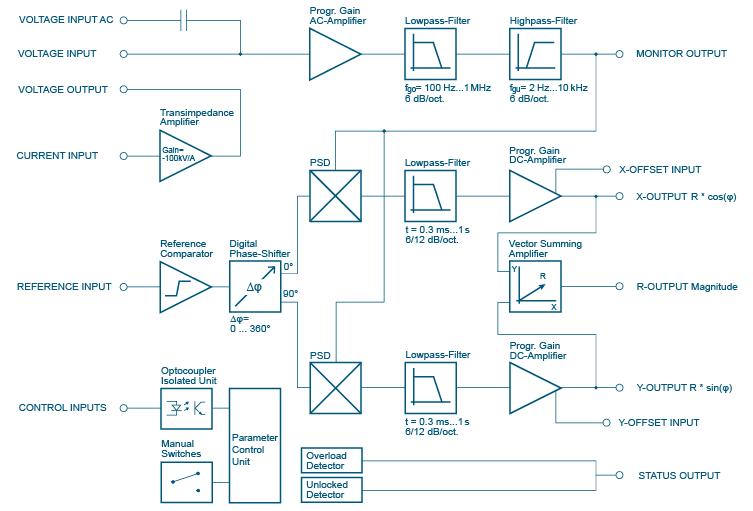

Block Diagram LIA-MVD-200-H
