Datasheet

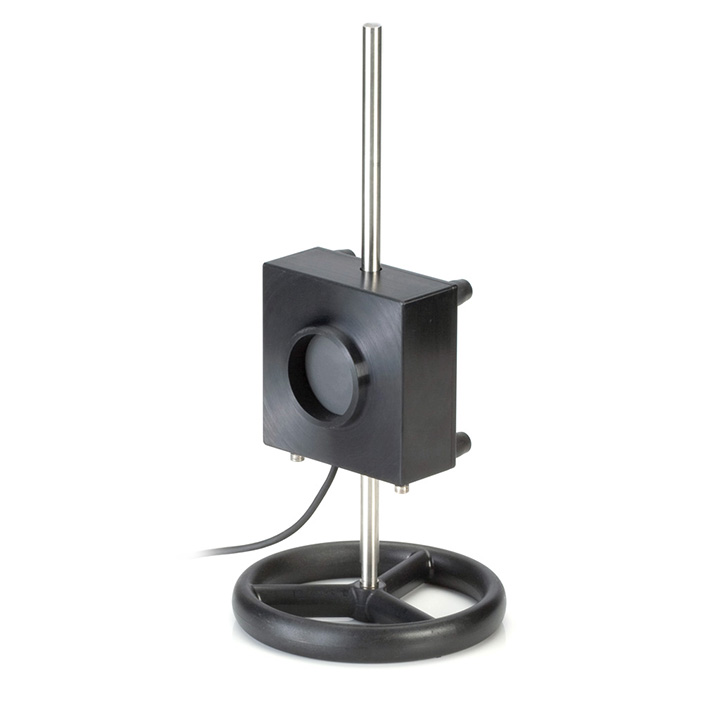

This BeamFinder sensor is terminated in a SmartSensor DB25 cable and is directly compatible with LabMax-TOP, LabMax-TO and LabMax-Pro SSIM meters. A Thermal SmartSensor Adapter PN 1056827 is required to use this sensor with FieldMate, FieldMaxII-TOP and FieldMaxII-TO meters.
These unique position sensing thermopiles display the position of the incident beam on the sensor disk, in addition to measuring power when used with the LabMax and LabMax-Pro meters. This information allows the user to safely and precisely align the sensor and the beam being measured. This is particularly useful for non-visible beams.
Water-cooled thermopile for measuring lasers up to 5000W with beam position measurement.
Key Features:
100W to 5000W range
56 mm diameter active area
Beam position measurement
Spectrally flat broadband coating
Compact OEM sensor
0.25 to 10.6 μm spectral range
Water-cooled
ISO 17025 accredited
Specifications
