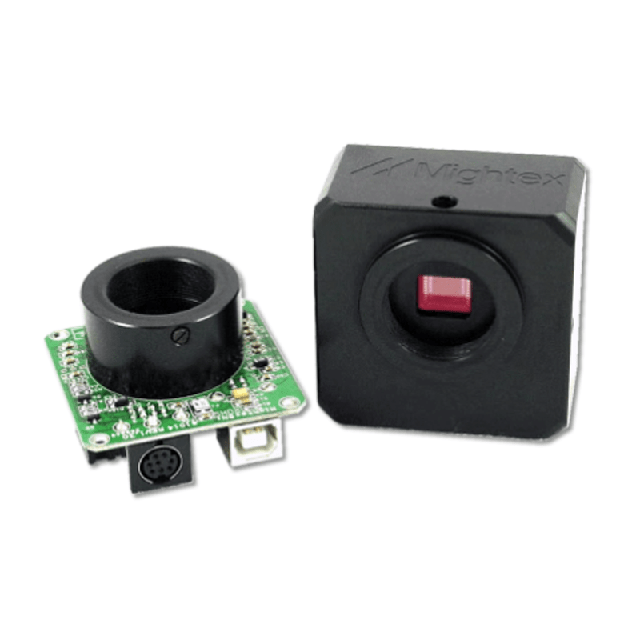

3MP Color CMOS Cameras – unbuffered Description：

Datasheet

Mightex USB 2.0 color cameras are designed for a wide variety of applications such as digital microscopy and medical imaging, where quality, ease of use, and cost-effectiveness are crucial. With a USB2.0 interface and powerful PC software, the camera delivers excellent quality images, and the frame rate can be as high as 8 fps in full resolution and up to 600 fps using ROI mode. In addition, a user-friendly GUI based application software and an SDK are provided for custom software development. The cameras have 4-pin GPIOs and optional built-in LED drivers. A DirectShow driver and a TWAIN driver are also provided in order to easily link the cameras with users’ applications.

Features:

2048×1536 active pixels

Built-in LED drivers

4-pin GPIOs

Simpler data processing

High-speed USB2.0 (480Mb/s)

DirectShow driver

TWAIN driver

8fps @2048×1536, 70fps @640×480, 600fps @32×32

Digital output, no need for frame grabber

Custom programmable with SDK provided

External and software trigger

Strobe output for external flash

ROI & pixel skipping/binning

No need for external power supply

OEM versions available

Applications:

Machine vision

Digital microscopy

Machine vision

Medical imaging

Semiconductor equipment

Test instruments

Document scanners

2D barcode readers

Web camera and security video

Specifications
