User 's Manual
MQ-200X sensor adopts Apogee's older and more economical photoelectric detector, which is very suitable for accurately measuring PAR, metal halide and high-pressure sodium lamp in sunlight. To measure other light sources, including LEDs, an updated full spectrum or ePAR sensor is recommended.
Accurate and stable calibration - This instrument combines the intensity of all photons between 400 and 700 nm under sunlight, metal halides and high-pressure sodium lamps to give a value ofμ mol m ˉ2 s ˉ1is a single PAR reading in units. Unlike amateur PAR instruments that are sometimes used out of the box but quickly lose calibration, Apogee instruments have accurate and stable calibration, with an annual drift rate of less than 2%.

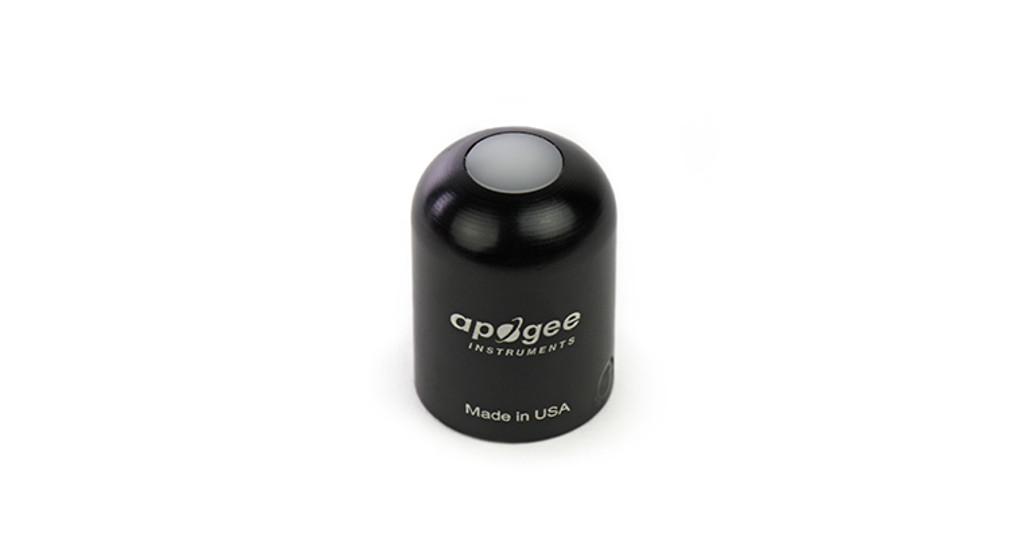

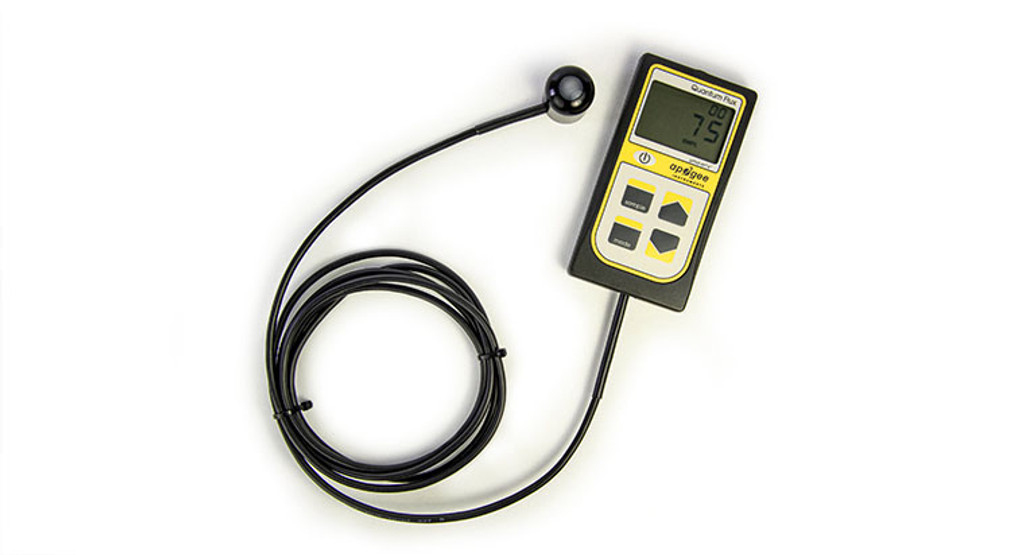

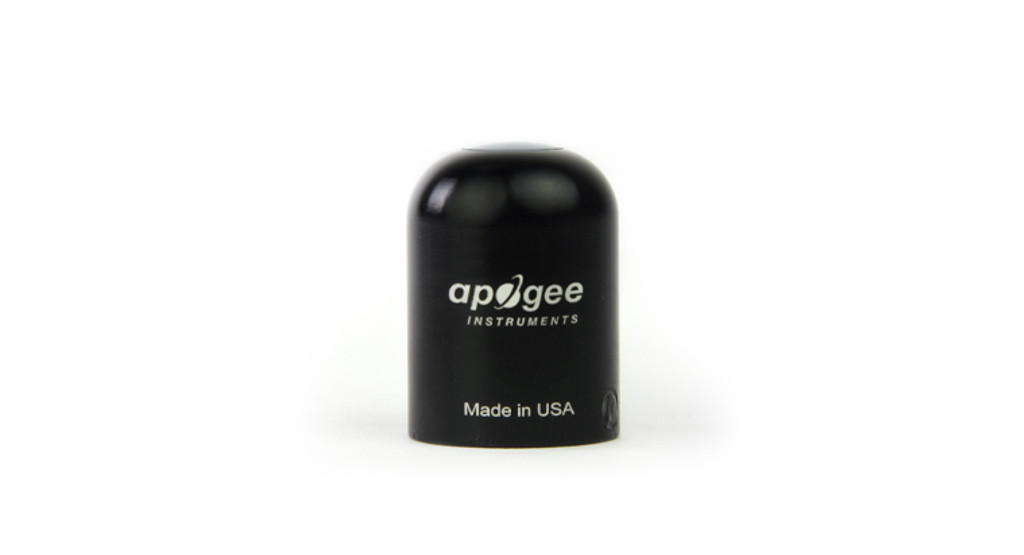

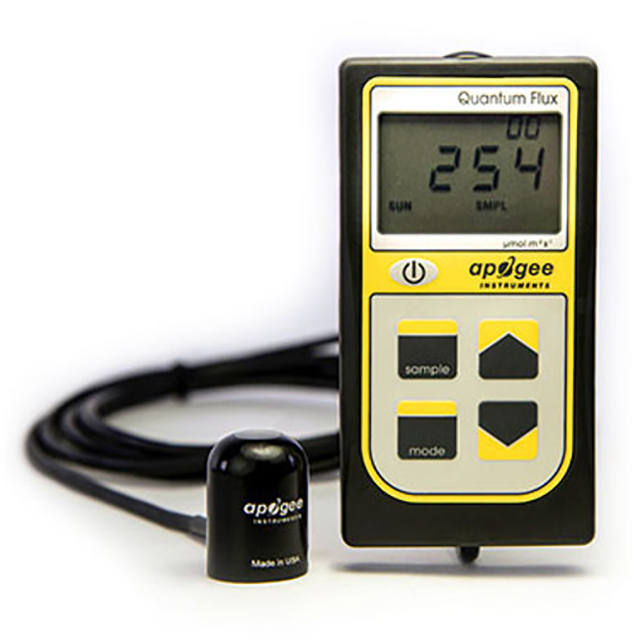

Rugged and easy to use - Quantum sensor heads are made of machined aluminum and encapsulated in epoxy resin, which can be used for many years in harsh environments, including underwater. The hand-held instrument is connected by cable and can display real-time readings, record samples, and record average intensity and daylight integration (DLI) measurements. Unlike the sensor head, the hand-held instrument is not waterproof.
Three measurement modes: the instrument has point measurement, sampling and logging modes, and records inmol m ˉ2 s ˉ1is the comprehensive daily total. The sampling mode will record up to 99 manual measurements, and the logging mode will turn the instrument on and off, making measurements every 30 seconds. Every 30 minutes, the instrument will take an average of 60 30 second measurements and record the average value in the memory, up to 99 average values. Once filled, it will overwrite the old measurement with the new one. The daily light integration will be recorded from 48 average measurements to obtain a daily reading, which can be downloaded via the Apogee AC-100 cable and used with the accompanying Apogee AMS software.
| Calibration Uncertainty | ± 5 % |
| Measurement Repeatability | Less than 1 % |
| Non-stability (Long-term Drift) | Less than 2 % per year |
| Non-linearity | Less than 1 % (up to 2500 μmol mˉ2 sˉ1 ) |
| Response Time | Less than 1 ms |
| Field of View | 180? |
| Spectral Range | 370 nm to 650 nm (wavelengths where response is greater than 50 % of maximum) |
| Directional (Cosine) Response | ± 5 % at 75? zenith angle |
| Temperature Response | -0.04 % per ℃ |
| Operating Environment | 0 to 50 ℃, less than 90 % non-condensing relative humidity up to 30 ℃, less than 70 % non-condensing relative humidity from 30 to 50 ℃, separate sensors can be submerged in water up to depths of 30 m |
| Meter Dimensions | 126 mm length, 70 mm width, 24 mm height |

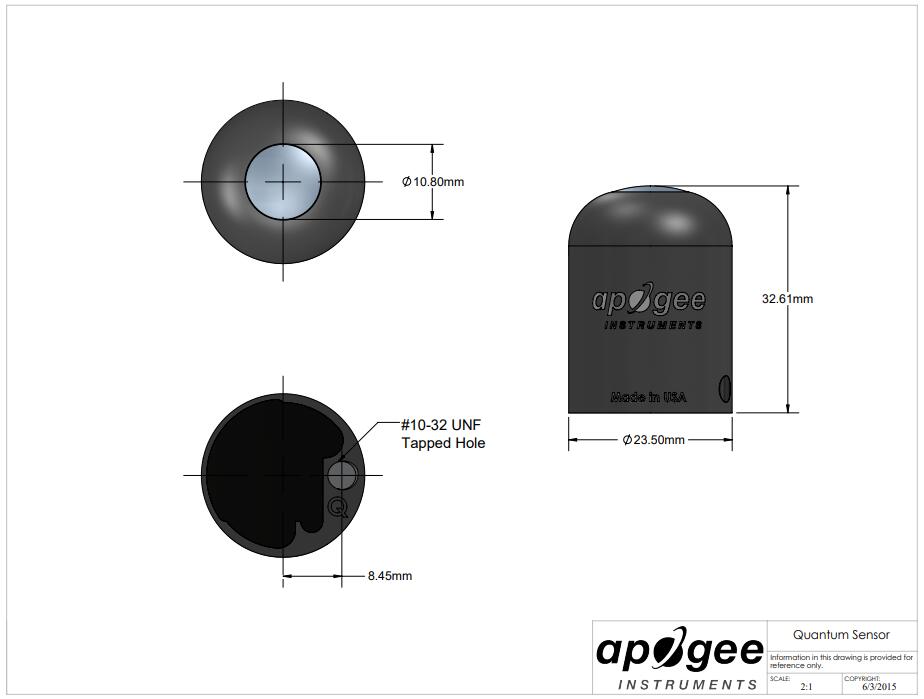

| Sensor Dimensions | 24 mm diameter, 28 mm height |
| Mass | 180 g |

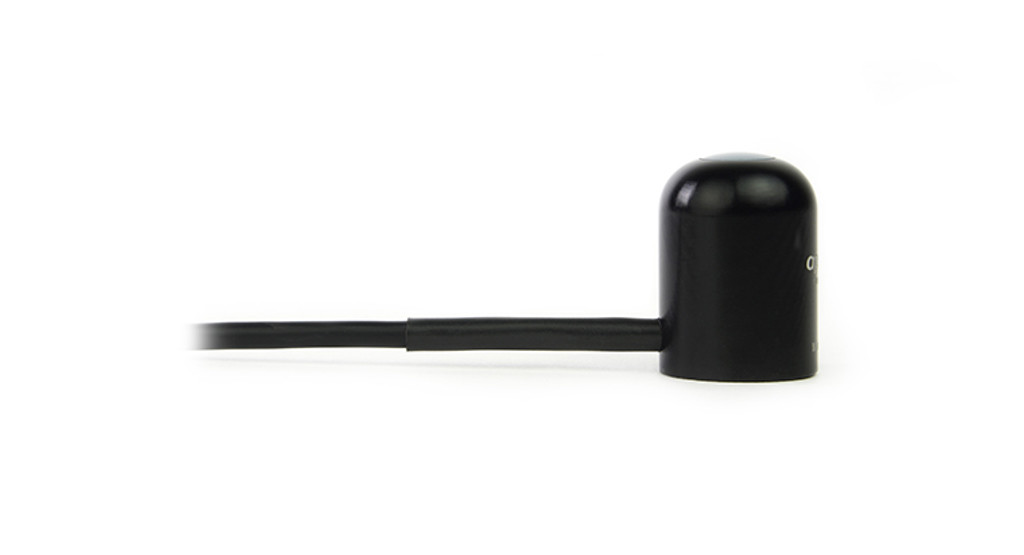

| Cable | 2 m of shielded, twisted-pair wire with TPR jacket (high water resistance, high UV stability, flexibility in cold conditions), additional cable available |
| Warranty | 4 years against defects in materials and workmanship |
| Manufactured | Made in the USA |
