OE-300 200 MHZ VARIABLE GAIN PHOTORECEIVER SERIES

1. Adjustable transimpedance gain from 10² to 10⁸ V/A

2. Wide bandwidth up to 200 MHz

3. Various Si and InGaAs models cover the 320 to 1700 nm wavelength range

4. High dynamic input range up to 10 mW optical power

5. Large optical detector size up to 3 mm dia.

6. Low noise, NEP down to 47 fW/√Hz

7. Switchable low pass filters for minimizing wideband noise

8. Fiber optic and free space input

9. 1.035"-40 threaded free space input compatible with many optical standard accessories

10. Full manual and remote control capability

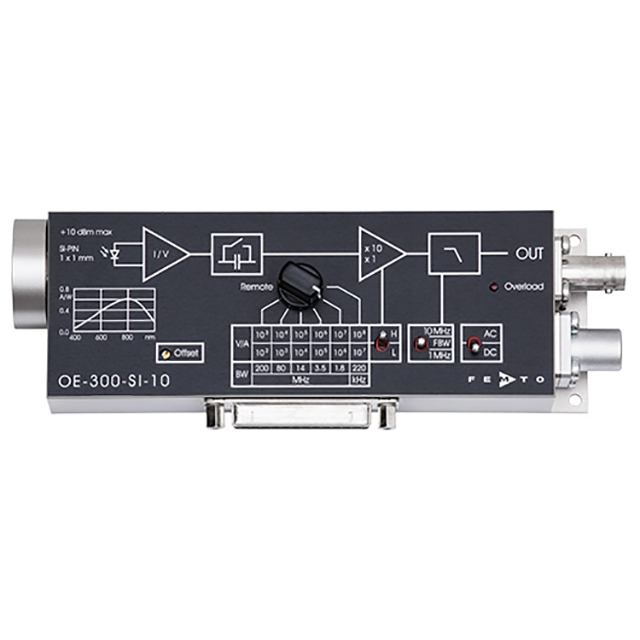

The OE-300 photoreceiver consists of a premium quality photodiode followed by a high-end, variable gain transimpedance amplifier. The low noise performance (NEP) is outstanding and sets a benchmark for wideband photoreceivers particularly in the high and mid-range gain settings. The relatively large sized detectors make optical alignment easy and also ensure a very high coupling efficiency when using the Si models together with the optionally available fiber optic adapters PRA-FC/SMA.

The switchable gain from 10² to 10⁸ V/A (decade increments) allows precise and reliable measurements within a very wide dynamic range from nanowatts up to 10 milliwatts optical power.

Many additional features like switchable low-pass filters, offset adjustment, switchable AC/DC coupling and the capability of manual and opto-isolated remote control by a PC make the OE-300 the most versatile wideband photoreceiver in its class.

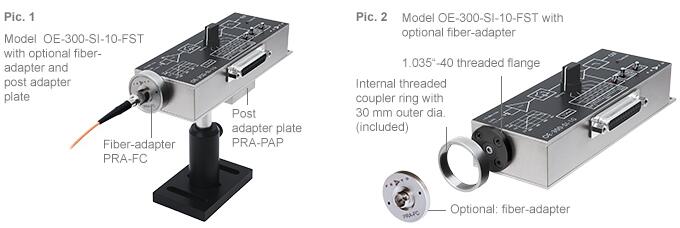

The Si-models are factory equipped with an optical free space input. There is the choice between a 1.035"-40 threaded flange including a coupler ring with 30 mm outer diameter and a 25 mm unthreaded flange. Both types offer a broad compatibility with optical standard accessories like tubes, lenses, cage systems, optical adapters etc. from various manufacturers. The threaded free space input e.g. can be easily converted to an optical fiber input by screwing a 1.035"-40 externally threaded fiber-adapter to it.

For the InGaAs models there is the choice between a fixed fiber input (FC) model allowing highly accurate fiber optic measurements and a model with free space input (1.035"-40 threaded and 25 mm unthreaded flange available).

For models with detector areas smaller than ? 0.4 mm, the use of fiber adapters is only recommended to a limited extent, since coupling losses and instabilities can occur. If the focus is on high-precision fiber optic measurements, using FC-models with fixed optical fiber input will usually give the best results.

All the OE-300 models can be easily mounted to standard M4 and 8-32 UNC threaded optical post holders via the optionally available post holder adapter type PRA-PAP.

APPLICATIONS

The following characteristics are valid for all models:

Offset adjustable by trimpot or external control voltage. LED overload indication. Output short-circuit protected. Power supply via 3-pin Lemo® socket. A mating connector is provided with the device. Optional power supply PS-15 available. For further information please view the datasheet or contact FEMTO.
