Product Manual Datasheet
Built-in Chilled Mirror Reference Hygrometer
Features
Simple operation and maintenance
Easy calibration of relative humidity sensors
Excellent chamber stability and uniformity
Manual control or optional straightforward automated set point programming
Humidity and temperature-controlled chamber
Generate 10 to 90% RH over +10 to +50°C temperature
Built in precision chilled mirror reference instrument
Transportable to allow on-site calibrations

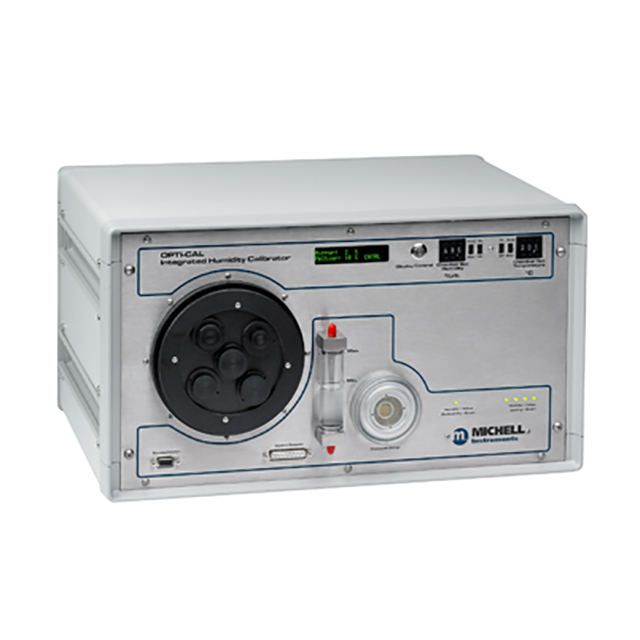

The OptiCal is a premium, self-contained calibrator for humidity sensors. It features an integrated chilled-mirror reference which enables the operator to perform calibrations that are traceable to national standards.
The calibration chamber accommodates up to 5 probes or sensors of any brand or model. The chamber is insulated, and temperature controlled for maximum stability and minimum temperature gradients.
Specifications
| Humidity | |
| Generated Range | 10 - 90% RH |
| Control Element Accuracy |
≤ ±1% RH (10-70% RH) ≤ ±1.5% RH (70-90% RH) |
| Stability | ±0.2% RH (20-80% RH) |
| Temperature | |
| Generated Range | +10 to +50°C (+50 to +122°F) |
| Accuracy | ±0.1°C (±0.18°F) |
| Accuracy | ±0.1°C (±0.18°F) |
| Chamber | |
| Ramp Rate |
+20 to +40°C (+68 to +104°F): 1.5°C / minute (2.7°F / minute) +40 to +20°C (+104 to +68°F): 0.7°C / minute (1.2°F / minute) |
| Control Element | Removable relative humidity sensor |
| Reference | |
| Accuracy |
Dew Point: ±0.2°C (±0.36°F) Temperature: ±0.1°C (±0.18°F) |
| Measurement Units |
Dew Point: (°C/°F), % RH Temperature: (°C/°F), gm-3, gkg-1, water activity (aW) |
| Outputs |
Analog: 4-20 mA or 0-20 mA over user-settable output Accuracy: ±0.2°C (±3.6°F) Digital: 500 Ω maximum load resistance Alarm: RS232 @ 9600 baud rate Volt free contact, 30 V, 100 mA maximum |
| General | |
| Probe Ports | Up to 5 - sensor body diameters 5 to 25mm (0.2 to 0.98") accommodated by port adapters |
| Chamber Volume | 2000cm3 (112.1in3) |
| Chamber Dimensions | 105 x 105 x 160mm (4.13 x 4.13 x 6.3") (h x w x d) |
| Instrument Dimensions | 290 x 520 x 420mm (11.4 x 20.5 x 16.5") (h x w x d) |
| Set-point Resolution | 0.1 for humidity and temperature |
| Displays | 2 line Vacuum Fluorescent Display |
| Supply | 85 to 264 V AC, 47/63 Hz, 150 V A |
| Weight | 20kg (44lbs) |
Suitable Applications
