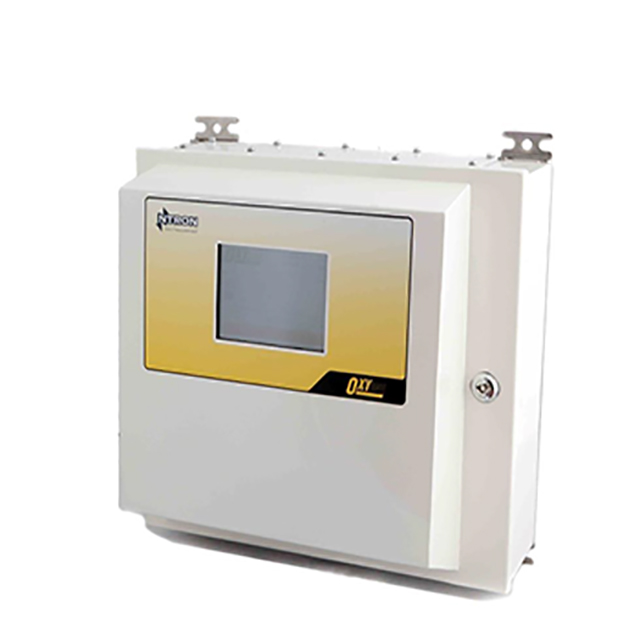

Oxygen Inerting System - Ntron Oxy-One 100/200 Description：

User’s Manual Oxy-One 100 Datasheet Oxy-One 200 Datasheet

Direct Control and Automated Oxygen Sensor Calibration

Features

Auto Calibration & Diagnostics LED

Colour Touch Screen, 5.7"

Single Sensor Input

Mode Feature

Data Logging

RS232/RS485 Communications

Password Protected Configuration

Multiple Digital / Analogue Outputs

User Configurable Addressable Alarms

Wall / Surface Mounting

Range Measurement Commissioning

Trend of Oxygen Measurement Historically

The Ntron OxyOne is designed to interface directly with Ntron supplied sensors or sampling systems including sensor and flow inputs.

The Analyser can control the automatic calibration of each Sensor independently via remotely located solenoid valves. All electrical interfacing with the Sensor or Sampling System is made through connection terminals and barriers supplied with the analyser.

The OxyOne has user selectable operating modes and includes a simulation/commissioning mode that allows the operator to test the system and various circuits without having to use test gases or sensors. A communication port allows high speed configuration and remote diagnostics.

The OxyOne Analyser provides flexibility for use in various applications with the same reliability and accuracy that has been consistent with the Ntron name. These applications include: Reactors, Mixing Vessels, Centrifuges, Mills & Dryers, Vessels & Vent Lines, Ambient Atmospheres, Conveying Systems.
