User's Manual

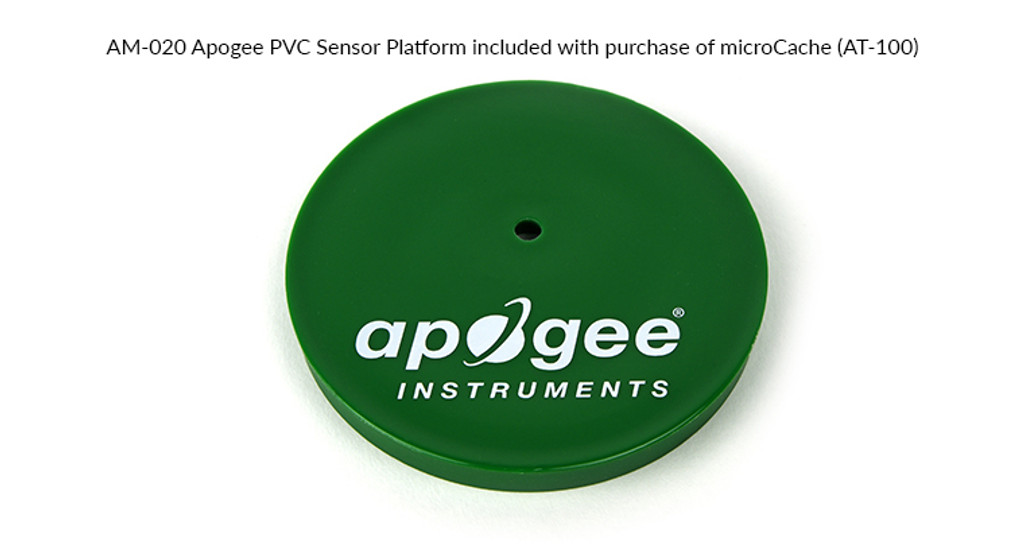

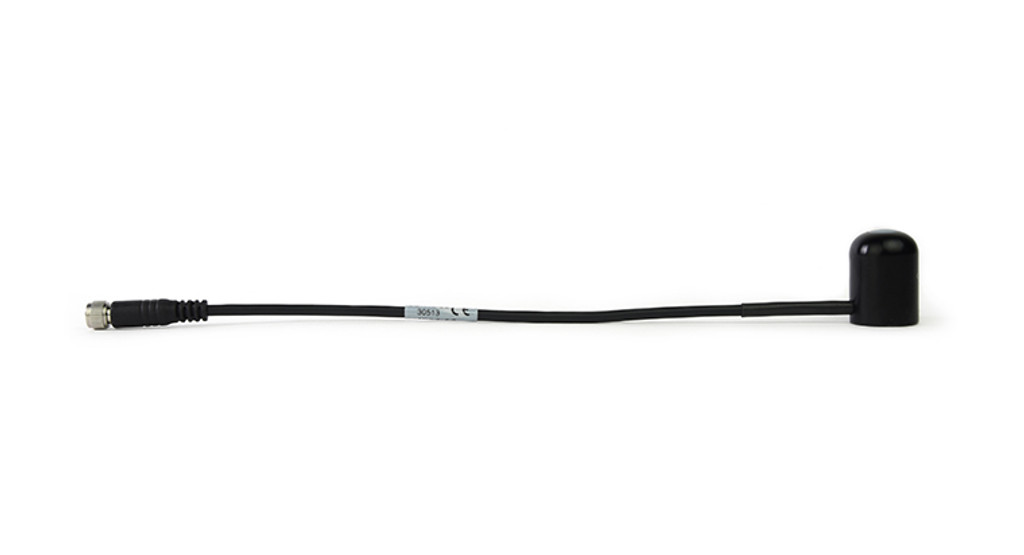

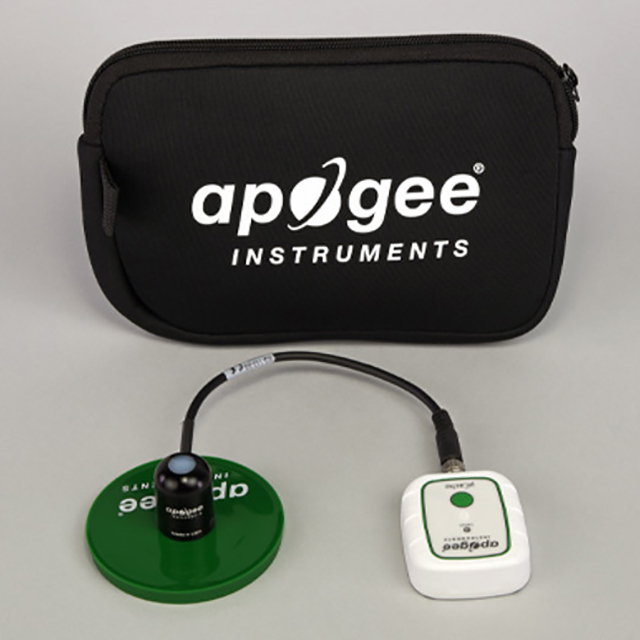

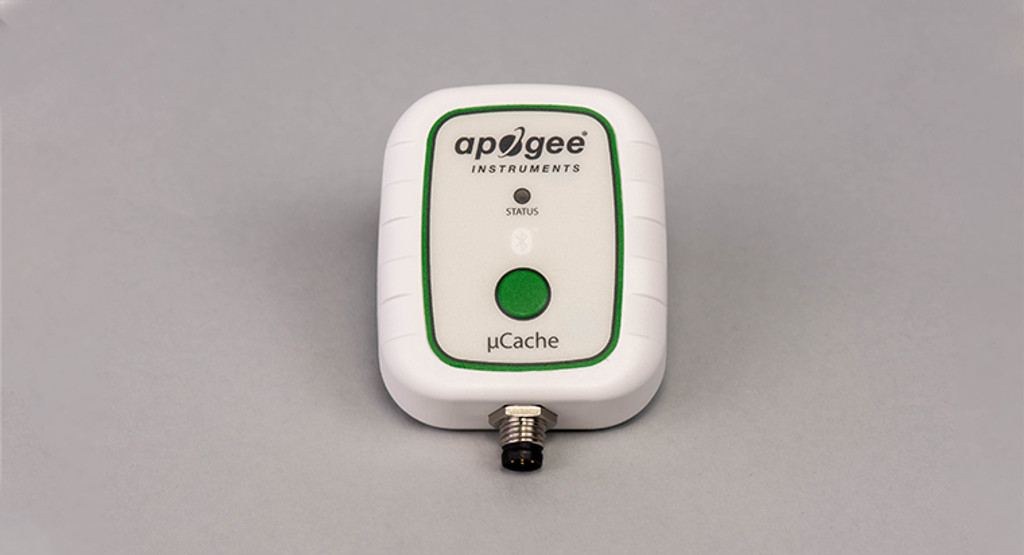

This promotional package includes a SQ-100X-SS Original X Quantum sensor with a 30cm cable, a microCache Bluetooth micro recorder, an AA-090 neoprene protective sleeve, an additional 2545 microCache battery, and an AM-020 Apogee PVC sensor platform. After pairing, these two devices are powerful tools for monitoring PAR.
| Power Supply | Self-powered |
| Sensitivity | 0.1 mV per μmol mˉ2 sˉ1 |
| Calibration Factor (Reciprocal of Sensitivity) | 10 μmol mˉ2 sˉ1 per mV |
| Calibration Uncertainty | ± 5 % |
| Calibrated Output Range | 0 to 250 mV |
| Measurement Repeatability | Less than 0.5 % |
| Long-term Drift (Non-stability) | Less than 2 % per year |
| Non-linearity | Less than 1 % (up to 2500 μmol mˉ2 sˉ1) |
| Response Time | Less than 1 ms |
| Field of View | 180? |
| Spectral Range | 370 to 650 nm (wavelengths where response is greater than 50 % of maximum) |
| Directional (Cosine) Response | ± 5 % at 75° zenith angle |
| Temperature Response | -0.04 % per ℃ |
| Operating Environment | 10 to 60 ℃; 0 to 100 % relative humidity; can be submerged in water up to depths of 30 m |
| Dimensions | 24 mm diameter, 33 mm height |
| Mass (with 5 m of cable) | 90 g |
| Communication Protocol | Bluetooth® Low Energy (Bluetooth 4.0+) |
| Bluetooth Range | ~45 m (line-of-sight) |
| Data Logging Capability | Averaging Interval: 1-60 minutes; Sampling Interval: ≥ 1 second |
| Data Log Capacity | Over 400,000 Entries (~9 months at a 1-minute logging interval) |
| Time Accuracy | ± 30 seconds per month at 0° C ~ 70° C |
| Battery Type | 2/3 AA 3.6 Volt Lithium Battery |
| Battery Life | ~1 year w/ 10-second sampling interval and an average of 5 minutes daily connected time; ~2 years w/ 60-second sampling interval and an average of 5 minutes daily connected time |
| Operating Environment | -40 to 85 ℃ |

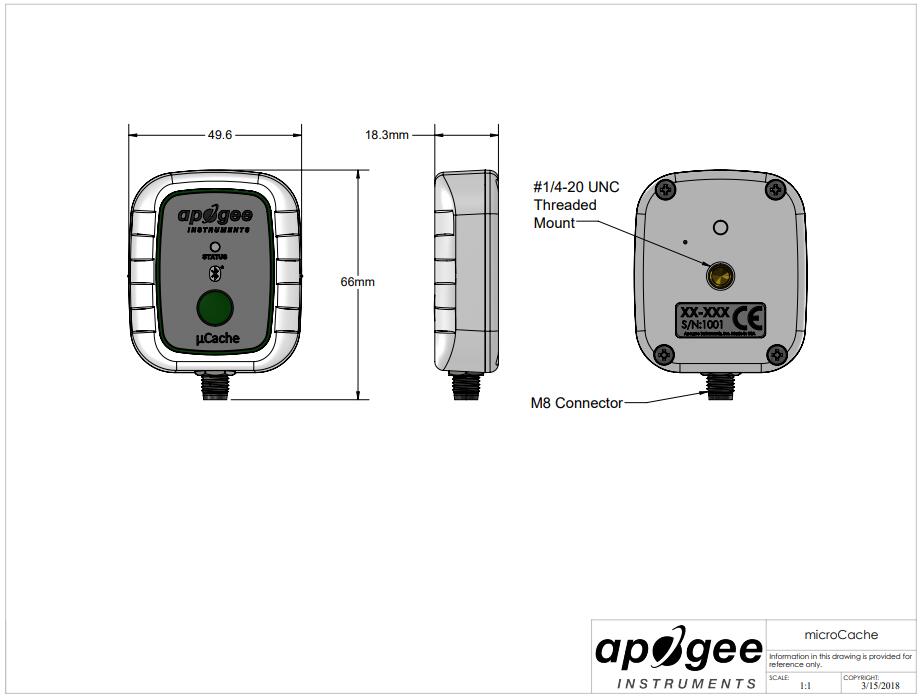

| Dimensions | 66 mm length, 50 mm width, 18 mm height |
| Weight | 52 g |
| IP Rating | IP67 |
| Connector Type | M8 |
| Bluetooth Module | BMD-340 Contains FCC ID: 2AA9B10 IC: 12208A-10 |
| ADC Resolution | 24 bits |
| Warranty | 4 years against defects in materials and workmanship |
