User's Manual Datasheet

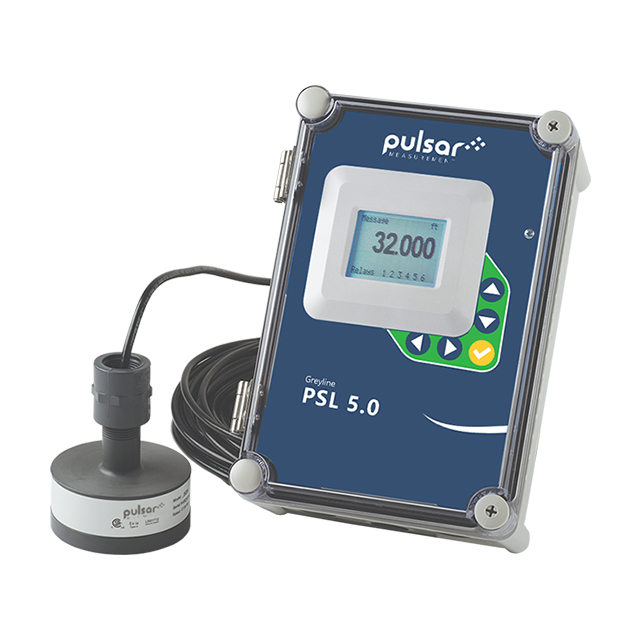

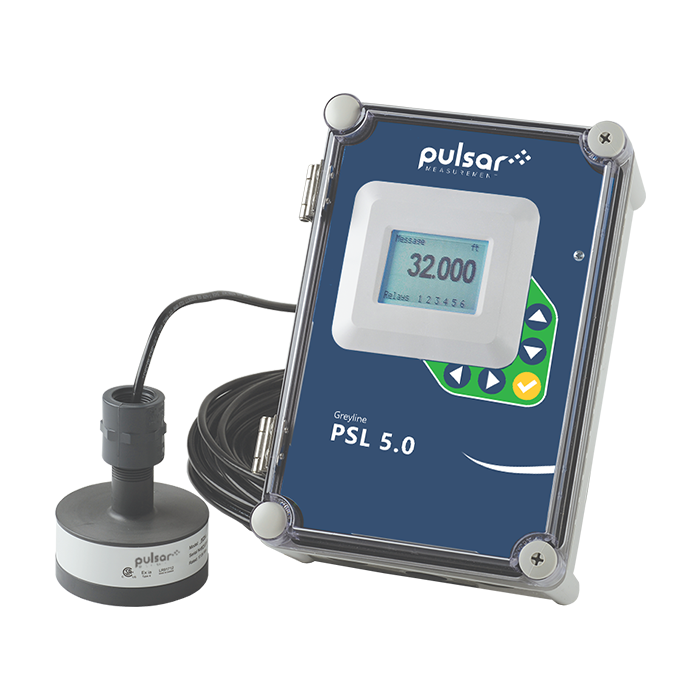

The PSL 5.0 Pump and Lift Station Level Controller is an ultrasonic level sensor that mounts above the liquid surface for accurate and reliable non-contacting level measurement. The PSL 5.0 is ideal for sewage pump stations, lift stations, wet wells, and tank level measurements. The unit includes six independently programmable control relays for pump or valve control, level alarms, dialers, temperature alarm, and echo loss alarms.
The easy-to-use simple menu system and built-in keypad can be used to program application parameters such as measurement ranges, relay set points, and pump alternation sequences. The PSL 5.0 also includes the ability to connect a submersible pressure sensor, or any other 4-20mA level sensor, for fail-safe hybrid sensing. Perfect for wastewater control, sump control, wet well level monitoring, and industrial applications where backup measurement sensors are required.
Features
Low Cost
Isolated 4-20mA Output (1000 ohm)
Large LCD Display
Programmable Signal Relay
Non-Contacting Ultrasonic Sensor or Optional Pressure Sensor
Built-in 2-Key Calibrator
Watertight, Dust-tight Enclosure
Specifications
| Electronics Enclosure | NEMA4X (IP 66) polycarbonate with clear, shatterproof cover |
| Accuracy | ±0.25% of range or 2 mm (0.08 in), whichever is greater |
| Display | white, backlit matrix - displays calibration menu, relay status, runtime reports, and sensor status |
| Calibration | Level or Range mode in selectable units |
| Programming | Built-in 5-button keypad, password protected |
| Power Input | 100-240 V AC 50/60 Hz, 2.4-5.6 W depending on options |
| Outputs | Isolated 4-20mA, 1000 ohm |
| Control Relays | 6 form 'C' dry contact relays rated 5 A SPDT; programmable level alarm and/or pump control modes, pump alternation/sequencing, failsafe/echo-loss, air temperature alarm |
| Surge Protection | AC power, 4-20mA, and ultrasonic sensor |
| Operating Temperature (Electronics) | -20 °C to 60 °C (-5 °F to 140 °F ) |
| PZ34 Sensor Specifications | |
| Maximum Range | 10 m (32 ft) - optional sensors for longer ranges |
| Deadband (Blanking) | Programmable, Minimum 406 mm (16 in) |
| Beam angle | 8° Locate 300 mm (1 ft) from wetwell sidewall for every 3 m (10 ft) depth |
| Operating Frequency | 46 KHz |
| Exposed Materials | PVC |
| Operating Temperature | -40 °C to 65 °C (-40 °F to 150 °F) |
| Operating Pressure | 0 bar to 1.35 bar (0 psi to 20 psi) maximum |
| Sensor Cable | RG62AU coaxial, 7.6 m (25 ft) standard length |
