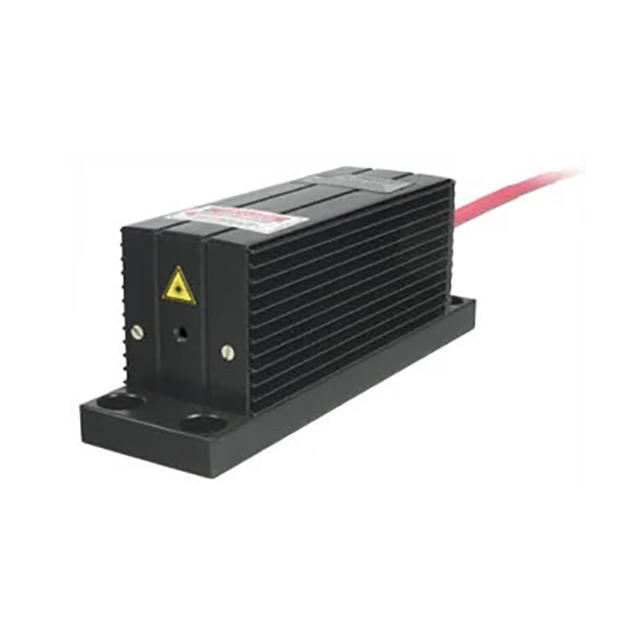

PULSELAS®-P Series Subnanosecond Passively Q-Switched DPSS MICROCHIP Lasers Description：

Datasheet

A wide range of passively Q-switched lasers with pulse durations below 1 ns and extremely high peak powers at 1064 nm with excellent TEM00 beam profile are offered by ALPHALAS. The PULSELAS®-P lasers feature proprietary microchip design. The monolithic laser cavity is permanently aligned and therefore extremely stable.

The high-energy models deliver more than 1.5 mJ pulses with pulse duration of 1 ns, resulting in the highest peak power >1.5 MW commercially available directly from an oscillator (without amplifiers) for microchip lasers. Various models operate with repetition rates up to 100 kHz and the average power ranges from 100 mW to 1 W.

Built-in frequency generator and external TTL triggering are standard features for most models. Optional conversion to green (532 nm) and ultraviolet (355 nm, 266 nm) is also available.

The extremely reliable and robust microchip design is perfect for advanced OEM industrial applications. The compact design is best suited for almost any system integration. Fiber-pumped options offer even more compactness and flexibility.

These unique lasers have an extremely broad spectrum of applications ranging from supercontinuum generation in photonic crystal fibers to ignition of combustion engines and micromachining.

Features

Passively Q-Switched

Extremely Compact

Proprietary Microchip Design

Subnanosecond Pulses at 1064 nm

The Highest Peak Power (>1.5 MW) & Pulse Energy (>1.5 mJ) Commercially Available, Directly from an Oscillator

Repetition Rates up to 100 kHz

Average Powers up to 1 W

Externally Triggerable with Low Jitter

Frequency Conversion to 532, 355 and 266 nm (Options)

Other Wavelengths (e.g. 946 nm, 1342 nm) with ns Pulses on Request

Applications

Material Processing

Micromachining

Marking & Cutting of Extremely Hard Materials (e.g. Diamonds)

Nonlinear Optics

Supercontinuum Generation

Time-Resolved Fluorescence Measurements

DNA-Analysis

LIDAR & Laser Ranging

Pollution Monitoring

Laser-Induced Breakdown- Spectroscopy (LIBS)

Ignition of Explosives, Combustion Engines & Gas Mixtures
