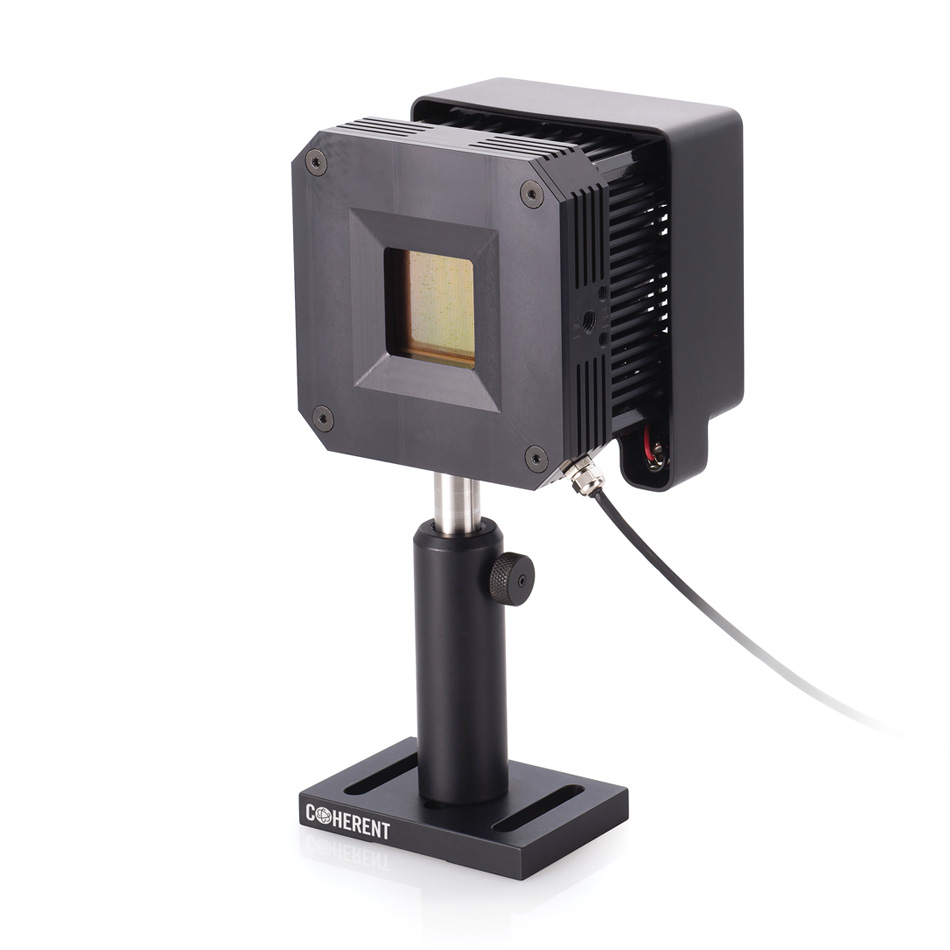

This PowerMax-Pro 150F HD sensor incorporates a fast thin-film detector technology that responds in tens of microseconds. This model is the fastest option in the PowerMax-Pro line and is intended for measuring lasers up to 150W. The 150F model designator represents a fan-cooled model.
The sensor is terminated in a SmartProbe DB25 cable and requires the LabMax-Pro SSIM meter (PN 1268881) to take advantage of its high-speed features. A USB-direct model (PN 1295920) is available.
Fast, thin-film transverse thermoelectric, fan-cooled power sensor for measuring lasers between 100 mW and 150W.
Key Features:
100 mW to 150W range
Fast thin-film detector
10 μsec rise time
30x30 mm active area
400 nm to 1100 nm; 9 μm to 11 μm spectral range
Fan-cooled
ISO 17025 accredited
