Datasheet User's Manual

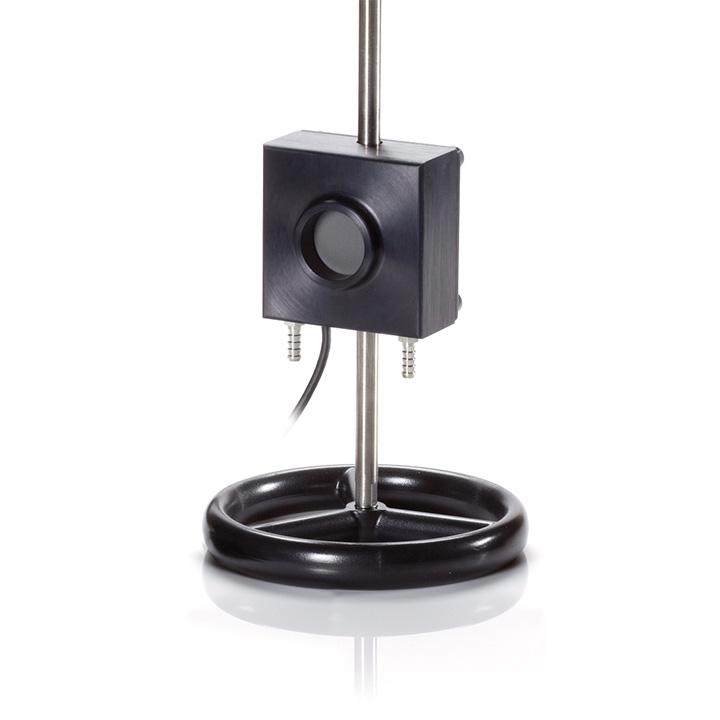

This PowerMax-RS LM-1000 sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. A DB25 model (PN 1098409) is available.
These unique position sensing thermopiles display the position of the incident beam on the sensor disk, in addition to measuring power. This information allows the user to safely and precisely align the sensor and the beam being measured. This is particularly useful for non-visible beams.
Water-cooled thermopile for measuring lasers up to 1000W with beam position measurement. Direct RS232 interface.
Key Features:
50W to 1000W range
38 mm diameter active area
Beam position measurement
Spectrally flat broadband coating
Compact OEM sensor
0.25 to 10.6 μm spectral range
Water-cooled
Direct RS232 interface
ISO 17025 accredited
Specifications
