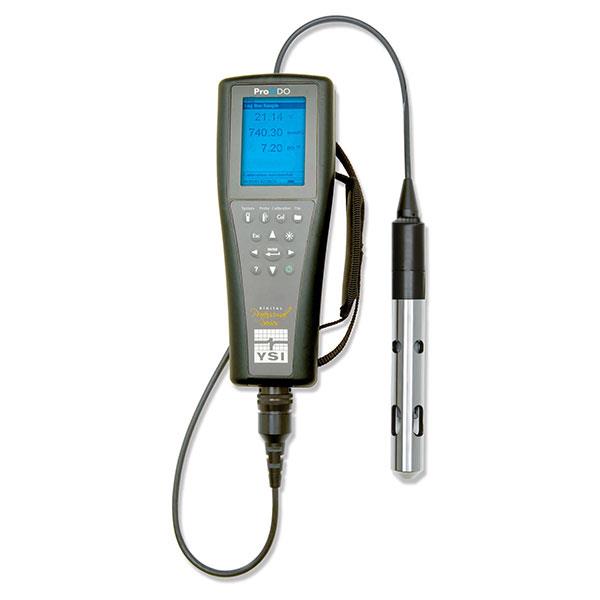

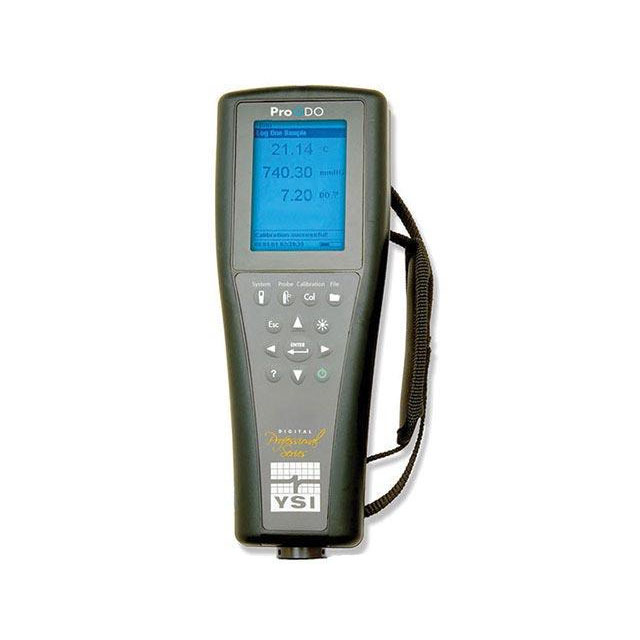

YSI ProODO Optical Dissolved Oxygen Instrument

Updated:2025-03-13

Brand:YSI
Model：ProODO
Description: The YSI ProODO and ProSolo dissolved oxygen meters utilize ODO? technology, an optical-based sensor, to measure dissolved oxygen. Optical-based sensors drift less than membrane-covered sensors and are
Data download

Feedback
WeChat

QQ

Online Service

Product Details

ProODO Optical Dissolved Oxygen Instrument overview：

user's manual

The YSI ProODO and ProSolo dissolved oxygen meters utilize ODO® technology, an optical-based sensor, to measure dissolved oxygen. Optical-based sensors drift less than membrane-covered sensors and are capable of holding their calibration for several months. In addition, ODO sensors require less maintenance, as there are no membranes to change and no electrodes to polish. ODO is a non-consumptive technology - oxygen is not consumed during the measurement. Therefore, no stirring is required for accurate measurements, resulting in accurate data collection every time.

The highlights of the ProODO Optical Dissolved Oxygen (DO) Instrument are as follows：

Field Worthy

The ProODO instrument meets the demands of true field work. The instrument is rated waterproof to IP-67 standards even without the battery cover on and the cable disconnected. Our rigorous instrument testing includes 1-meter drop tests from all angles to ensure field-durability. Other tough features include:

3-year instrument warranty and a 2-year cable and probe warranty
Metal Military Spec (MS) connectors
Rubber over-molded case
Field tested cables
Rugged, weighted probe guard
Made in the USA

EPA Approved Methodology

The optical BOD (OBOD) sensor utilizes EPA approved methodology for wastewater compliance reporting of BOD and CBOD, while ODO probe/cable assemblies utilize EPA approved methodology for compliance reporting of DO.

Versatile

The ProODO provides versatility with numerous benefits from the following features:

5,000 data-set memory
Expanded DO range of 0-500% (0-50 mg/L)
OBOD optical, self-stirring BOD probe for the lab
One instrument for the lab and field
Calibration password protection
Backlit display and keypad
Graphic display visible with polarized sunglasses
Multiple languages (see specifications)
100 folders and site lists for logging data with user defined fields

Convenient

Connect any length cable and probe to the ProODO digital instrument and use the convenient cable management kit to keep everything simple and organized. Convenient features include:

Cable options from 1- to 100-meters including a cable management kit on 4-meter and longer cables; laboratory BOD probe
Detailed on-board Help
Detailed GLP data (calibration records)
Digital based sensors are automatically recognized by the instrument and hold their calibration
USB and communication saddle included
Soft and hard-sided carrying cases available
Flow cell available
Cable weight available
Belt clip available
Tripod available

Specifications：

Accuracy	Dissolved Oxygen 0 to 200% air saturation ± 1% of the reading or ± 1% air saturation, whichever is greater; 200 to 500% air saturation ± 10% of the reading; 0 to 20 mg/L ± 0.1 mg/L or ± 1% of reading, whichever is greater; 20 to 50 mg/L ± 10% of the reading \| Temperature ± 0.2°C \| Barometer ± 1.5 mmHg from 0 to 50°C
Certifications	RoHS, CE, WEEE, C-Tick, VCCI, IP-67 (waterproof), 1-meter drop test, Made in USA
Connectivity / Communications	USB 2.0 for data transfer and user-upgradeable instrument firmware. Communications saddle, USB cable and Data Manager software included.
Connector	Metal MS (military spec) waterproof with bayonet lock
Data Management	5000 data set memory in ProODO with 100 user-defined sites and site names. Data Manager desktop software included.
Desktop Software Compatible	Data Manager desktop software included. Minimum PC requirements - Windows 2000 with SP4 (minimum) or XP with SP2 (minimum), Vista 7 or Windows 8 \| 300 MHz or higher Pentium-compatible CPU \| 128 MB of RAM or higher \| 80 MB or more of free hard-disk space.
Digital / Digital Sensors	Yes
Equipment used with	ProODO cable and probe assemblies, ProOBOD
GLP Compliance	Yes, detailed GLP information is stored and is available to view, download or print
Graphic Display	Graphic display can be seen in any lighting condition and with polarized glasses \| Backlit display AND keypad \| Includes detailed on-board Help
Languages	Japanese, Polish, English, Spanish, German, French, Italian, Norwegian, Portuguese
Logging Capabilities	Single or Continuous
Measurement Range	Dissolved Oxygen 0 to 500% air saturation, 0 to 50 mg/L \| Temperature -5 to 70°C (DO compensation from -5 to 50°C) \| Barometer 375 to 825 mmHg \| Salinity Input Range 0 to 70 ppt (manual input)
Memory	100 GLP files, 5,000 data sets (data, date, time, user-defined info)
Multiparameter	Yes - Dissolved Oxygen, Temperature, and Barometric Pressure
Operating Temperature	-10 to 60°C
Parameters Measured	Dissolved Oxygen with an optical sensor, Temperature, Built-in barometer
Power	2 alkaline C-cells provide 80 continuous hours at ambient temperature without backlight, ProComm II saddle provides USB power or optional wall power, cigarette lighter, and universal cell phone charger options
Resolution	Dissolved Oxygen 0.1% air saturation, 0.01 or 0.1 mg/L (auto-scaling) \| Temperature 0.1°C \| Barometer 0.1 mmHg
Sampling	Yes
Storage Temperature	-20 to 70°C
Unit of Measure	Dissolved Oxygen - % air saturation and mg/L \| Temperature - °C, °F, K \| Barometric Pressure - mmHg, inHg, mBar, Psi, KPa
User Calibratable	Yes
User Replaceable	Yes - cable assembly with built-in probe is replaceable
Warranty	3-year instrument; 2-year field cables, 1-year sensor cap
Waterproof	floats, IP-67 (even with the battery cover off and cable disconnected)
