Ophir’s 2 channel Pulsar interface turns your PC or laptop into a full fledged Ophir multi-channel laser power/energy meter. Just install the software, plug the laser measurement sensor into the Pulsar and the USB cable from the Pulsar to the PC USB port. With the Pulsar-2, you can connect up to 2 laser measurement sensors to each module, monitor each pulse at up to 25 kHz and utilize external trigger.
From laser measurement sensor to interface to PC.
2 channel model
Plug and play with most Ophir laser measurement sensors.
Record every energy pulse at up to 25 kHz.
Measure missing pulses & trigger output with external trigger.
Log power and energy, average, statistics, histograms and more with included StarLab application.
System Integrator Tools included: LabVIEW VIs, COM Object Interface.

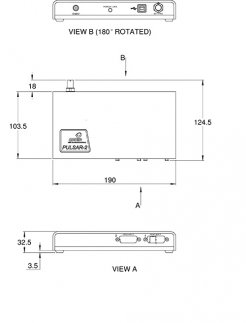

Pulsar-2 Drawing
| Thermal Sensors | Yes |
| Photodiode Sensors | Yes |
| Pyroelectric Sensors | Yes |
| BeamTrack Sensors | No |
| Statistics | Yes |
| Analog Out | No |
| Communication | USB |
| Trigger Input & Output | Yes |
| Power Supply | 12V Power Supply (included) |
| Ethernet | N/A |
| RS232 | N/A |
| GPIB | N/A |
| USB | 25,000Hz |
| Bluetooth | N/A |
| On-Board Data Storage | No |
| Automation Interface | Yes |
| Labview VI's | Yes |
