Product Manual Datasheet
Low Maintenance Quartz Microbalance Technology
Features
Precision measurement from 0.1 to 2000ppmV
Fast response in both dry to wet and wet to dry transitions
Simple, low cost, on-site maintenance with long service intervals
Dryer can be replaced by the user in 10 minutes
Accuracy of 0.1ppmV or 10% of reading, whichever is greater
Intuitive user interface
Ethernet or USB digital communications
SD card data logging
Optional internal sample handling and bypass loop

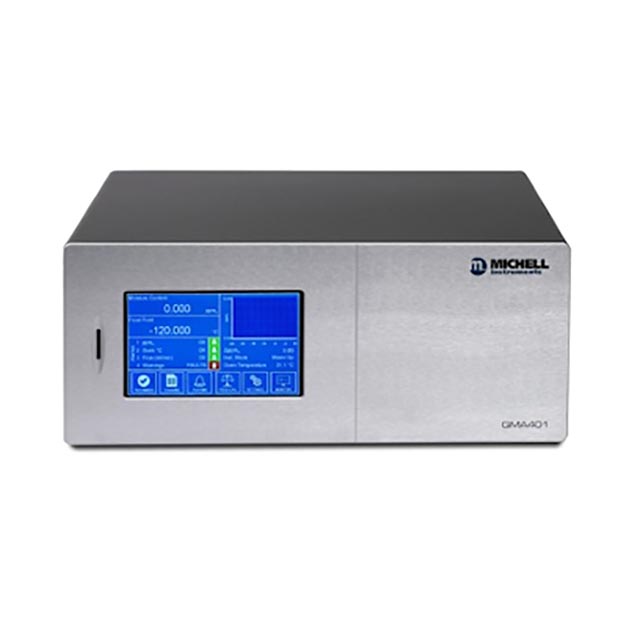

The next generation Advanced Quartz Crystal Microbalance analyzer from Michell Instruments is designed to provide reliable, fast and accurate measurement of trace moisture content in a variety of applications where keeping moisture to a minimum is of critical importance.
The analyzer provides consistently accurate measurements of trace moisture. This consistency is achieved using a self-calibration system, which adjusts the sensor with reference to an internal moisture generator. The moisture generator is supplied with a calibration traceable to NPL and NIST, so long term stability of its measurements is guaranteed.
Specifications
| Performance | |
| Measuring technology | Fast Response Quartz Crystal Microbalance |
| Calibrated range* | 0.1 ... 700 ppmV |
| Measurement range | 0.1 ... 2000 ppmV |
| Accuracy |
±10% of reading from 1 to 2000 ppmV 0.1 ppmV between 0.1 and 1 ppmV |
| Repeatability |
±5% of reading from 1 to 2000 ppmV ±0.1 ppmV between 0.1 and 1 ppmV |
| Limit of detection | 0.1 ppmV |
| Available units | ppmV, ppmW, mg/Nm3, vapor pressure (Pa), dew point (°C/°F), lb/MMscf |
| Response speed |
T63 <2 mins to step change in either direction T95 <5 mins to step change in either direction |
| Automatic calibration | Internal moisture generator source calibrated traceable to NPL and NIST |
| Sensitivity | 0.01 ppmV or 1% of reading, whichever is greater |
| Electrical Specifications | |
| Supply voltage | 85 ... 264 V AC, 47/63Hz |
| Max power consumption | 150 VA |
| Alarms |
1 x System alarm, volt-free change-over FORM C) 3 x process alarms, selectable for various parameters, volt free changeover (FORM C) |
| Communications |
Analog Outputs: 2 channels, user selectable 4 ... 20 mA or 1 ... 5 V Digital Communications: RS485/USB Modbus RTU, Ethernet Modbus TCP |
| Data logging | Direct logging to SD card or PC via application software |
| Local interface | 7” color touch screen LCD |
| Operating Conditions | |
| Inlet pressure |
User-controlled to 1 barg With optional inlet pressure regulator: 300 barg max |
| Outlet pressure | Atmospheric |
| Sample flow requirement | 300ml/min total flow without bypass |
| Sample gas temperature | 0 ... +100 °C |
| Operating environment | +5 ... +45 °C up to 90 % rh |
| Mechanical Specifications | |
| Enclosure | 19” Rackmount, 4U x 434mm |
| Gas connections | 1/4” VCR(M) |
| Weight | 13.5 kg |
Suitable Applications
