Process Moisture Analyzer - Michell QMA601 Description：

Product Manual Datasheet

Self-Calibrating Fast Moisture Measurement

Features

Fast and reliable measurement from 0.1 to 2000ppmV

Accuracy of ±0.1ppmV at < 1ppmV and 10 % of reading from 1 to 2000ppmV

Maintenance free for 3 years

Built-in verification of customer process gas

IECEx, ATEX, UKCA, TR CU Ex certified for Exd flameproof, cQPSus certified for explosion proof

Intuitive color HMI with touch-screen keypad; no ‘hot work’ permit required

14 internal alarms

21 predefined carrier gases and 3 user-defined gases

Proven Michell Instruments quality: 40 years of expertise in moisture measurement built into the design

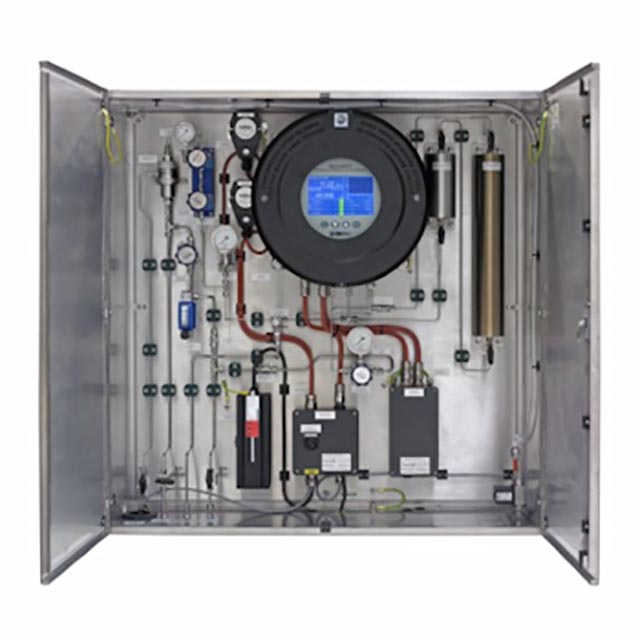

The QMA601 Process Moisture Analyzer provides highly reliable, fast and accurate measurement of moisture content in a wide variety of carrier gases. It has a lower detection limit of 0.1 ppmV with reliable accuracy at sub-ppm trace moisture levels. Using Michell’s latest developments in Quartz Crystal Microbalance technology the analyzer measures moisture levels effectively even in gases with changing background compositions. It is fully certified for use in hazardous areas.

The QMA601 requires only minimal routine maintenance to ensure low cost of ownership. It features an intuitive ‘through the glass’ touch screen interface which is both easy to use and also means that the analyzer can be interrogated and configured without the need for a hot works permit.

QMA601 is suitable for use with natural gas containing up to 20 % hydrogen with no further modification required.

Specification

Suitable Applications
