User's Manual Technical Drawing

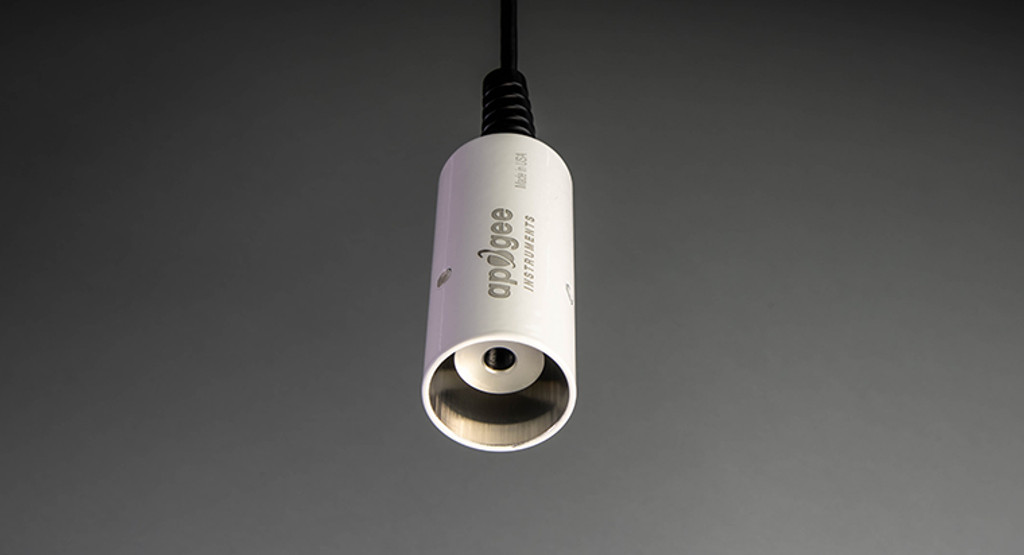

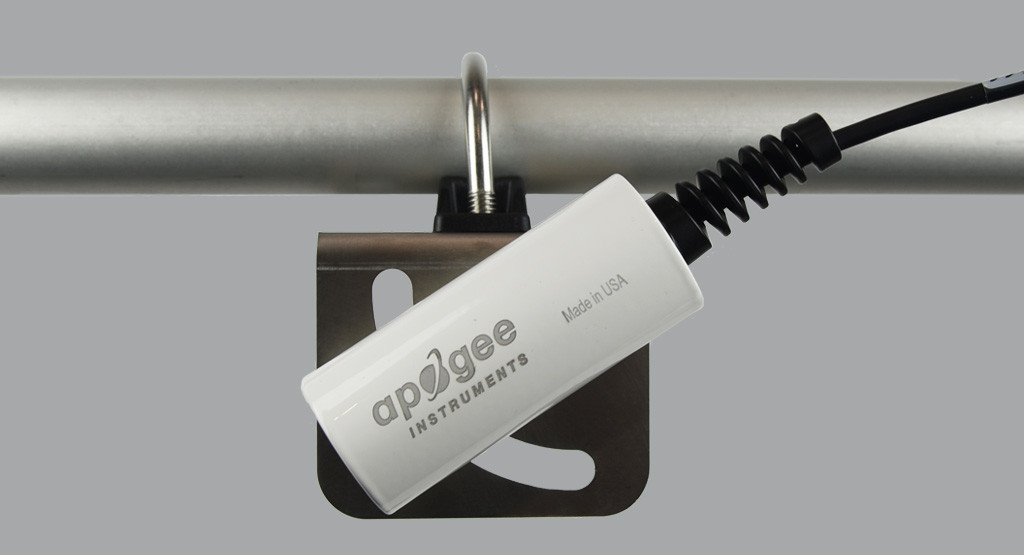

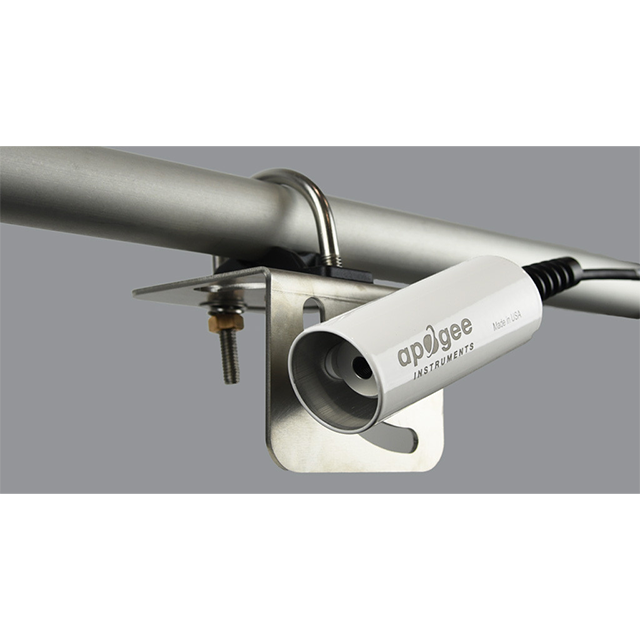

The SIF-111 is a fast response model infrared radiometer with a 0.2 second response time. The analog sensor is un-amplified and has a voltage output and high-quality cable terminating in pre-tinned pigtail leads for easy connection to dataloggers and controllers. The sensor has a 22° half-angle field of view. Typical applications include plant canopy temperature measurement for use in plant water status estimation, phenotyping, phenomics, road surface temperature measurement of determination of icing conditions, and terrestrial surface (soil, vegetation, water, snow) temperature measurement in energy balance studies. Sensor includes IP68 marine-grade stainless-steel cable connector 30 cm from head to simplify sensor removal and replacement for maintenance and recalibration. The SIF-111 is designed to be mounted with an Apogee AM-250 commercial-grade mounting bracket.

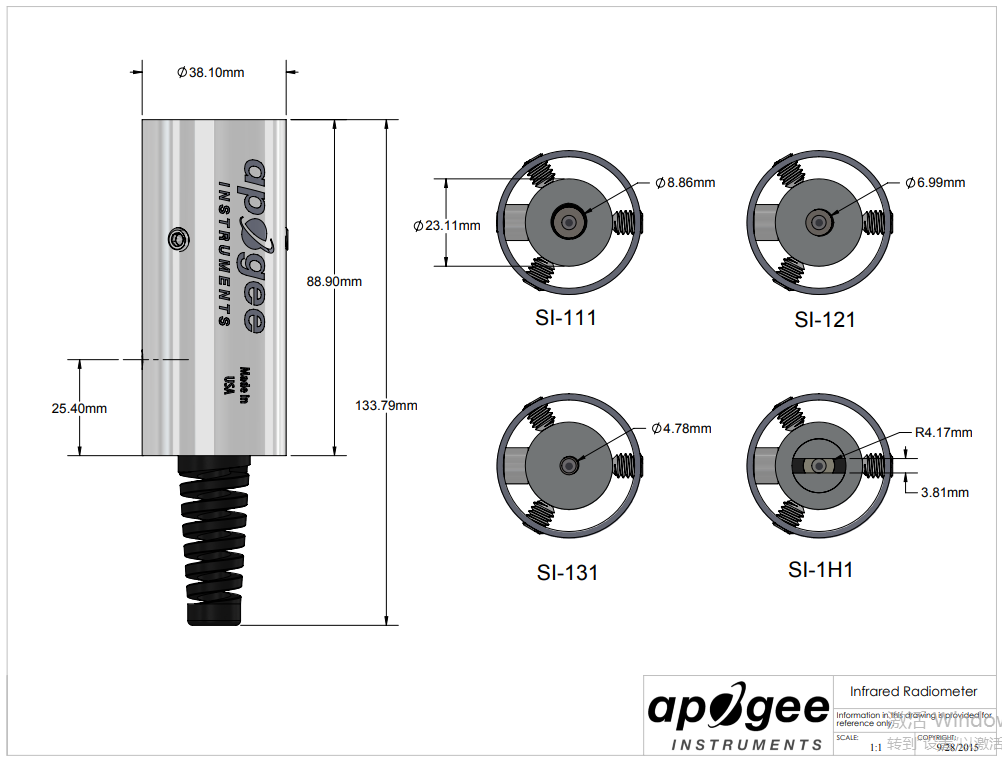

SIF-111 Drawing
| Approximate Sensitivity | 15 μV per C |
| Output from Thermopile | Approximately -0.825 to 0.825 mV for a temperature difference from -55 to 55 C |
| Output from Thermistor | 2500 mV excitation (typical, other voltages can be used) |
| Input Voltage Requirement | 0 to 2500 mV (typical, depends on input voltage) |
| Calibration Uncertainty (-30 to 65 C) | 0.2 C |
| Calibration Uncertainty (-40 to 80 C) | 0.5 C |
| Measurement Repeatability | Less than 0.05 C |
| Stability (Long-term Drift) | Less than 2 % change in slope per year when germanium filter is maintained in clean condition% |
| Response Time | 0.2 s, time for detector signal to reach 95 % following a step change |
| Field of View | 22? half-angle |
| Spectral Range | 8 to 14 μm; atmospheric window |
| Operating Environment | -50 to 80 C; 0 to 100 % relative humidity (non-condensing) |
| Dimensions | 23 mm diameter, 60 mm length |
| Mass | 190 g (with 5 m of lead wire) |
| Cable | 5 m of shielded, twisted-pair wire with TPR jacket (high water resistance, high UV stability, flexibility in cold conditions), additional cable available |
| Warranty | 4 years against defects in materials and workmanship |
| Manufactured | Made in the USA |
