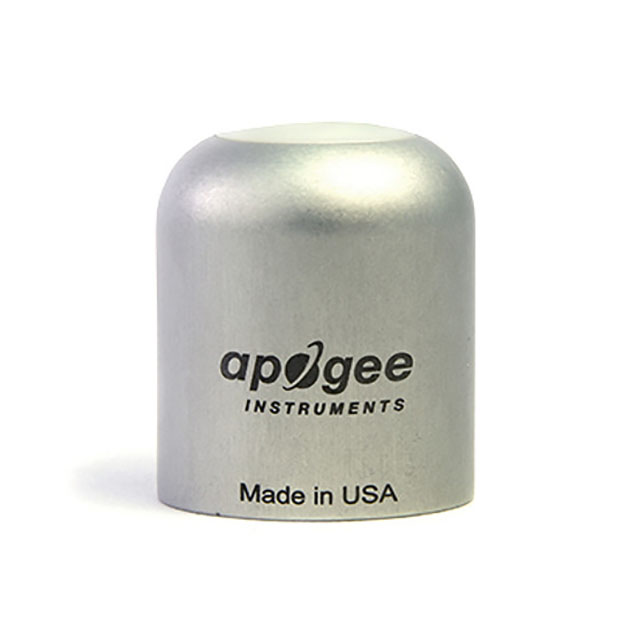

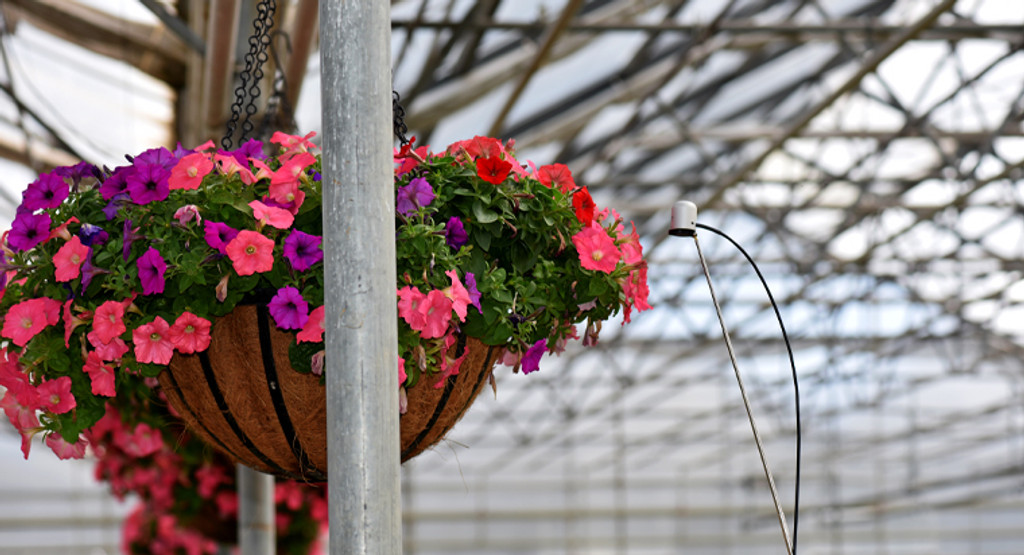

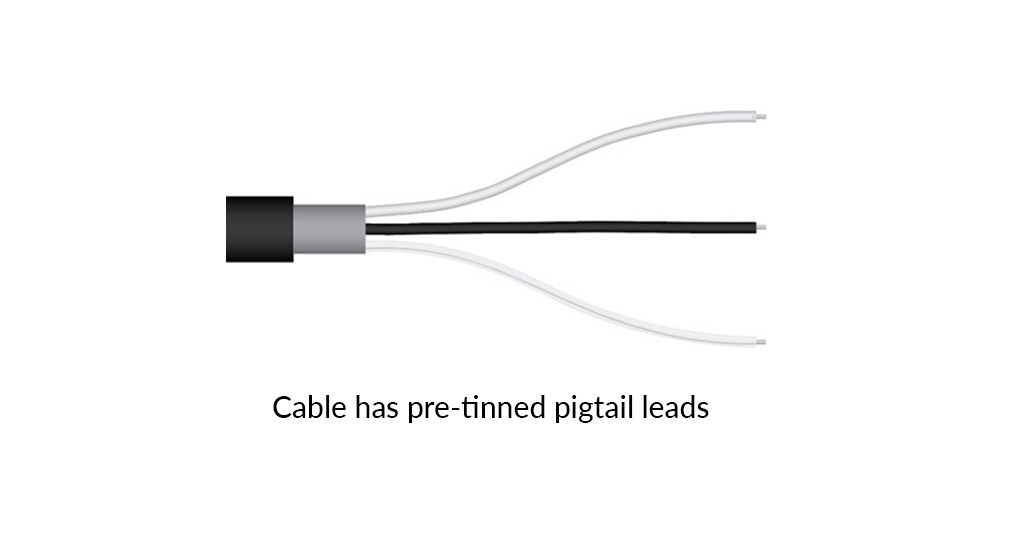

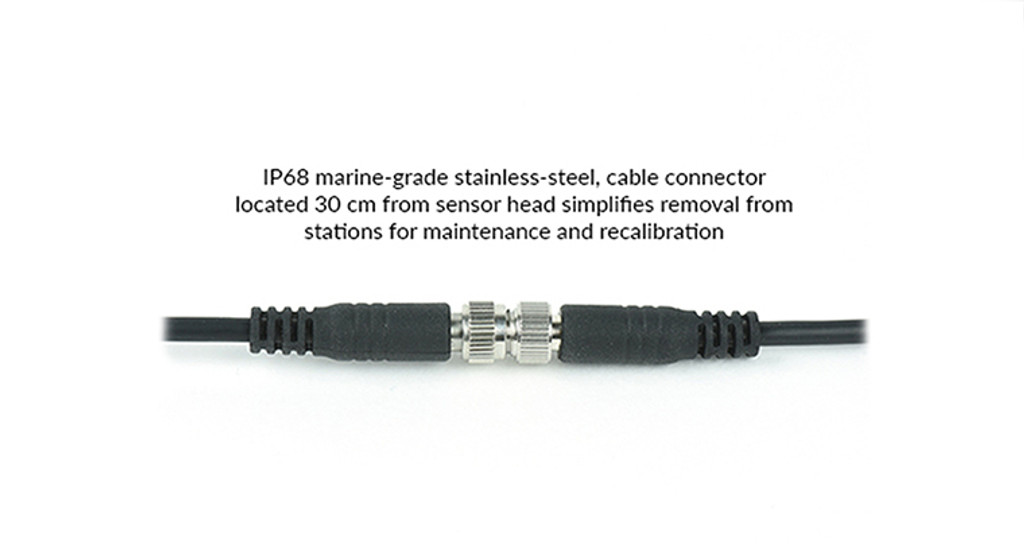

Apogee's newest, cutting-edge ePAR sensor was created in 2021 as an upgrade to our ePFD sensor and designed to measure the newly defined 400-750 nm ePAR radiation range that research has shown to be photosynthetically active, beyond the traditional 400-700 nm range. The SQ-610 ePAR sensor is a self-powered sensor. The sensor features a rugged, aluminum housing that is fully-submersible and built to withstand harsh conditions, and high-quality cable terminating in pre-tinned pigtail leads for easy connection to dataloggers and controllers. The sensor cable includes an IP68 marine-grade stainless-steel cable connector to simplify sensor removal and replacement from permanent installations for maintenance and calibration. Typical applications of ePAR sensors include measuring total ePAR intensity over plant canopies in all growing environments, monitoring and adjusting grow lights, and researching plant morphogenic activity and photobiology. Many next generation LED fixtures, the sun, and other light sources emit these newly confirmed Far-red photosynthetic wavelengths, but they have not been measurable by traditional 400-700 nm PAR meters until now.

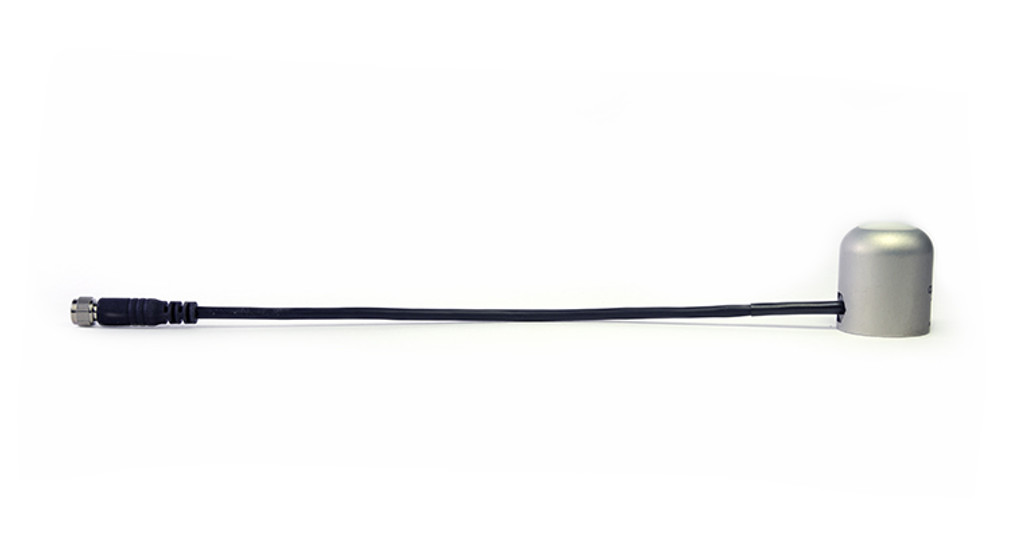

The analog version of this sensor (SQ-610) comes with the inline cable connector placed 30 cm from the sensor head for either standard use as a long-cable pigtail sensor, or for use with our microCache Bluetooth Micro Logger by unscrewing the connector, discarding the long section of cable and then screwing the sensor to the mating connector on the microCache.
| Power Supply | Self-powered |
| Sensitivity | 0.01 mV per μmol mˉ2 sˉ1 |
| Calibration Factor | 100 μmol mˉ2 sˉ1 per mV |
| Calibration Uncertainty | ± 5 % |
| Measurement Range | 0 to 4000 μmol mˉ2 sˉ1 |
| Measurement Repeatability | Less than 0.5 % |
| Calibrated Output Range | 0 to 40 mV |
| Long-term Drift (Non-stability) | Less than 2 % per year |
| Non-linearity | Less than 1 % (up to 4000 μmol mˉ2 sˉ1) |
| Response Time | Less than 1 ms |
| Field of View | 180? |
| Spectral Range | 400 to 750 nm ± 5 nm (wavelengths where response is greater than 50 % of maximum) |
| Directional (Cosine) Response | ± 2 % at 45?; ± 5 % at 75? zenith angle |
| Azimuth Error | Less than 0.5 % |
| Tilt Error | Less than 0.5 % |
| Temperature Response | -0.11 ± 0.04 % per C |
| Uncertainty in Daily Total | Less than 5 % |

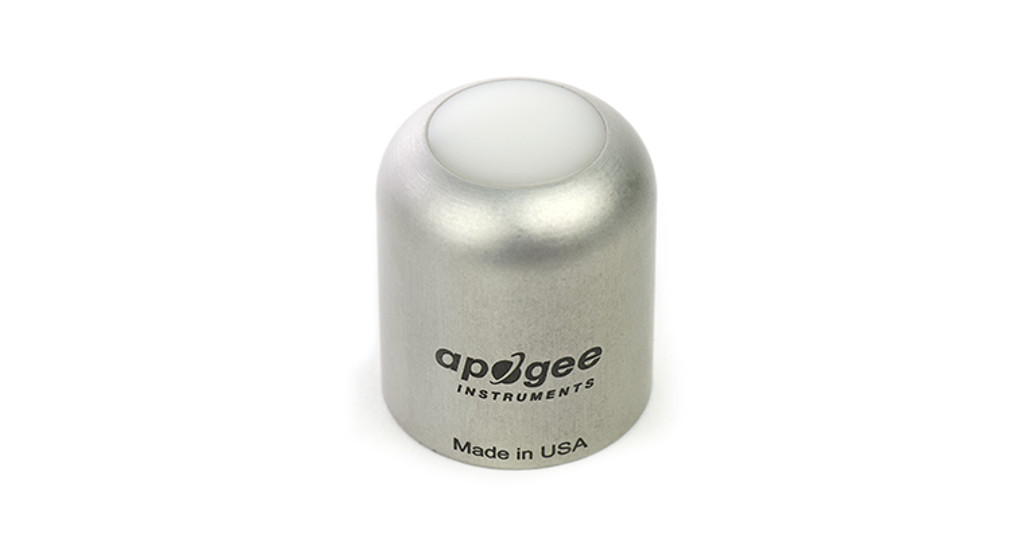

| Housing | Anodized aluminum body with acrylic diffuser |
| IP Rating | IP68 |
| Operating Environment | -40 to 70 C; 0 to 100 % relative humidity; can be submerged in water up to depths of 30 m |

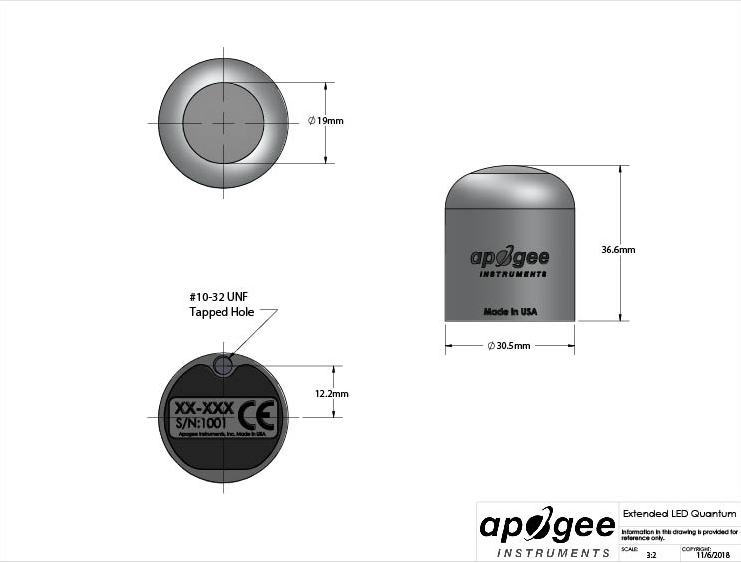

| Dimensions | 30.5 mm diameter, 37 mm height |
| Mass | 140 g |

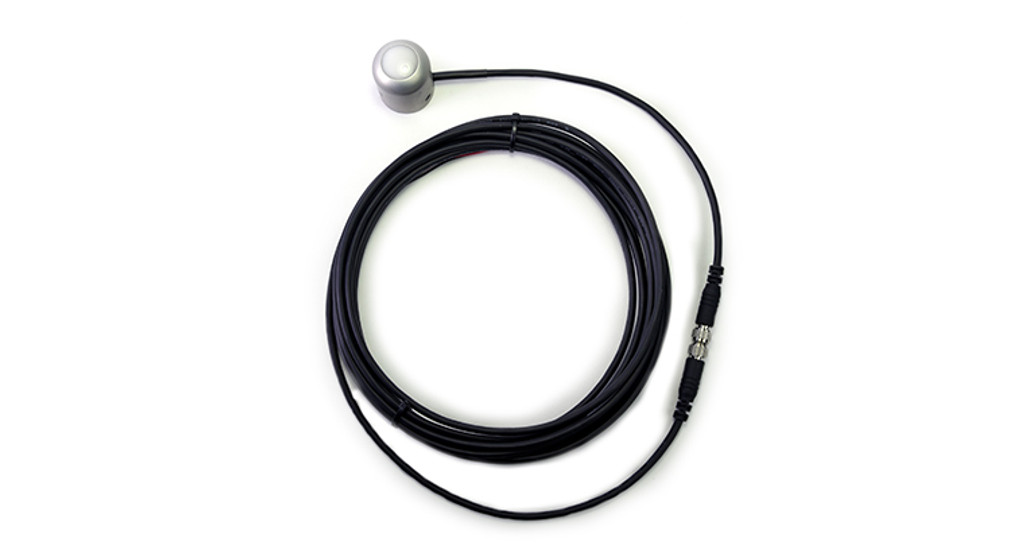

| Cable | 5 m of two conductor, shielded, twisted-pair wire; TPR jacket; pigtail lead wires; stainless steel (316), M8 connector located 25 cm from sensor hea |
| Warranty | 4 years against defects in materials and workmanship |
| Manufactured | Made in the USA |
