SU-200 Specification Sheet

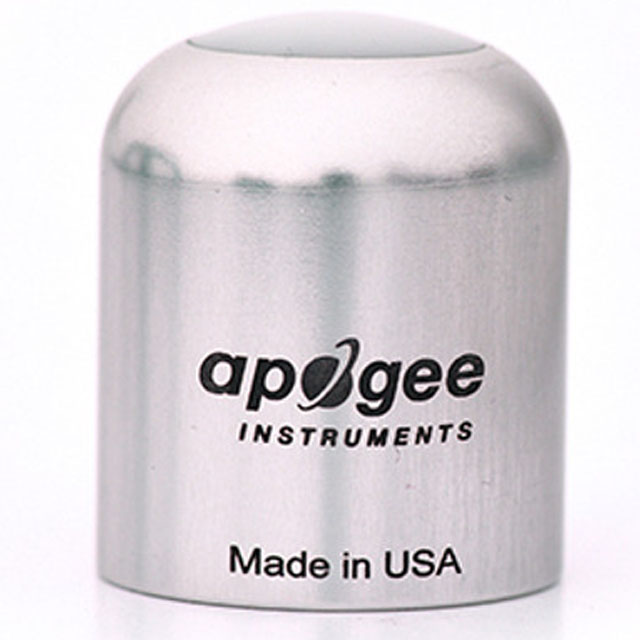

The SU-202 is an amplified UV-A sensor with a 0 to 2.5 V output and high-quality cable terminating in pre-tinned pigtail leads for easy connection to dataloggers and controllers. The sensor offers a low-cost option for detecting UV radiation from 300 to 400 nm and is calibrated in energy flux units of Watts per square meter. Typical applications include monitoring the filtering ability and stability of various materials, measuring UV-A radiation in outdoor environments and laboratory use, and monitoring UV radiation in horticultural operations environments. Sensor includes IP68 marine-grade stainless-steel cable connector to simplify sensor removal and replacement for maintenance and recalibration.
| Power Supply | 5 to 24 V DC |
| Output (sensitivity) | 25 mV per W m?2; 8.33 mV per μmol m?2 s?1 |
| Calibration Factor (reciprocal of sensitivity) | 0.04 W m?2 per mV; 0.12 μmol m?2 s?1 per mV |
| Calibration Uncertainty | ± 5 % |
| Output Range | 0 to 2.5 V |
| Measurement Range | 0 to 100 W mˉ2 |
| Measurement Repeatability | Less than 0.5 % |
| Long-term drift | Less than 2 % per year |
| Non-linearity | Less than 1 % |
| Response Time | Less than 1 ms |
| Field of View | 180° |
| Spectral Range | 305 to 390 nm (wavelengths where response is greater than 10 % of maximum) |
| Directional (Cosine) Response | ± 2 % at 45°; 5 % at 75? |
| Temperature Response | Less than 0.1 % per C |
| Operating Environment | -40 to 70 C; 0 to 100 % relative humidity |
| Dimensions | 30.5 mm diameter, 37 mm height |
| Mass (with 5 m of cable) | 140 g |
| Cable | 5 m of shielded, twisted-pair wire; TPR jacket (high water resistance, high UV stability, flexibility in cold conditions); pigtail lead wires; stainless steel (316), M8 connector |
| Warranty | 4 years against defects in materials and workmanship |
| Manufactured | Made in the USA |
