USB2.0 High-Speed 2048-Pixel 12-Bit CCD Line Camera with External Trigger Description：

Datasheet

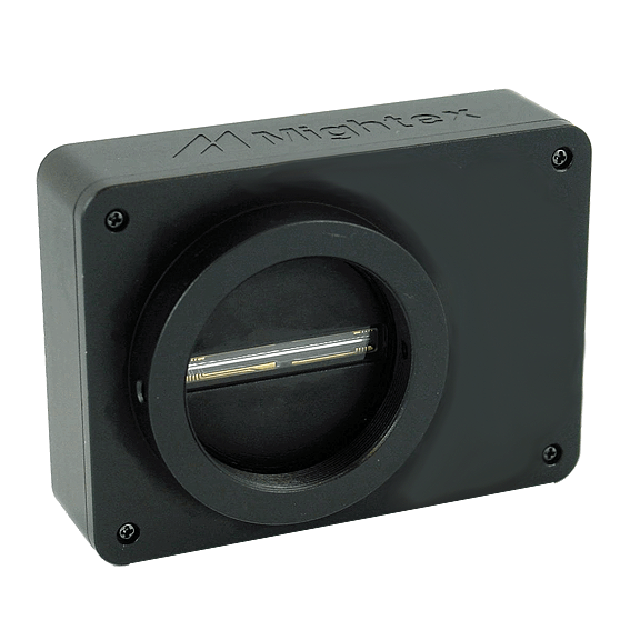

Mightex’s TCN/TCE-1209-U line camera is a cost-effective high-performance monochrome line CCD camera, based on a single-line, 2048-pixel CCD chip with USB2.0 (480 Mb/s) interface. CCD line cameras have several advantages over their area-array counterparts, including the high optical linear resolution that allows systems developers to use the cameras to capture two-dimensional (2-D) images by moving the object or the CCD perpendicularly to the scan line. The TCN/TCE-1209-U is a compact linear camera ideal for a variety of OEM applications in industry process control, optics, biology, spectroscopy and reflection imaging. Setting up the TCN/TCE-1209-U line camera is very easy: the user simply installs the application software (included in the shipping package) and then connects the line camera to the PC using a USB cable. There is no need to install a DAC card, and no external power supply is required. A full-featured SDK and a Linux driver are also available.

Features

USB2.0 (480Mb/s) Compatible

Board level and enclosed

No External Power Required

Optional F-mount lens adapter (P/N: ACC-LCE-F)

Optical Integration Time Adjustable from 300us to 3.3s

2048 square Pixel Silicon Linear CCD Array

(14m x 14μm pixel size)

12-Bit A/D Converter

High Scan Rate (up to 3,300 scans/second)

Ext. Trigger Capability

4 GPIO Pins

SDK for user applications

Linux driver

Demo Graphical User Interface

Compatible to Windows 2000, XP, Vista, 7/8/10

Applications

Industrial Process Control

Machine Vision

Specifications

* Frame Rate is dependent on exposure time setting. When the exposure time is set to 0.3ms, the camera can achieve 3,300 scans/second in Continuous mode.

Product Weight:

TCE-1209-U: 233g

TCN-1209-U：105g

TCN-1209-UW：105g

SDK Features

* SDK will provide call back, which will send user Frame data and the related attributes of each frame. Plug and Play is not recommended. The attributes include: Exposure time, Time Stamp, Trigger Event Count and Over Exposure Flag.
