Gentec-EO UP52N-100H-QED-D0 Thermal detector for laser power measurement up to 100 W.
The highest damage thresholds on the market with the QED absorber
Detectors with the QED absorber are designed for lasers with very high power density and/or energy density, such as laser micromachining systems. Our proprietary QED absorber diffuses the measured beam and absorbs it in a larger volume, making it almost indestructible.
The highest maximum average power density damage threshold (100 kW/cm2)
The highest maximum energy density damage threshold
Very low risk of damaging the equipment with your laser
Perfect for pulsed beams with high energy density
Faster measurement with XNR Anticipation

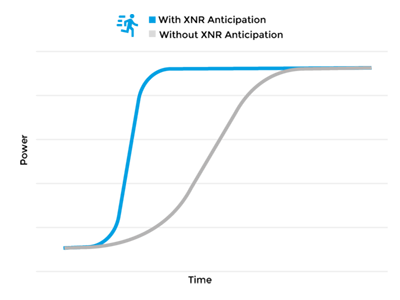

Measure laser power up to 10x faster (model-dependant) with XNR AnticipationTM. Our proprietary algorithm looks at the rate at which the signal increases or decreases and combines this with calibration data to predict the result. The measurement is therefore calculated and displayed faster than the natural response of the detector.
Save several seconds to tens of seconds for each measurement
Shorter operation interruption
Faster laser output diagnostics
Increased productivity
No compromise on measurement accuracy
Optional INTEGRA (USB or RS-232) output
When you choose the INTEGRA output option you get an all-in-one measurement instrument that combines both the detector and the meter in one convenient product. Plug the detector in your PC, install our free software and start measuring.
The most cost-efficient solution
Same measurement performance as our other solutions
No compromise on interface functions and features
Compact solution for OEM applications and field servicing
Save money on recalibration with an all-in-one instrument
Optional BLU (wireless) output
This detector can be purchased with an embedded wireless interface. Save money by not having to purchase a separate monitor. Download our free mobile app or PC software, activate your Bluetooth connection and start measuring your laser.
Create your optimal measurement setup without being limited by cable length or monitor location
Receive data at up to 30m from the detector with the same performance
Enjoy a safer work environment with less tangled cables
Save money on recalibration with an all-in-one instrument
Key Features
Modular Concept
Increase the power capability of your detector: 4 different cooling modules
HIGH PEAK POWER DIFFUSING ABSORBER
Perfect for pulsed beams with high energy density
Compact Design
106 mm thick
HIGH AVERAGE POWER
Measure up to 100 W of continuous power
Smart Interface
Containing all the calibration data
Specifications
| Measurement capabilities | |
| Maximum average power (continuous) | 100 W |
| Maximum average power (1 minute) | 100 W |
| Noise equivalent power | 15 mW |
| Spectral range | 0.266 - 2.5 μm |
| Typical rise time | 4 s |
| Power calibration uncertainty | ±2.5 % |
| Repeatability | ±0.5 % |
| Measurement capabilities (Energy mode) | |
| Maximum measurable energy | 1000 J |
| Noise equivalent energy | 0.25 J |
| Minimum repetition period | 9 s |
| Maximum pulse width | 371 ms |
| Energy calibration uncertainty | ±5 % |
| Damage thresholds | |
| Maximum average power density | 100 kW/cm2 |
| Maximum energy density | 8 J/cm2 |
|
1. At 1064 nm, 10 W CW. May vary with wavelength and average power. 2. At 1064 nm, 7 ns, 10 Hz. May vary with wavelength and pulse width. |
|
| Physical characteristics | |
| Cooling | Convection (heatsink) |
| Aperture diameter | 52 mm |
| Absorber | QED |
| Dimensions | 89H x 89W x 106D mm |
| Weight | 0.93 kg |
