Gentec-EO XLPF12-3S-H2-D0 Thermopile Detector Description：

Datasheet (CN) Datasheet (EN) PC-Gentec-EO User's Manual BLU User's Manual INTEGRA User's Manual UP and XLP12 User's Manual

Gentec-EO XLPF12-3S-H2-D0 Thermopile Detector for laser power measurement up to 3 W.

Optional INTEGRA (USB or RS-232) output

When you choose the INTEGRA output option you get an all-in-one measurement instrument that combines both the detector and the meter in one convenient product. Plug the detector in your PC, install our free software and start measuring.

The most cost-efficient solution

Same measurement performance as our other solutions

No compromise on interface functions and features

Compact solution for OEM applications and field servicing

Save money on recalibration with an all-in-one instrument

Optional BLU (wireless) output

This detector can be purchased with an embedded wireless interface. Save money by not having to purchase a separate monitor. Download our free mobile app or PC software, activate your Bluetooth connection and start measuring your laser.

Create your optimal measurement setup without being limited by cable length or monitor location

Receive data at up to 30m from the detector with the same performance

Enjoy a safer work environment with less tangled cables

Save money on recalibration with an all-in-one instrument

Versatile absorber suitable for most applications

Our H absorber offers a spectral response that is both broadband and spectrally flat, making this power detector a versatile solution that can cover most laser power measurement needs. Our proprietary manufacturing method also gives this absorber good damage thresholds, for both average power density and energy density. It has a high absorption capacity and, therefore, generates a relatively low percentage of back reflection.

Useful for measuring a wide range of lasers

Low risk of damaging the equipment

Allows fast rise time

Faster measurement with XNR Anticipation

Measure laser power up to 10x faster (model-dependant) with XNR AnticipationTM. Our proprietary algorithm looks at the rate at which the signal increases or decreases and combines this with calibration data to predict the result. The measurement is therefore calculated and displayed faster than the natural response of the detector.

Save several seconds to tens of seconds for each measurement

Shorter operation interruption

Faster laser output diagnostics

Increased productivity

No compromise on measurement accuracy

Measure without IR interference

We add a filter in front of the absorber to remove unwanted IR interference and eliminate power fluctuations created by air turbulence in the surrounding environment.

Less sensitive to the surrounding environment

Key Features

Low Power Thermopile

Noise level of a photo detector with the large bandwidth and high power capacity of a thermal device

Minimal Thermal Drift

Only 6 μW/°C (with the IR filter)

High Sensitivity

200 mV/W (without the IR filter)

Special Model for Ultrashort Pulses

VP (volume absorber) version is perfect for low power lasers with ultrashort pulses (ps and fs)

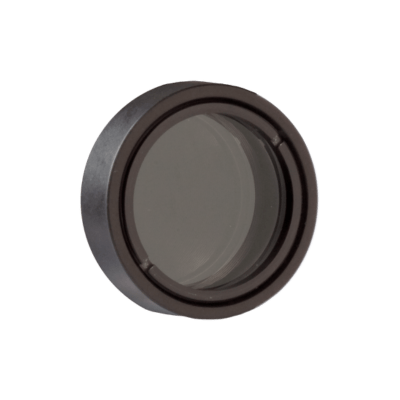

IR Filter (XLPF12 Model)

Removes unwanted IR interference

Isolation Tube

Eliminates power fluctuations created by air turbulence

Specifications
