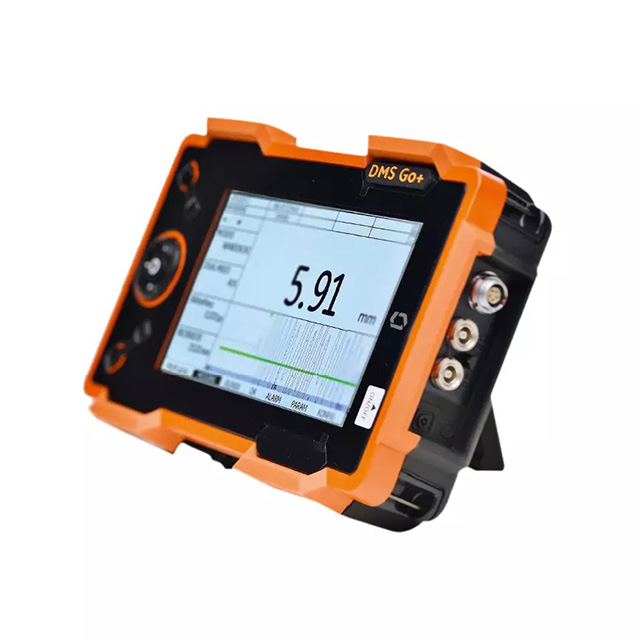

Baker Hughes DMS Go + Series Description：

Datasheet

The DMS Go+ Series of A-scan thickness gauges provides accurate, reliable, and comprehensive thickness inspection data in a wide range of applications and environments. All three models - DMS Go+ Basic, DMS Go+, and DMS Go+ Advanced - feature intuitive, easy-to-use arrow-keypad control and carry out from simple A-scan verification to B-scan and full Data Recording. The three thickness gauges are easy to upgrade with additional features and capabilities in order to form a powerful and flexible NDT inspection tool that meets your corrosion thickness application needs. The DMS Go+ Series uses the same operating platform and hardware as the state-of-the-art USM Go+ portable flaw detector. This offers the ability to have an A-scan thickness gauge and full-fledged flaw detector in one powerful & flexible instrument.

Flexible Performance

Ergonomic design for easy operation

High-performance thickness measurement

High capacity data recorder and compatibility with powerful data management systems

High capacity data recorder and compatibility with powerful data management systems

Intuitive arrow-keypad for positive digital control of parameters

A “Flip” function allows use by both left-handed and right-handed operators

Portrait or landscape views to match user preference

Large display screen ergonomically sized to reduce eyestrain, which can be adjusted to provide optimum visibility in various ambient light conditions

Small size, lightweight (870g, 1.9lb), robust construction to IP67 for operation in harsh environments

Automatic gain control for excellent repeatability and corrosion monitoring

Cutting-Edge Technology

Built-in temperature compensation for accurate measurement up to 540°C (1000°F)

Save and load parameter sets for easy recall and repeatability from inspection to inspection

On-board data recorder, with the capacity for thousands of thickness readings, with storage of A-scan, B-scan and MicroGrid attachments

Expanded data recording capability with additional boiler, custom grid, custom linear, custom point, and 3D, & 4D file structures via UltraMATE

Data transfer via SD card or USB port. Data can be transferred in various file formats to allow easy integration with user data management system

Export data in multiple file formats (e.g. CSV, PDF, DAT, XML, JPG screen capture)

Compatible with many of the popular mechanical integrity risk-based inspection data management analysis programs.

Applications

Inspection and monitoring of corrosion in tubes, vessels, and tanks

Measurement of remaining wall thickness through paint coatings

Inspection of complex geometry tubes

Monitoring of boiler efficiency by measuring oxide scale in boiler tubes with special probe OSS-10

Maintenance checks

Thickness measurement of austenitic materials

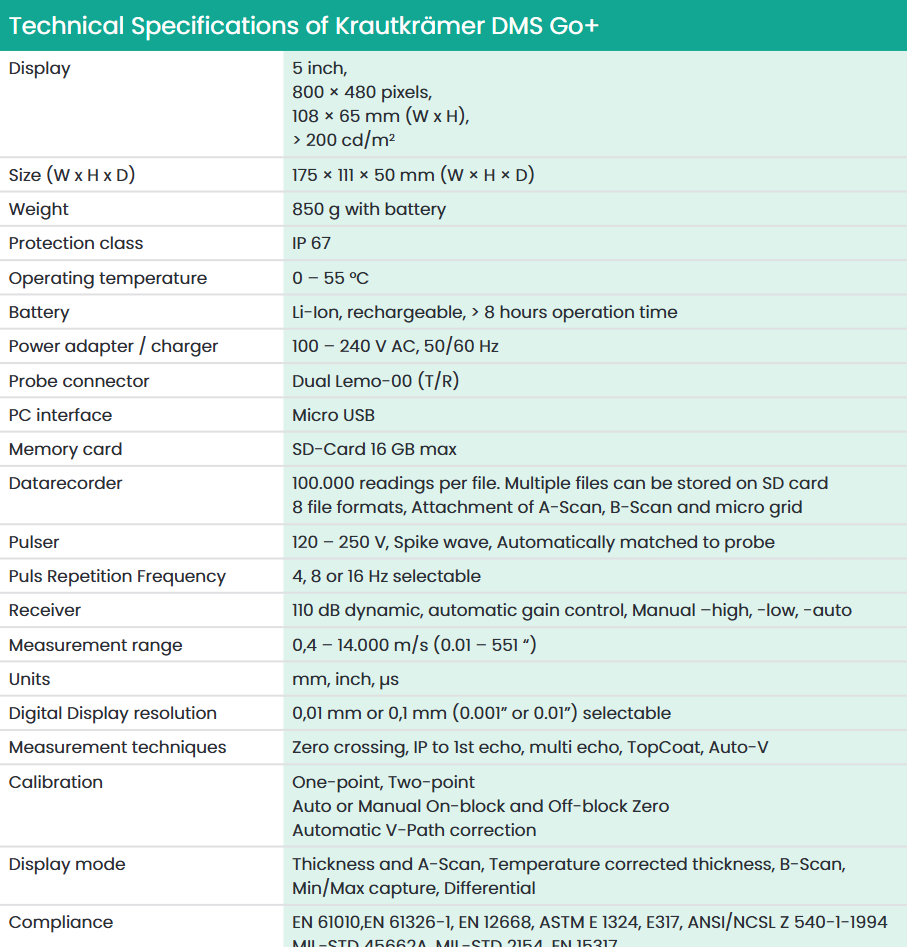

Specifications
