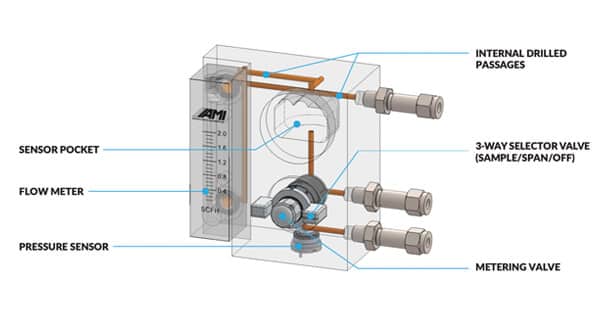

THE ELIMINATOR CELL BLOCK ADVANTAGE

The patented ELIMINATOR CELL BLOCK provides a unique, compact sample system approach and a flow-efficient sensor pocket machined into a solid metallic block. Precision cross-drilled intersecting gas passages eliminate the need for long lengths of tubing and leak-prone compression fittings. It also provides the user with direct front panel access for installing and replacing sensors, and the ability to air calibrate the analyzer, all without the need for disassembly or tools.

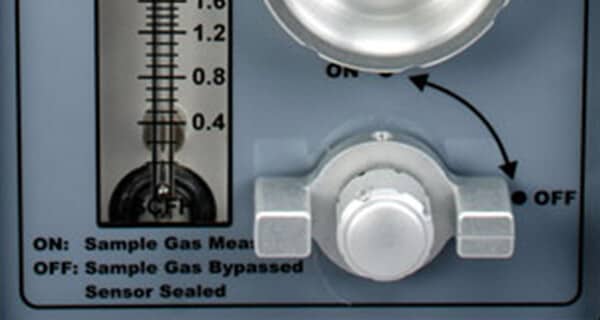

INNOVATIVE 4-WAY VALVE FOR RAPID RESPONSE

AMI’s uniquely engineered 4-way valve is integral to the ELIMINATOR CELL BLOCK and allows the user to quickly purge air from the sample lines with process gas while bypassing the O2 sensor. Then a simple 90°rotation of the 4-way valve to ‘SAMPLE’ Mode allows sample gas to flow past the sensor for a rapid, accurate response to trace oxygen levels in the pipeline gas. This valve design eliminates the typical lag time associated with a new gas connection, where the oxygen reading spikes to air, resulting in a slow recovery down to low ppm levels. Once sampling is complete, the 4-way valve is rotated to the ‘OFF’ position, isolating the sensor from unwanted air exposure between measurement sites.

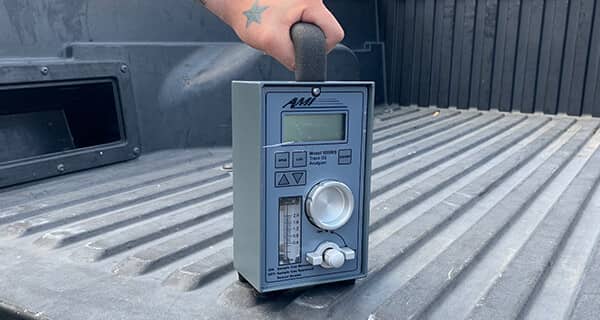

TRULY PORTABLE AND DESIGNED FOR THE FIELD

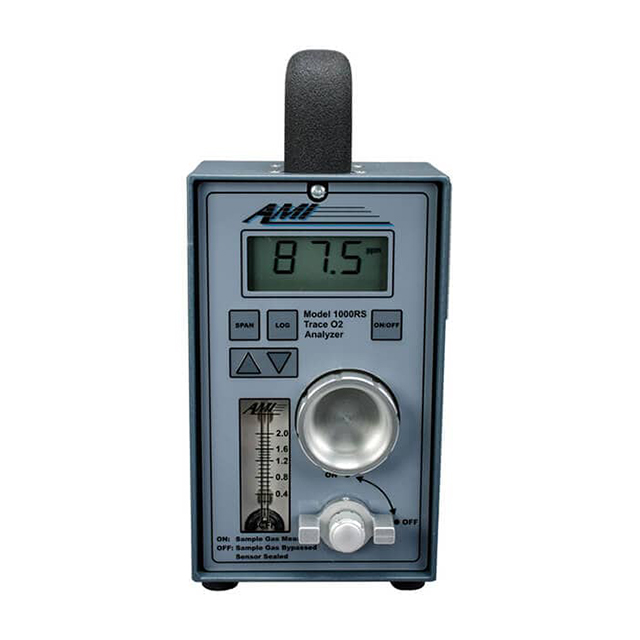

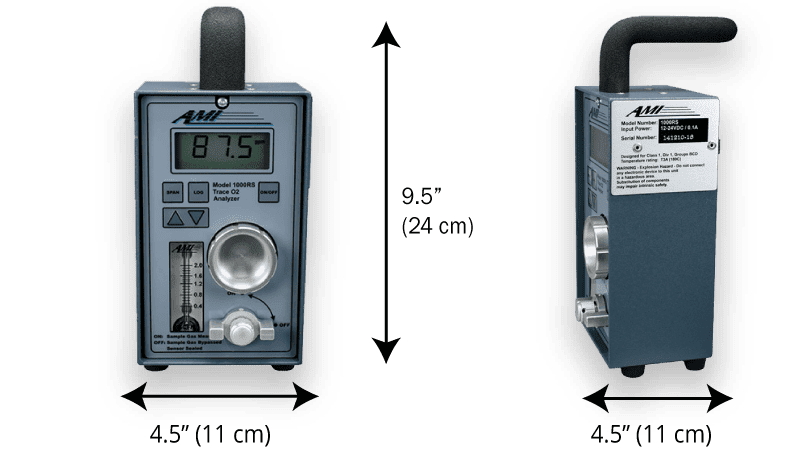

At just 5 lbs (2.3 kg), the MODEL 1000RS is the smallest, lightest, fastest and most accurate portable Trace Oxygen Analyzer in the industry. It comes standard with an onboard data logger for measuring time-stamped O2 levels and temperature, which is essential for tracking down hard-to-find, intermittent oxygen leaks in the field. The long-life rechargeable battery proves useful when you need days of unattended operation for tracking sporadic oxygen spikes caused from leaks.

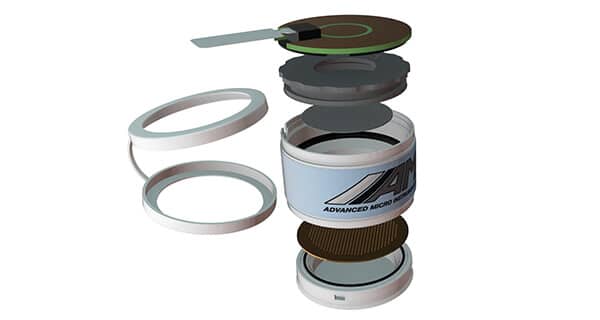

PROPRIETARY SENSOR TECHNOLOGY

AMI’s patented oxygen sensors deliver unmatched performance for ultra-fast response times, accuracy, and reliability. Every sensor undergoes an intense battery of tests to ensure they meet our strict quality control standards. Our trace and percent oxygen sensors operate safely, accurately, and reliably in inert or flammable gas streams, even when containing high levels of H2S – up to 500 ppm, for their entire warranted life. This eliminates the need for a maintenance intensive H2S scrubber that competitive oxygen analyzers require.
