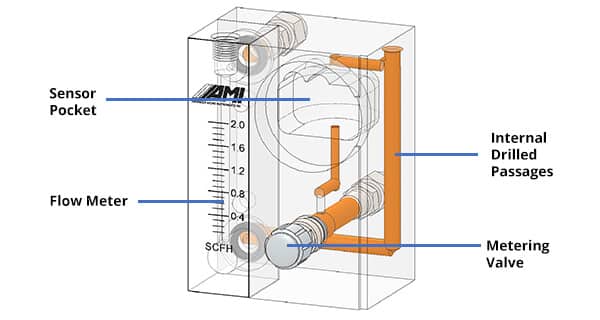

ELIMINATOR CELL BLOCK FOR A LEAK-FREE DESIGN

The patented ELIMINATOR CELL BLOCK provides a unique, compact sample system approach and a flow-efficient sensor pocket machined into a solid metallic block. Precision cross-drilled intersecting gas passages eliminate the need for long lengths of tubing and leak-prone compression fittings. Additionally, we have engineered the metering valve and flow meter to be an integral part of the ELIMINATOR CELL BLOCK. It also provides the user with direct front panel access for installing and replacing sensors, and the ability to air calibrate the Analyzer, all without the need for disassembly or tools.

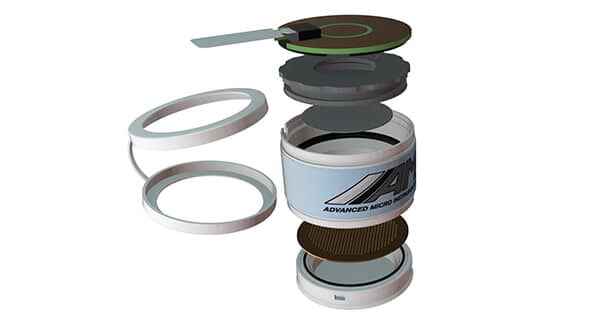

PROPRIETARY SENSOR TECHNOLOGY

The 201LC combined with AMI’s patented oxygen sensors deliver unmatched performance for ultra-fast response times, accuracy, and reliability. Every sensor undergoes an intense battery of tests to ensure they meet our strict quality control standards. Our trace and percent oxygen sensors operate safely, accurately, and reliably in virtually all gas streams.

EXCEPTIONAL VALUE

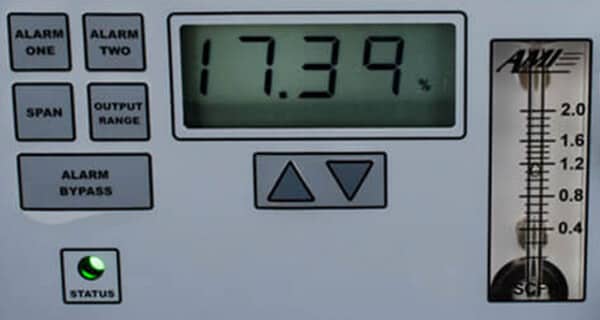

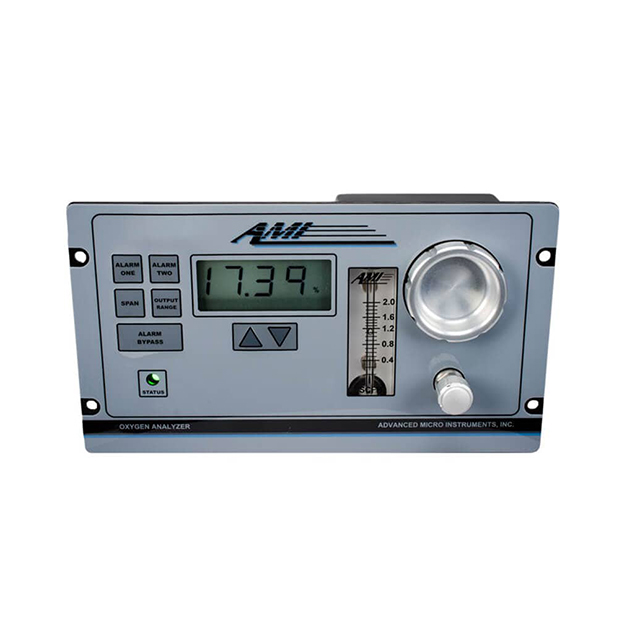

The MODEL 201LC is the perfect low-cost solution for percent O2 measurements requiring a complete sample system and limited key features. It offers the same reliability, accuracy and repeatability of other AMI analyzer while including multiple output ranges, dual independent alarms, and intuitive controls. This virtually maintenance-free oxygen analyzer is a very cost-effective option for general purpose applications.
