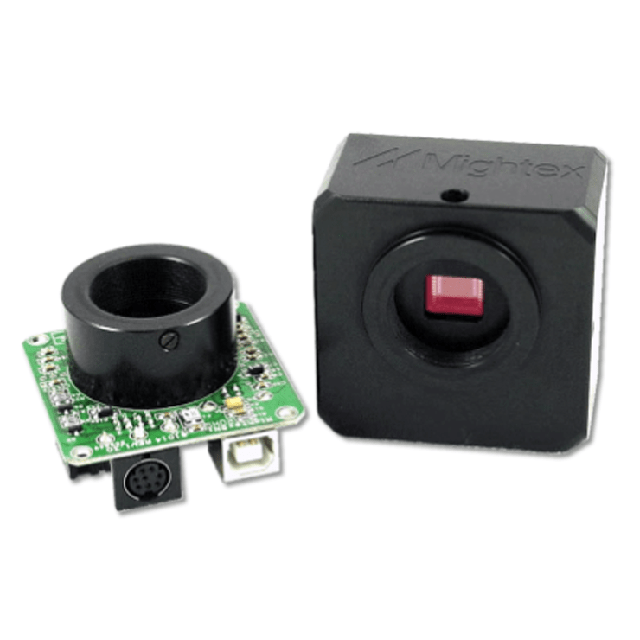

5MP Color CMOS Cameras, with 32MB on-Board Memory Description：

Datasheet

Mightex USB 2.0 cameras with frame buffers are optimized for machine-vision applications, and they can also be used for a wide variety of other applications such as digital microscopy and medical imaging, where quality, ease of use, and cost-effectiveness are crucial. These cameras have built-in frame buffers, external trigger-in, strobe-out, and a powerful camera engine that supports multiple cameras. The frame rate can be as high as 6 fps in full resolution and up to 300 fps using ROI mode. In addition, a user-friendly GUI based application software and an SDK are provided for custom software development. A DirectShow driver and a TWAIN driver are included, and a USB command set protocol is provided for non-Windows based applications. A Linux Driver is also available upon request.

Features

32MB on-board memory (3 frames at full resolution)

Support simultaneous image capturing from multiple cameras

4-pin GPIOs

2592 x 1944active imaging pixels

Ultra compact

High-speed USB2.0 (480Mb/s)

Digital output, no need for frame grabber

Custom programmable with SDK provided

DirectShow driver

TWAIN driver

USB command set protocol for non-Windows-based applications

External and software trigger

Strobe output for external flash

ROI & pixel skipping/binning

No need for external power supply

OEM versions available

Applications

Machine vision and stereo vision

Medical imaging

Semiconductor equipment

Test instruments

High-quality ID photo capture

Document scanners

Digital microscopy

Web camera and security video

Specifications

* The actual achievable frame rate may vary, depending on exposure time setting as well as available PC resources.
