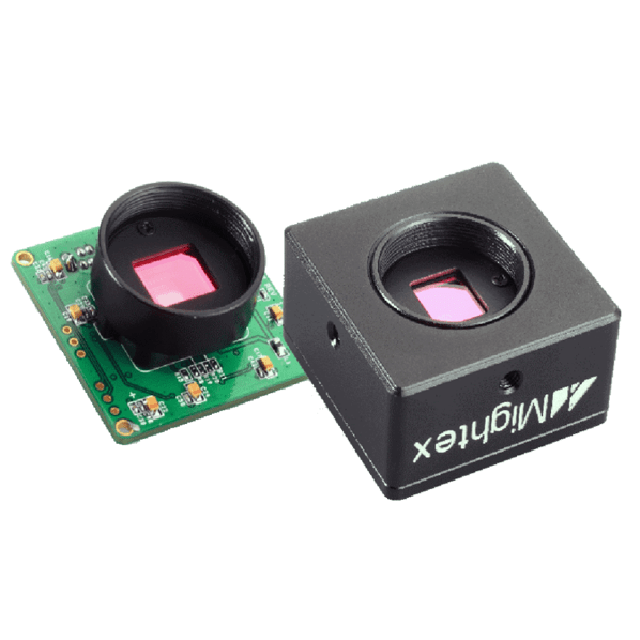

S-Series Ultra-Compact Global Shutter 752×480 Monochrome CMOS Cameras Description：

Datasheet

Mightex S-series compact USB 2.0 cameras with global shutter are optimized for machine-vision applications, and they can also be used for a wide variety of other applications such as digital microscopy and medical imaging, where quality, ease of use, and cost-effectiveness are crucial. These cameras have global shutter, external trigger-in, strobe-out. Monochrome cameras often exhibit 20% higher spatial resolution than their color counterparts because no pixel interpolation is necessary. Without a Bayer color filter on the sensor, monochrome cameras are also more sensitive than color sensors especially in near IR and UV regions. Frame rate can be as high as 38 fps in full resolution and up to 210 fps using ROI mode. In addition, a user-friendly GUI based applica-tion software and an SDK are provided for custom software development. A USB command set protocol is also provided for non-Windows based applications.

Features

Ultra compact

4-pin GPIOs

Higher sensitivity than color cameras

752 x 480 active imaging pixels

High-speed USB2.0 (480Mb/s)

Digital output, no need for a frame grabber

Custom programmable with SDK provided

DirectShow and TWAIN driver

USB command set for non-Windows based applications

Linux Driver

External and software trig-ger

Strobe output for external flash

ROI & pixel skipping/binning

No need for external power supply

OEM versions available

Applications

Digital microscopy

Machine vision

Medical imaging

Semiconductor equipment

Test instruments

Document scanners

2D barcode readers

Specifications

* The actual achievable frame rate depends on exposure time, as well as available resources of the PC host system.
