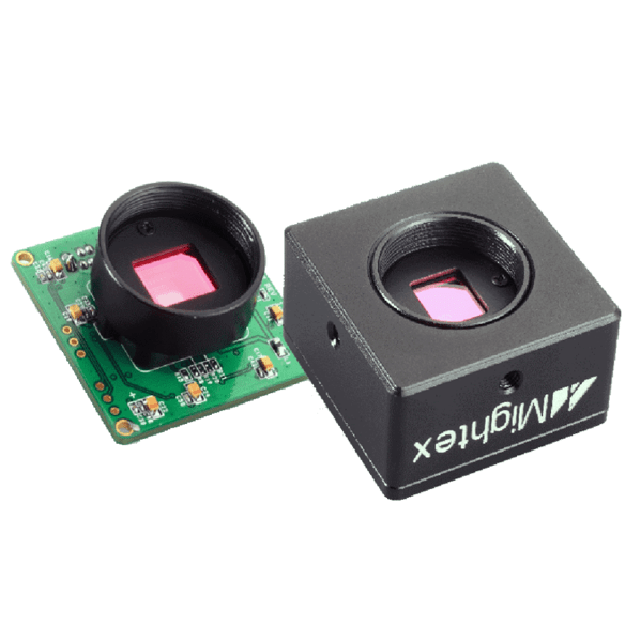

S-Series Ultra-Compact Global Shutter 752×480 Color CMOS Cameras Description：

Datasheet

Mightex S-series compact USB 2.0 cameras with global shutter are optimized for machine-vision applications, and they can also be used for a wide variety of other applications such as digital microscopy and medical imaging, where quality, ease of use, and cost-effectiveness are crucial. These cameras have global shutter, external trigger-in, strobe-out, and a powerful camera engine that supports multiple cameras. Frame rate can be as high as 38 fps in full resolution and up to 210 fps using ROI mode. In addition, a user-friendly GUI based application software and an SDK are provided for custom software development. A USB command set protocol is also provided for non-Windows based applications.

Features

Ultra compact

4-pin GPIOs

752×480 active imaging pixels

High-speed USB2.0 (480Mb/s)

Digital output, no need for a frame grabber

Custom programmable with SDK provided

DirectShow and TWAIN driver

USB command set for non-Windows based applications

Linux Driver

External and software trig-ger

Strobe output for external flash

ROI & pixel skipping/binning

No need for external power supply

OEM versions available

Applications

Digital microscopy

Machine vision

Medical imaging

Semiconductor equipment

Test instruments

Document scanners

2D barcode readers

Specifications

* The actual achievable frame rate depends on exposure time, as well as available resources of the PC host system.
