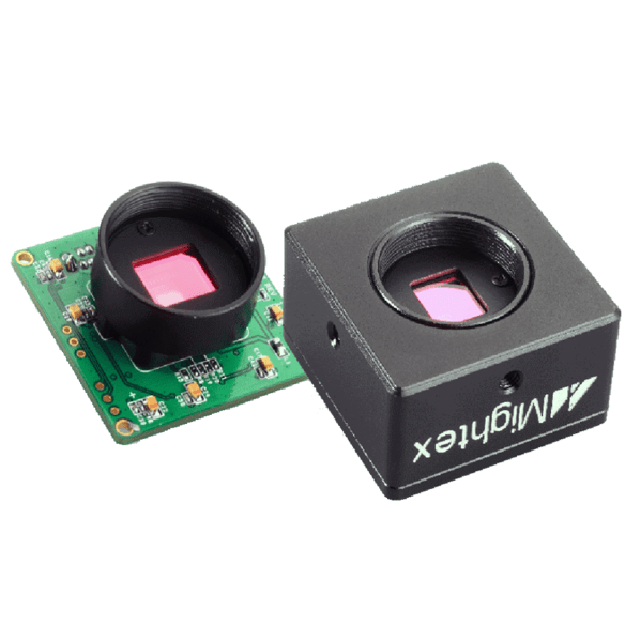

S-Series Ultra-Compact USB2.0 Monochrome 1.3MP CMOS Cameras Description：

Datasheet

Mightex S-Series compact USB 2.0 cameras are optimized for machine-vision applications, and they can also be used for a wide variety of other applications such as digital microscopy and medical imaging, where quality, ease of use, and cost-effectiveness are crucial. These cameras have external trigger-in, strobe-out, and GPIOs. Monochrome cameras often exhibit 20% higher spatial resolution than their color counterparts because no pixel interpolation is necessary. Without a Bayer color filter on the sensor, monochrome cameras are also more sensitive than color sensors especially in near IR and UV regions. Frame rate can be as high as 20 fps in full resolution and up to 150 fps using ROI mode. In addition, a user-friendly GUI based application software and an SDK are provided for custom software development. A USB command set protocol is also provided for non-Windows based applications.

Features

Ultra compact

4-pin GPIOs

Higher sensitivity than color cameras

1280×1024 active imaging pixels

High-speed USB2.0 (480Mb/s)

Digital output, no need for a frame grabber

Custom programmable with SDK provided

DirectShow and TWAIN driver

Linux Driver

External and software trigger

Strobe output for external flash

ROI & pixel skipping

No need for external power supply

OEM versions available

Applications

Digital microscopy

Machine vision

Medical imaging

Semiconductor equipment

Test instruments

Document scanners

2D barcode readers

Specifications

* The actual achievable frame rate depends on exposure time, as well as resources of PC system.
