Datasheet

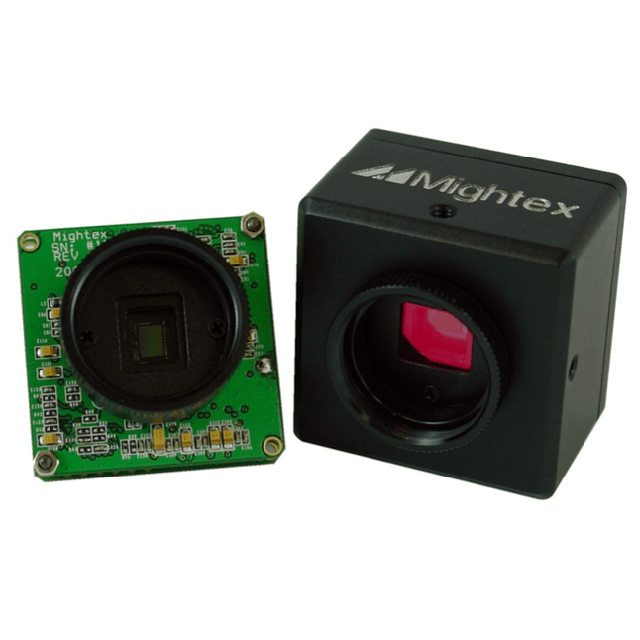

Mightex USB2.0 CCD cameras with frame buffers are optimized for machine-vision applications, and they can be also used for a wide variety of applications (such as industrial inspections, digital microscopy and medical imaging) which require good quality cameras that are easy to use and cost-effective. These cameras have built-in frame buffers, external trigger-in, strobe-out, and a powerful camera engine that supports multiple cameras. Monochrome cameras often exhibit 20% higher spatial resolution than their color counterparts because no pixel interpolation is necessary. Since there is no Bayer color filter on the sensor, monochrome cameras are more sensitive than color sensors, especially in near IR and UV regions. Frame rate can be as high as 20 fps in full resolution and up to 84 fps using ROI mode. A user-friendly GUI based application software and an SDK are provided for custom software development. In addition, a DirectShow driver and a TWAIN driver are available to easily link the cameras with users’ applications. A USB command set protocol and a Linux driver are also provided for non-Windows based applications.
Features:
Ultra compact
High sensitivity, low noise
Built-in frame buffer (24 frames at full resolution)
Support simultaneous image capturing from multiple cameras
4-pin GPIOs
Higher sensitivity than color cameras, especially in IR
1280×960 active imaging pixels
High-speed USB2.0 (480Mb/s)
Digital output, no need for frame grabber
Custom programmable with SDK provided
DirectShow, TWAIN and Linux drivers
USB command set protocol for non-Windows-based applications
External and software trigger
Strobe output for external flash
ROI & pixel skipping/binning
No need for external power supply
OEM versions available
Applications:
Machine vision and stereo vision
Medical imaging
Semiconductor equipment
Test instruments
High-quality ID photo capture
Document scanners
Digital microscopy
2D barcode readers
Web camera and security video
| Parameters | CGN-B013-U | CGE-B013-U | Unit |
| Board-Level/Enclosed | Board-Level | Enclosed | |
| Number of GPIOs | 4 | 4 | |
| Resolution | 1,280 x 960 Monochrome | ||
| Image Sensor Chip | 1/3" Sony ICX445AL, Global Shutter | ||
| Bit | 8 or 12 | bit | |
| Pixel Size | 3.75 x 3.75 | μm | |
| Active Imager Size | 6.26 x 5.01 | mm | |
| Scanning System | Progressive | ||
| On-Board Memory | 32 | MB | |
| Frame Rates* (@32MHz Clock) | 20 @1280 x 960, 38 @640 x 480 (2x2 Bin), 53 @424 x 320 (3x3 Bin), 66 @320 x 240 (4x4 Bin), 66 @320 x 240 (4x4 Bin2) | fps | |
| Sub Resolutions | 640 x 480(2x2 Bin), 424 x 320(3x3 Bin), 320 x 240(4x4 Bin), 320 x 240 (1:4 Bin2) | ||
| Shutter Speed (Exposure Time) | 0.05 ~ 200,000 | ms | |
| Hardware Gains | 6 ~ 41 | dB | |
| Trigger Mode | With external trigger | ||
| Trigger Cable | ACC-CAM-CON8 | ||
| Trigger Delay | < 25 | μs | |
| Strobe Out | Yes | ||
| Lens Mount | C– mount or CS-mount (M12.5-mount or custom-defined lens mount supported) | ||
| Built-in Filters | IR-cut (factory standard), or IR-pass, or No filter | ||
| Power Consumption | < 1.8 | W | |
| Dimension |
40 x 40 x 31 (CS-mount) 40 x 40 x 36 (C-mount) |
45 x 45 x 30.5 (CS-mount) 45 x 45 x 35.5 (C-mount) |
mm |
| Weight (excluding lens) | 29 | 115 | g |
* The actual achievable frame rate depends on exposure time, as well as resources available from the PC system.
