Datasheet

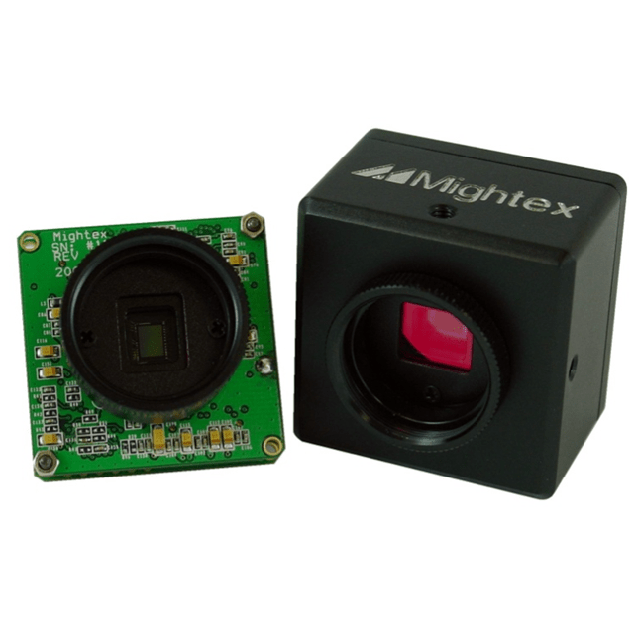

Mightex USB2.0 CCD cameras with frame buffers are optimized for machine-vision applications, and they can be also used for a wide variety of applications (such as industrial inspections, digital microscopy and medical imaging) which require good quality cameras that are easy to use and cost-effective. These cameras have built-in frame buffers, external trigger-in, strobe-out, and a powerful camera engine that supports multiple cameras. Frame rate can be as high as 20 fps in full resolution and up to 84 fps using ROI mode. A user-friendly GUI based application software and an SDK are provided for custom software development. In addition, a DirectShow driver and a TWAIN driver are available to easily link the cameras with users’ applications. A USB command set protocol and a Linux driver are also provided for non-Windows based applications.
Features:
Ultra compact
High sensitivity, low noise
Built-in frame buffer (24 frames at full resolution)
Support simultaneous image capturing from multiple cameras
4-pin GPIOs
1280×960 active imaging pixels
High-speed USB2.0 (480Mb/s)
Digital output, no need for frame grabber
Custom programmable with SDK provided
DirectShow, TWAIN and Linux drivers
USB command set protocol for non-Windows-based applications
External and software trigger
Strobe output for external flash
ROI & pixel skipping/binning
No need for external power supply
OEM versions available
Applications:
Machine vision and stereo vision
Medical imaging
Semiconductor equipment
Test instruments
High-quality ID photo capture
Document scanners
Digital microscopy
2D barcode readers
Web camera and security video
| Parameters | CGN-C013-U | CGE-C013-U | Unit |
| Board-Level/Enclosed | Board-Level | Enclosed | |
| Number of GPIOs | 4 | 4 | |
| Resolution | 1,280 x 960 Color | ||
| Image Sensor Chip | 1/3" Sony ICX445AK, Global Shutter | ||
| Bit | 8 or 12 | bit | |
| Pixel Size | 3.75 x 3.75 | μm | |
| Active Imager Size | 6.26 x 5.01 | mm | |
| Scanning System | Progressive | ||
| On-Board Memory | 32 | MB | |
| Frame Rates* (@32MHz Clock) | 20 @1280 x 960, 38 @640 x 480 (2x2 Bin), 53 @424 x 320 (3x3 Bin), 66 @320 x 240 (4x4 Bin), 66 @320 x 240 (4x4 Bin2) | fps | |
| Sub Resolutions | 640 x 480(2x2 Bin), 424 x 320(3x3 Bin), 320 x 240(4x4 Bin), 320 x 240 (1:4 Bin2)** | ||
| Shutter Speed (Exposure Time) | 0.05 ~ 200,000 | ms | |
| Hardware Gains | 6 ~ 41 | dB | |
| Trigger Mode | With external trigger | ||
| Trigger Cable | ACC-CAM-CON8 | ||
| Trigger Delay | < 25 | μs | |
| Strobe Out | Yes | ||
| Lens Mount | C– mount or CS-mount (M12.5-mount or custom-defined lens mount supported) | ||
| Built-in Filters | IR-cut (standard), or IR-pass, or No filter | ||
| Power Consumption | < 1.8 | W | |
| Dimension |
40 x 40 x 31 (CS-mount) 40 x 40 x 36 (C-mount) |
45 x 45 x 30.5 (CS-mount) 45 x 45 x 35.5 (C-mount) |
mm |
| Weight (excluding lens) | 29 | 115 | g |
*. The actual achievable frame rate depends on exposure time, as well as resources available from the PC system.
** In the sub-resolution mode, the color information is ignored, and hence the images become monochromic.
