Product Manual Datasheet

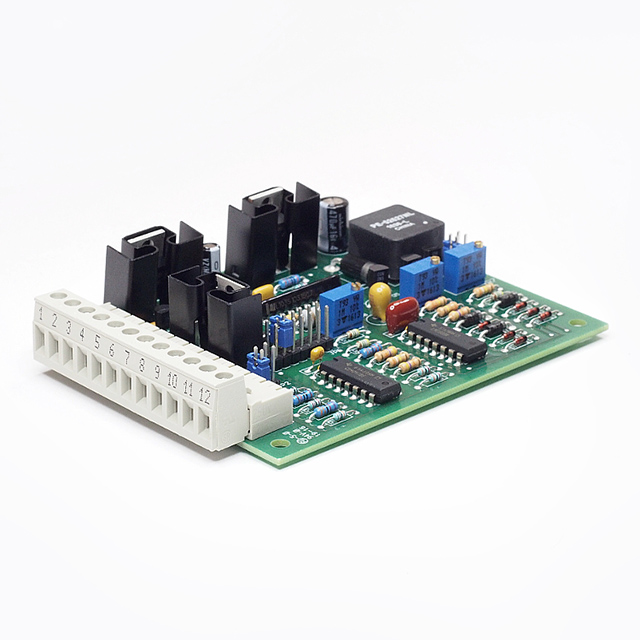

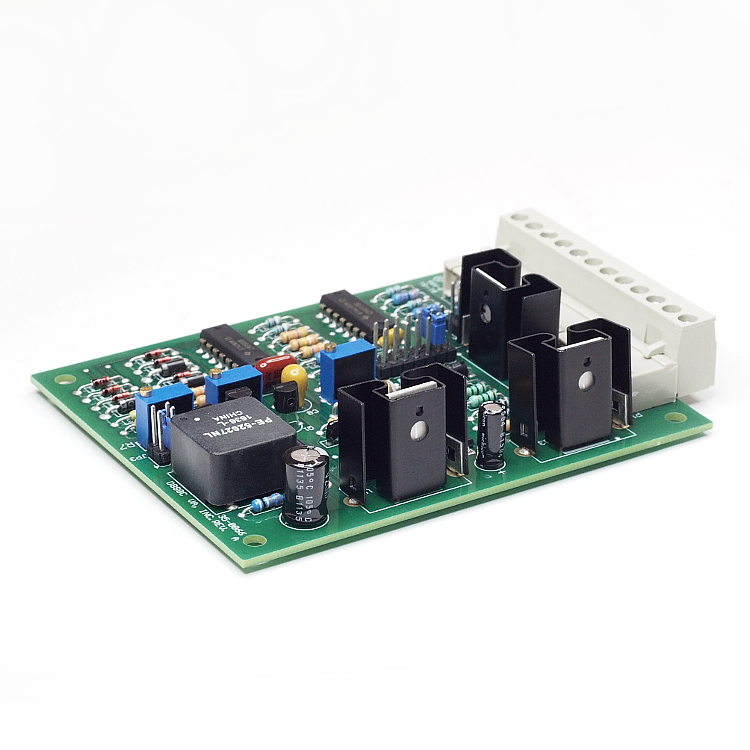

The Uniblitz D880C is an open-frame, uni-stable shutter driver utilizing constant current control which has shown to increase shutter life time over standard capacitive discharge types. It is well-suited for integration into OEM applications when paired with a large selection of Uniblitz shutters (all compatible shutter devices will require the “E” option (“For use with VED24 or D880C”) in order to properly operate with the D880C).
Simple external connections to the D880C are made through the pluggable input/output screw terminal connector. This enables the D880C to be quickly connected/disconnected without having to remove any wires connected to the terminal block.
Control of the D880C requires that the user supplies a TTL (5V) logic level to the trigger input or connecting a mechanical or electronic switch between the trigger input and +6.75 VDC.
Specifications
| System Characteristics | |
| Repeat Exposure | Minimum time between exposures is determined by shutter used and open close pulse duration. |
| Shutter Drive | Continuously variable frequency of exposures from DC to the shutter in operation maximum rate. |
| Pulse Current: 1.2A | |
| Hold Current: 300mA | |
| General | Size (HWD) 1.00 x 3.20 x 4.00 inches (25.4 x 81.2 x 101.0 mm) |
| Weight 3.00 oz (0.09 Kg) | |
| Power input: +24VDC at 1.5A (user supplied) | |
| RoHS Compliant | |
