Product Manual Datasheet

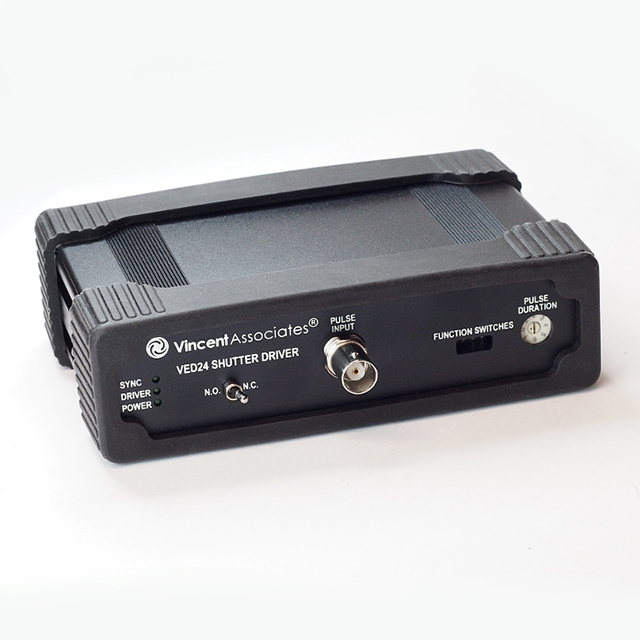

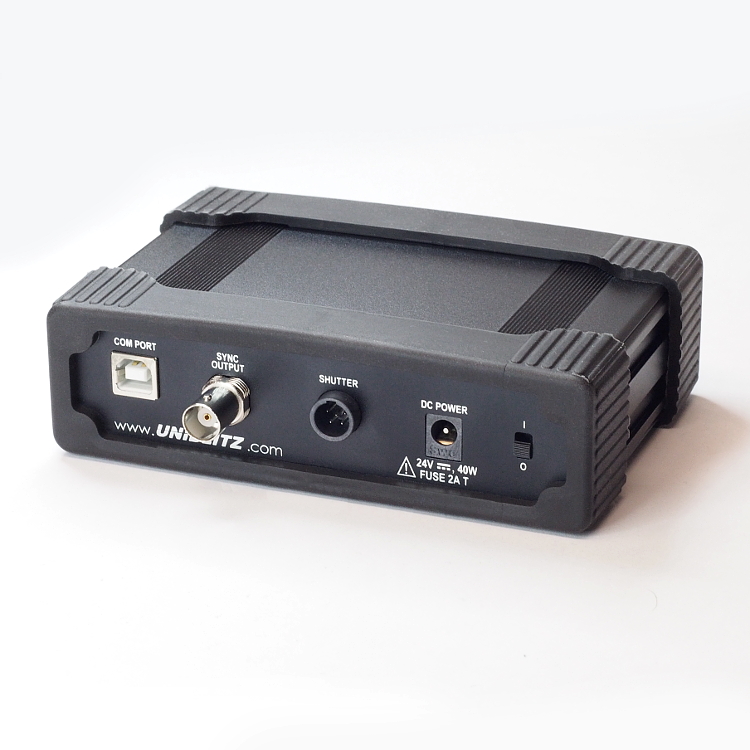

The Uniblitz VED24, or Versatile Electronic Driver, provides simple, straightforward shutter control. The device is single-channel, and is compatible with both uni-stable and bi-stable shutter devices. Operation options include manual shutter control, external triggering, and remote computer interfacing. Exposure is determined by external pulse (Active-Low, TTL), computer interface, or switch contact.
Specifications
| Repeat Exposure | Minimum time between exposures is determined by shutter used and open close pulse duration. |
| Shutter Drive | Continuously variable frequency of exposures from DC to the shutter’s maximum rate |
| Maximum peak pulse power: 41 W | |
| Pulse voltage Max.: +18 VDC Max | |
| Pulse current Max.: 2.25A (Test conditions: 18 Volts, 8 Ω – not continuous) | |
| Power Requirements | +24VDC, PS24 Included, AC power supply. |
| Required AC Input: 100-240 VAC, 50/60 Hz | |
| Power Supply Output: +24 VDC, 1.67A, 40W | |
| Input Plug (to VED24 Controller): 2 mm DC plug, Center is positive | |
| Pulse Input (BNC) | Active-low |
| Input impedance: 1K Ohms | |
| Maximum source current: 100 μA | |
| Maximum sink current: 1 μA | |
| Minimum pulse width determined by applicable shutter | |
| Maximum pulse width unlimited | |
|
TTL compatible:
|
|
| SYNC Output (BNC) | Active-high |
| Maximum source current: 3.0 mA | |
| Maximum sink current: 20 mA | |
| Maximum low-level: +0.5 VDC | |
| Minimum high-level: +4.5 VDC. This output becomes active when shutter used is equipped with an electronic synchronization sensor. | |
| General | Size (HWD) 1.61 x 5.47 x 4.6 inches (41.0 x 139.0 x 116.8 mm) |
| Weight 12.27 oz. (.35kg) | |
| Included Power Supply (PS24) Input 100/240 VAC, 50-60 Hz | |
| Output +24VDC, 1.67A, 40W | |
| RoHS Compliant | |
| CE Certified (optional) |
