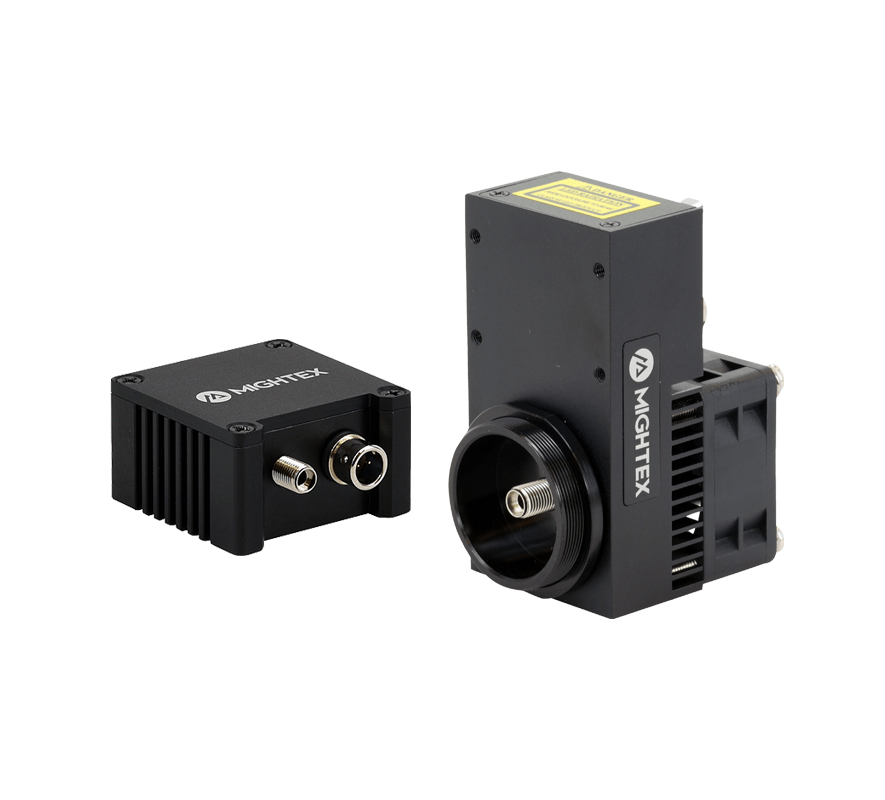

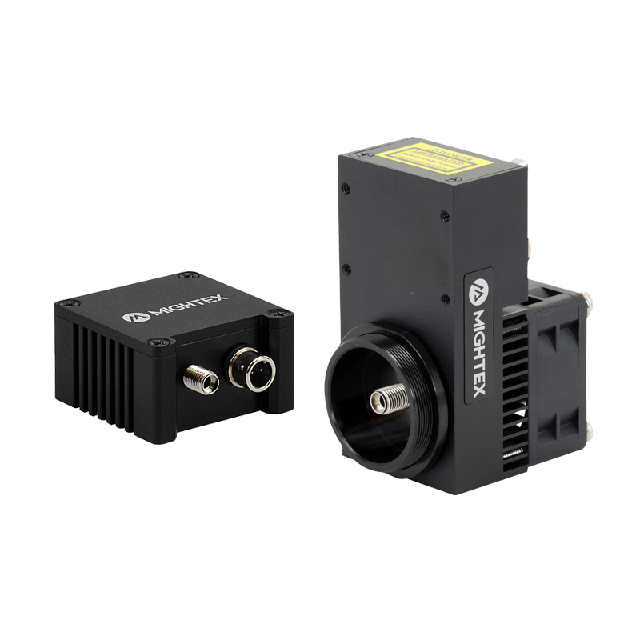

Mightex High Power Fiber-Coupled LED Light Sources (UV, VIS and NIR)

Updated:2025-03-13

Brand: Mightex
Model: FCS-series
Description: Mightex FCS-series fiber-coupled LED light sources employ the latest high-power LED technologies and a proprietary coupling optics to achieve maximum optical output power. Optical output is coupled in
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Mightex High Power Fiber-Coupled LED Light Sources (UV, VIS and NIR) Description：

Datasheet

Mightex FCS-series fiber-coupled LED light sources employ the latest high-power LED technologies and a proprietary coupling optics to achieve maximum optical output power. Optical output is coupled into a fiber through a standard SMA fiber adaptor port (SMA fiber patch cords are sold separately). FCS series also features a locking electrical connector for secured connection. FCS series are designed as a universal light source for general lab use and OEM applications. The one-piece machined housing features multiple mounting holes. All Mightex LED drivers such as the SLC series or other LED drivers and current sources can be used to drive the light sources.

To drive a FCS LED source, one can use any one of the wide range of LED controllers Mightex has to offer:

Software controlled LED controllers;

Manual LED drivers.

IMPORTANT: For deep UV LED sources with an operating current rating of < 50mA, it is strongly recommended that the following LED controllers be used to drive the LEDs:

Software controlled LED controllers, Model# SLC-FA04-US;

Manual LED driver, Model# SLA-0100-2

Features:

High-power UV/VIS/NIR/white fiber-coupled LED’s

Interchangeable fiber with SMA connector

No moving parts in optical path

Multiple mounting features for lab and OEM applications

Optional LED controllers

Compact, machined metal housing with integrated heat sink

Locking electrical connector

Applications:

Microscopy

Fluorescence

Sensors

Semiconductor equipment

Testing instruments

Medical instruments

Machine vision

Specifications

Type-A FCS (passive cooling, no cooling fan)

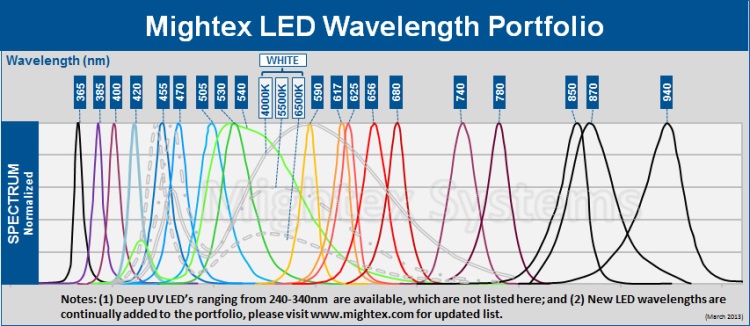

Wavelength Code	Description	Wavelength (nm)	I_op (mA)	V_op (V)	Typical Radiant Flux (mW)¹ (with a 400μm 0.22NA fiber)	Typical Radiant Flux (mW) (with a 400μm 0.39NA fiber)
0000	Cool White	5,500K	1000	3.9	3.2	6.4
0001	Warm White	4,000K	1000	3.9	3.2	6.4
0002	Glacier White	6,500K	1000	3.6	3.2	6.4
0003	Warm White	3,000K	1000	2.8	2.8	5.6

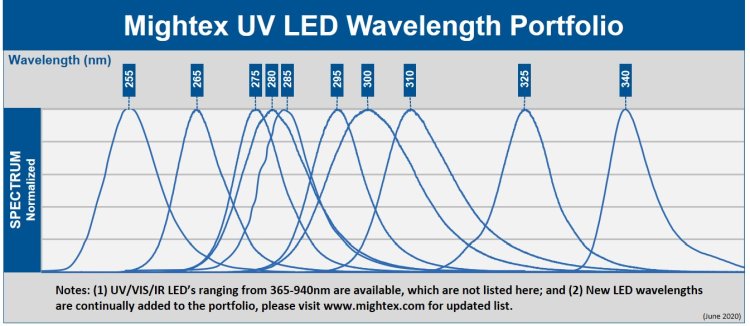

0265-001	Deep UV	265	350	6.3	400μW	N/A
0275-001	Deep UV	275	600	6	700μW	N/A
0280-002	Deep UV	280	800	6.5	600μW	N/A
0310-001	Deep UV	310	600	5.8	540μW	N/A
0325-002	Deep UV	325	600	4.7	350μW	N/A
0340-002	Deep UV	340	350	4.3	0.6	1.1
0365-001	UV 365nm	365	1000	3.65	4.3	8.6
0380	UV 380nm	380	1000	3.2	2.8	5.6
0385-001	UV 385nm	385	1000	3.65	5.8	11.6
0395	UV 395nm	395	1000	3.1	6.2	12.4
0400-002	UV 400nm, 3W	400	1000	3.1	6.1	12.2
0405	UV 405nm	405	1000	3	7.5	15
0410	410nm	410	1000	3	7.3	14.6
0415	415nm	415	1000	3	7.2	14.4
0430	430nm	430	500	3.8	2.9	5.8
0455	455nm	455	1000	3.0	18	36
0470	470nm	470	1000	3.2	7	14
0471	471nm	471	350	3	2.1	4.2
0490	490nm	490	350	3.5	3.2	6.4
0505	505nm	505	1000	3.9	3.5	7
0530	530nm	530	1000	2.85	7	14
0560	560nm broadband	560	700	2.9	5.5	11
0590	590nm	590	1000	3.2	1.2	2.4
0617-001	617nm, 2W	617	700	2.3	6.5	13
0625	625nm	625	1000	3	6.5	13
0656	656nm	656	1000	3.1	6.5	13
0680	680nm	680	600	2.7	1.4	2.8
0700	700nm	700	500	2.1	0.6	1.2
0720	720nm	720	600	2.2	0.9	1.8
0740	740nm	740	1000	2.9	3.6	7.2
0780	NIR 780nm	780	800	2.5	2.2	4.4
0810	NIR 810nm	810	800	2.2	1.5	3
0850-001	NIR 850nm, 3W	850	1000	3	6	12
0870	NIR 870nm	870	700	1.9	1.4	2.8
0910	NIR 910nm	910	1000	1.9	1.5	3
0940	NIR 940nm	940	1000	2.4	4	8

1. Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual output of any given LED may vary. Specifications are intended to be used as a guideline.

Type-B FCS (with a cooling fan)

Wavelength Code	Description	Peak Wavelength (nm)	I_op (mA)	V_op (V)	Typical Radiant Flux (mW)¹ (with a 400μm 0.22NA fiber)	Typical Radiant Flux (mW) (with a 400μm 0.39NA fiber)
0470-101	Blue	470	3000	4.6	19	38
0530-100	Green	530	2400	4.9	8	15
0540-100	Broadband Green	540	3000	4.6	10	20
0625-100	Red	625	2400	2.9	9	18

Type-H Super High-Power FCS (with a cooling fan)

Wavelength Code	Description	Peak Wavelength (nm)	I_op (A)	V_op (V)	Typical Radiant Flux (mW)¹ (with a 1000μm 0.22NA fiber)	Typical Radiant Flux (mW) (with a 1000μm 0.39NA fiber)
0365-201	UV	365	18	4.2	200	140
0405-201	UV	405	18	3.6	170	220
0415-200	Blue-Violet 415nm, 65W	415	18	3.6	275	350
0470-200	Blue, 50W	470	13	3.8	180	280
0470-201	Blue, 60W	470	18	3.4	220	330
0470-202	Blue, 90W	470	27	3.4	260	390
0525-200	Green, 60W	525	13	4.6	100	160
0525-201	Green, 80W	525	18	4.4	120	190
0560-200	560 broadband, 70W	560	18	3.8	180	280
0625-200	Red, 38W	625	13	2.9	200	310
0625-201	Red, 42W	625	18	2.3	250	370
0730-200	NIR	730	18	5.9	110	170
0780-200	NIR	780	18	3.6	200	300
0850-200	NIR	850	18	3.75	220	340
6500-200	Glacier White, 30W	6500K	9	3.7	120	180
6500-201	Glacier White, 65W	6500K	18	3.7	190	280

Discontinued Parts

Wavelength Code	Description	Wavelength (nm)	I_op (mA)	V_op (V)	Typical Radiant Flux (mW)¹ (with a 400μm 0.22NA fiber)	Typical Radiant Flux (mW) (with a 400μm 0.39NA fiber)
0240	Deep UV	240	25	10	10μW	18μW
0255	Deep UV	255	30	6.5	45μW	80μW
0260	Deep UV	260	30	6.5	45μW	80μW
0265	Deep UV	265	350	6.3	100μW	N/A
0275	Deep UV	275	30	6.2	90μW	160μW
0280-000	Deep UV	280	30	5.8	90μW	160μW
0280-001	Deep UV	280	500	5.8	400μW	N/A
0285	Deep UV	285	30	5.8	90μW	160μW
0285-001	Deep UV	285	500	5.8	450μW	N/A
0295	Deep UV	295	30	5.5	75μW	135μW
0295-001	Deep UV	295	600	5.8	500μW	N/A
0300	Deep UV	300	500	6	300μW	N/A
0310-000	Deep UV	310	30	5.5	90μW	160μW
0325-000	Deep UV	325	30	5	60μW	110μW
0325-001	Deep UV	325	350	5.4	220uW	440uW
0340-000	Deep UV	340	30	5	60μW	110μW
0340-001	Deep UV	340	500	4.3	0.6	1.1
0365-000	UV 365nm	365	500	3.8	5.8	11.6
0365-200	UV 365nm	365	12,000	4	60	180
0385-000	UV 385nm	385	500	3.8	5.8	11.6
0390	UV 390nm	390	1000	3.1	5.8	11.6
0400-000	UV 400nm, 1W	400	350	3.5	0.8	1.6
0400-001	UV 400nm, 4W	400	1000	4.1	3.5	7
0405-200	UV 405nm, 50W	405	13000	3.8	70	210
0420	420nm 2W	420	500	3.8	2.6	5.2
0420	420nm 3W	420	1000	3	7.2	14.4
0425	425nm	425	1000	3	6.7	13.4
0470-100	470nm	470	3000	4.6	11	21
0617-000	617nm, 3W	617	1000	3.9	6.5	13
0657	657nm	657	350	2.4	1	2
0850-000	850nm, 2W	850	1000	2.1	4	8
