Mightex Filtered High Power Fiber-Coupled LED Light Sources (UV, VIS and NIR) Description：

Datasheet

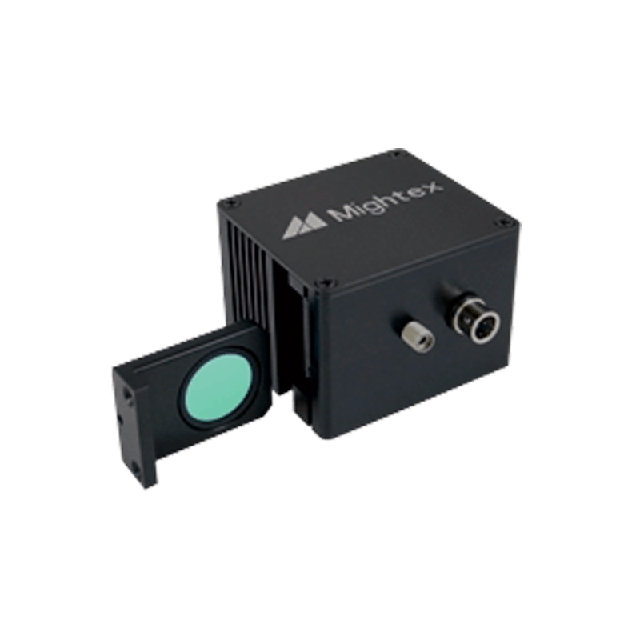

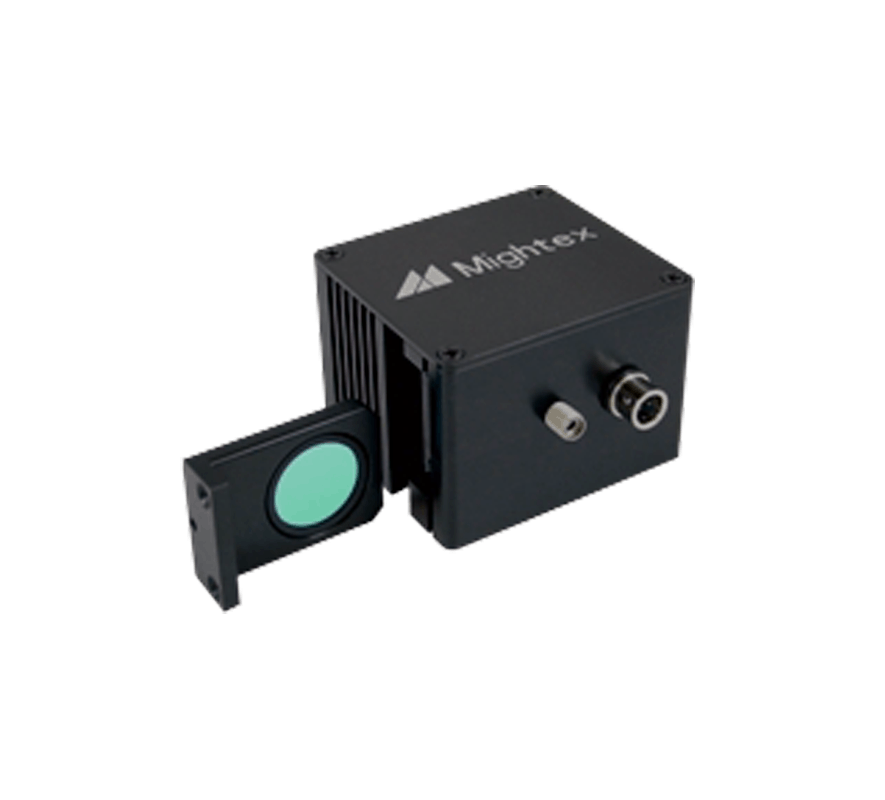

Mightex FFC-series filtered LED light sources employ the latest high-power LED technologies and a proprietary coupling optics to achieve maximum optical output power. Optical output is coupled into a fiber through a standard SMA fiber adaptor port (SMA fiber patch cords are sold separately). Users may insert an optical filter into the light source to tailor output spectrum and intensity. Example applications include fluorescence excitation with a bandpass filter, wavelength selection from a white LED, attenuating intensity with a neutral density filter, and polarized output with a polarizer.

Filters are not included in standard FFC products. Maximum filter diameter is 1”(25.4mm) and minimum diameter is 12mm. Maximum filter thickness is 5mm. Filters with diameters of 1” or 25mm can be directly loaded into the filter holder. Smaller filters may need an adapter.

FFC series also features a locking electrical connector for secured connection. FFC series are designed as a universal light source for general lab use and OEM applications. The one-piece machined housing features multiple mounting holes. All Mightex LED drivers such as the SLC series or other LED drivers and current sources can be used to drive the light sources.

To drive a FFC series LED source, one can use any one of the wide range of LED controllers Mightex has to offer:

Software controlled LED controllers; or

Manual LED drivers.

FEATURES

Allow insertion of optical filters

High output power

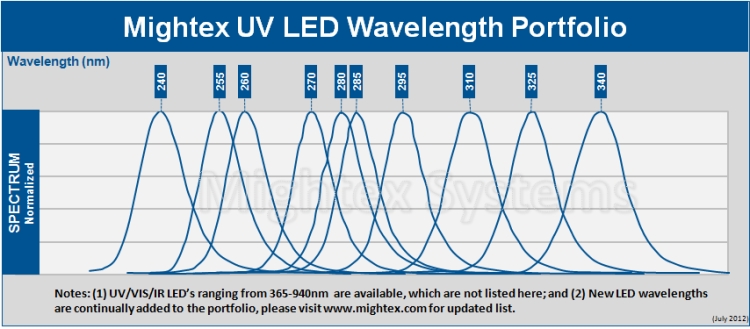

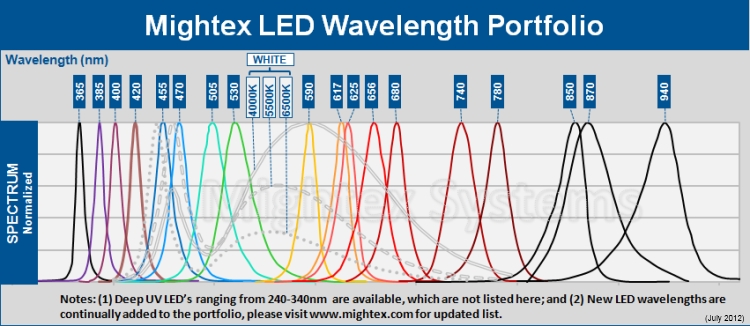

Broad wavelength selections in VIS, UV and NIR

SMA port for up to 1500micron fiber core

Interchangeable fiber patchcords.

Compact, machined metal housing with integrated heat sink

Multiple mounting features for lab and OEM applications

Locking electrical connector

APPLICATIONS

Microscopy

Fluorescence

Sensors

Semiconductor equipment

Testing instruments

Medical instruments

Machine vision

Specifications

1. Measured with a 400um, 0.22NA fiber. Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual output of any given LED may vary. Specifications are intended to be used as a guideline. Filters are not included in standard FFC products.

Discontinued Parts

1. 由于制造工藝和操作參數(shù)（如溫度和電流）的變化，任何給定 LED 的實際輸出可能會有所不同。規(guī)范旨在用作指導(dǎo)原則。

電氣引腳布局 （Type-A）
