Mightex High-Power Lightguide Coupled LED Sources Description：

Datasheet

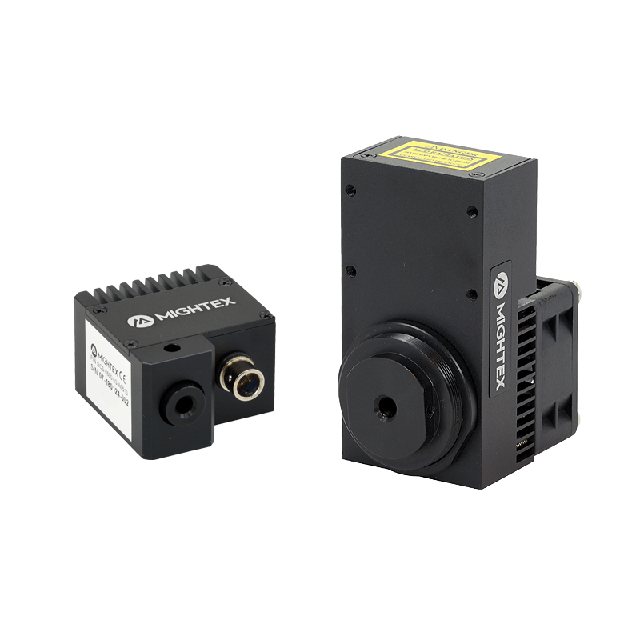

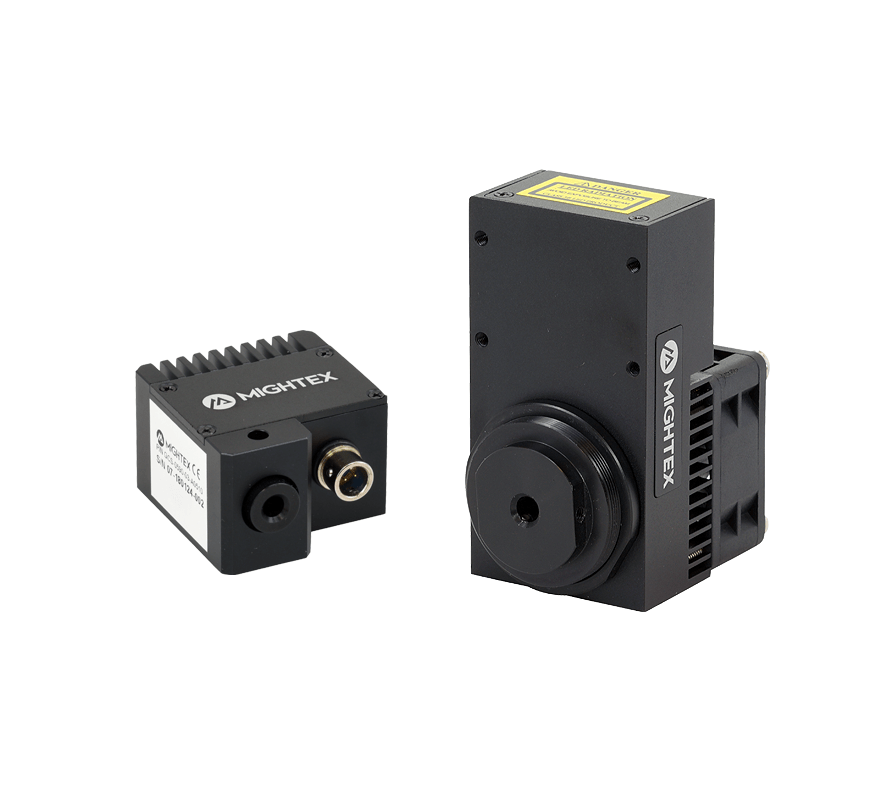

Mightex GCS-series high-power LED sources are designed for high-efficiency coupling of LED light into a liquid lightguide (LLG) or a fiber optic bundle. Virtually all lightguides with core diameters ranging from 3mm to 8mm can be used with the GCS-series light source. Please note that lightguides and adapters are sold separately. GCS series also features a locking electrical connector for secured connection. GCS series are designed as a universal light source for general lab use and OEM applications. All Mightex LED drivers such as the SLC series or other LED drivers and current sources can be used to drive the GCS-series light sources. The one-piece machined aluminum alloy housing features integrated heatsinks and multiple mounting holes.

Multi-chip LED emitters have been added to the product portfolio (Type-B). Some of these 7W to 15W LEDs have total optical power exceeding 1W, quadrupling the power of a single-chip LED (Type-A). Models with higher powers (i.e. Type-B with 7W and higher) feature a cooling fan, and have a different form factor compared to other models. Please examine the installation drawings carefully. Power supply for the cooling fan is included in the price of the LED sources.

To drive a GCS LED source, one can use any one of the wide range of LED controllers Mightex has to offer:

Software controlled LED controllers;

Manual LED drivers.

FEATURES

High output power

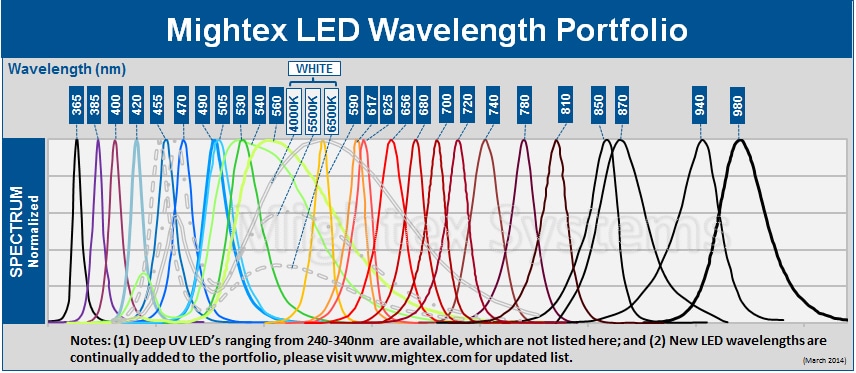

Broad wavelength selections in VIS, UV and NIR

Interchangeable liquid lightguides or fiber bundles

Compact, machined metal housing with integrated heat sink

Multiple mounting features for lab and OEM applications

Locking electrical connector

Locking electrical connector

Microscopy

Fluorescence

Machine vision

Sensors

Semiconductor equipment

Testing instruments

Medical instruments

Specifications

Type-A GCS (passively cooled with no cooling fan)
Type-B GCS (with a cooling fan)

Note: (1). “xxxxx” is the Lightguide Adapter code, see Lightguide Adapters table below (for Type-A GCS only); (2). Type-A, Type-B and Type-H LED sources have different installation drawings. Type-A does not include a cooling fan, whereas Type-B and -H does. When ordering an LED controller for a Type-B LED, please make sure to upgrade the AC/DC power adapter from the ‘standard’ 12V to 24V. For certain LED controllers, it is not recommended to mix Type-A and Type-B LEDs on the same controller. Please check controller specification to confirm. The control module designed for Type-H light sources are BLS-13000-1E or BLS-18000-1 (sold separately), which is paired with the suitable AC/DC power adapter and does not require separate upgrade; and (3). Measured at exiting end of a 1 meter long, 3mm-core 0.59 numerical aperture (NA) liquid light guide. Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual output of any given LED may vary. Specifications are intended to be used as a guideline.

Type-H GCS (high current, with a cooling fan)

Note: (1). Maximum CW output achievable with a BLS-13000-1 BioLED control module. Measured at exiting end of a 1 meter long, 3mm-core 0.59 numerical aperture (NA) liquid light guide. Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual output of any given LED may vary. Specifications are intended to be used as a guideline.

Discontinued Parts

Note: (1). “xxxxx” is the Lightguide Adapter code, see Lightguide Adapters table below (for Type-A GCS only); (2). Type-A, Type-B and Type-H LED sources have different installation drawings. Type-A does not include a cooling fan, whereas Type-B and -H does. When ordering an LED controller for a Type-B LED, please make sure to upgrade the AC/DC power adapter from the ‘standard’ 12V to 24V. For certain LED controllers, it is not recommended to mix Type-A and Type-B LEDs on the same controller. Please check controller specification to confirm. The control module designed for Type-H light sources are BLS-13000-1E or BLS-18000-1 (sold separately), which is paired with the suitable AC/DC power adapter and does not require separate upgrade; and (3). Measured at exiting end of a 1 meter long, 3mm-core 0.59 numerical aperture (NA) liquid light guide. Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual output of any given LED may vary. Specifications are intended to be used as a guideline.

Lightguide Adapters (for Type-A GCS only)

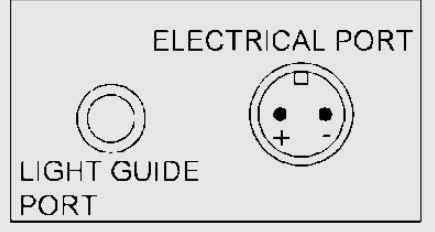

ELECTRICAL PIN LAYOUT (Type-A)
